For Models
Communication
Viking W-1000 Doorbox uses "half-duplex"
communication, allowing for high speaker and
microphone volume, without the possibility of
feedback

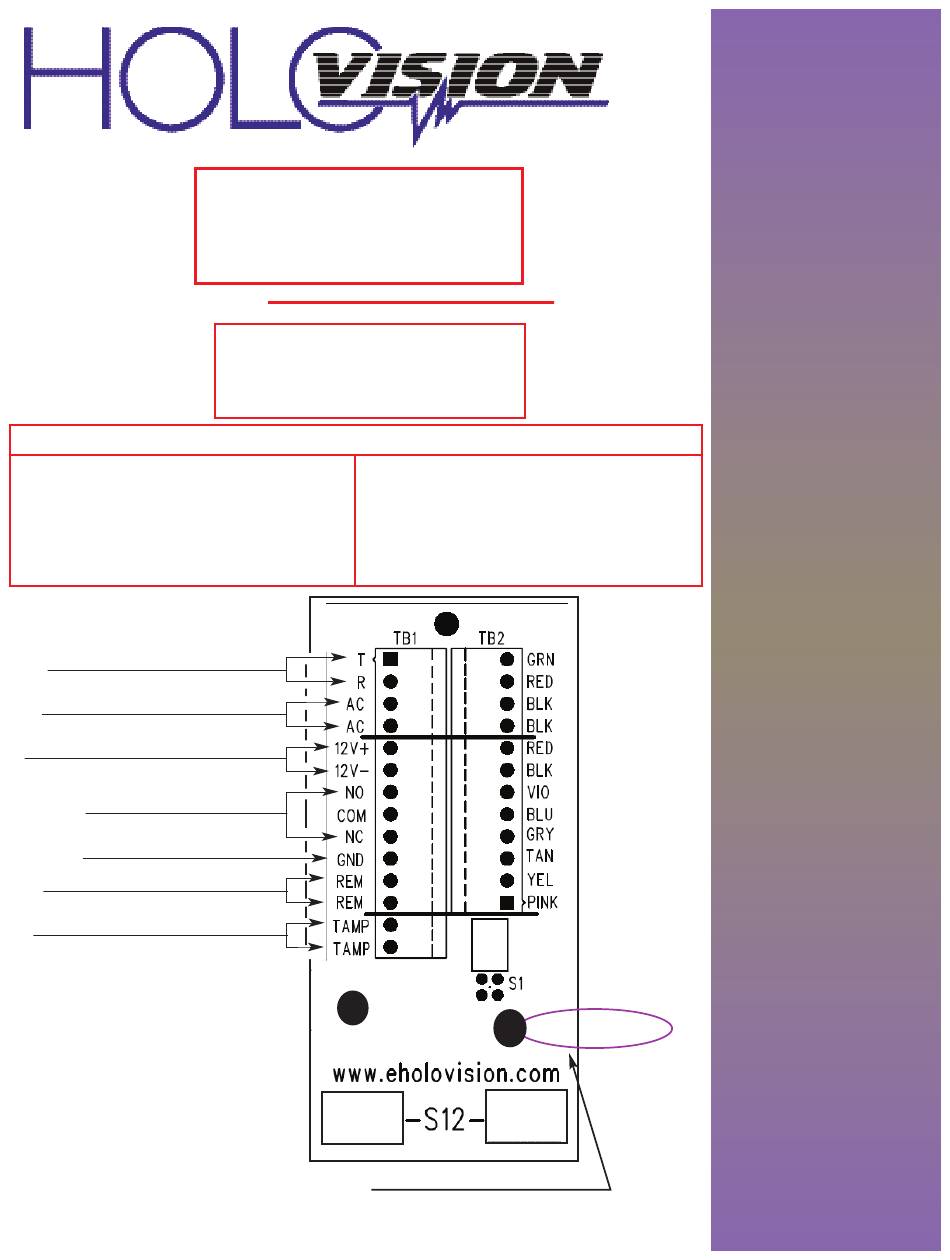

Intercom to W-1000 ( Not polarity senitive)
13.8 VAC (from C-1000B)
12 VDC input (for camera and keypad)
NO, COM, NC relay connections
Keypad case ground
Remote bypass terminals (activate relay)
Connect tamper switch to alarm (optional)
Manual Type 6.2.0.5-RF
Viking W-1000 with Essex
"S-12 Stand - Alone" Keypad
400-S12-VIK
403-S12-VIK
410-S12-VIK
Specifications
Access Control
Essex "stand-alone" 12 button keypad
1 relay plus 2 grounding outputs
(external relays required)
500 users
12 VDC power supply included
Cut for NO Contact Closure
401-S12-VIK
404-S12-VIK
411-S12-VIK
AC Loop for Strike
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-S12-VIK
Summary of Contents for HOLOVISION 400-S12-VIK
- Page 1 INSTALLATION INSTRUCTIONS Manual Type 6.2.0.5-RF Viking W-1000 with Essex “S-12 Stand - Alone” Keypad For Models 400-S12-VIK 401-S12-VIK 403-S12-VIK 404-S12-VIK 410-S12-VIK 411-S12-VIK Specifications Communication Access Control Viking W-1000 Doorbox uses “half-duplex” Essex “stand-alone” 12 button keypad communication, allowing for high speaker and...
- Page 2 Essex Keypad Wiring DC Out for Gate Strike VIKING Model C-1000B 13.8 VAC 1.25A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 NOTE: ‘’Talk Battery’’ switch 4 5 6 9 10 11 12 13 14 15 16 17 18 19 must be in “ON” position when the C-1000B is used w/o a CO line...
- Page 3 Essex Keypad Wiring Contact Closure for Gate Operation VIKING Model C-1000B 13.8 VAC 1.25A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 NOTE: ‘’Talk Battery’’ switch must be in “ON” position 4 5 6 9 10 11 12 13 14 15 16 17 18 19 when the C-1000B is...
- Page 4 Pick up the phone (you will hear a double beep - indicating that you have accessed the PROGRAMMING MODE). You can now Touch Tone program the features listed below. SEE HOLOVISION Programming NOTES. When Finished, hang up and move DIP SWITCH 2 to the OFF position Slide the TALK BATTERY switch back to the OFF position...
- Page 5 HOLOVISION’s Programming Notes Doorstrike Activation Time - Generally the default setting of 1/2 sec is fine. The momentary contact can open a motorized gate, or activate the relay on the “S-12” keypad. For other keypad types this will be changed. Doorbell Mode (*1)- phones will not ring when doorbell is pushed.
-
Page 6: Green Led
Programming the Essex Keypad Set Keypad Illumination to ON ALL OF THE TIME STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad . V = 12 Apply 12 VDC power to red and black wires Quadruple Beep Flash Solid... - Page 7 Programming the Essex Keypad Set User Codes STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. Master Code “123” is used as an example. 1 1 2 3 Enter Double Beep Slow Flash Solid Enter Double Beep...
- Page 8 Programming the Essex Keypad Deleting User Codes - using User Code/PIN STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. In this example, the Master Code is 123 1 1 2 3 Enter Double Beep Slow Flash Solid...
- Page 9 Programming the Essex Keypad Reset Keypad to Factory Defaults--- This is not normally necessary, but can be done as follows STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad Apply 12 VDC power to red and black wires ONLY Quadruple Beep Flash Solid...
- Page 10 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
