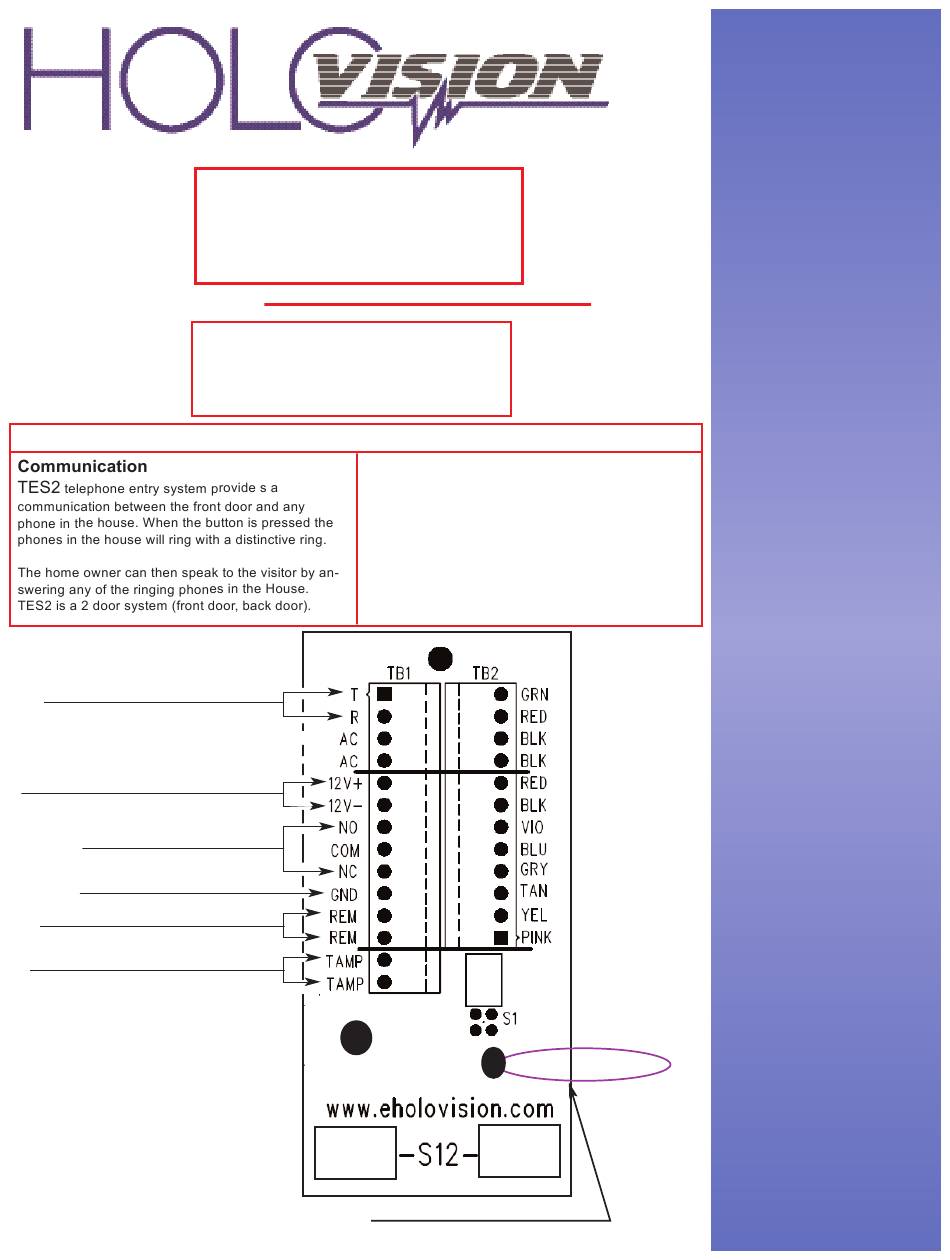

Intercom to TES2 Main (Polarity senitive)
12 VDC input (for camera and keypad)
NO, COM, NC relay connections
Keypad case ground
Remote bypass terminals (activate relay)
Connect tamper switch to alarm (optional)
Manual Type 6.2.0.7-RF
TES2 with Essex
"S-12 Stand - Alone" Keypad
401-S12-TES2
404-S12-TES2
411-S12-TES2
Specifications
Access Control
Essex "stand-alone" 12 button keypad
1 relay plus 2 grounding outputs
(external relays required)
500 users
12 VDC power supply included
Cut for NO Contact Closure
AC Loop for Strike
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-S12-TES2
Summary of Contents for HOLOVISION 400-S12-TES2
- Page 1 INSTALLATION INSTRUCTIONS Manual Type 6.2.0.7-RF TES2 with Essex “S-12 Stand - Alone” Keypad For Models 400-S12-TES2 401-S12-TES2 403-S12-TES2 404-S12-TES2 410-S12-TES2 411-S12-TES2 Specifications Access Control Essex “stand-alone” 12 button keypad 1 relay plus 2 grounding outputs (external relays required) 500 users...
- Page 2 TES2 and S12 Keypad Wiring DC Out for Strike Door 1 Door 2 No Ring Jumper NC1 C NO1 NC2 C NO2 NOTE: Voltage from telephones is not necessary for the system to work. (See note ‘‘No CO operation”). The Door Door connection between the main board...
- Page 3 TES2 and S12 Keypad Wiring DC Out for Mag Lock Door 1 Door 2 No Ring Jumper NC1 C NO1 NC2 C NO2 NOTE: Voltage from telephones is not necessary for the system to work. (See note ‘‘No CO operation”). The connection between the main board Door Door...
- Page 4 TES2 & S12 Keypad Wiring N/O Relay Out for Gate Door 1 Door 2 No Ring Jumper NC1 C NO1 NC2 C NO2 NOTE: Voltage from telephones is not necessary for the system to work. (See note ‘‘No CO operation”). The Door Door connection between the main board...
-
Page 5: Green Led
Programming the Essex Keypad Set Keypad Illumination to ON ALL OF THE TIME STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad . V = 12 Apply 12 VDC power to red and black wires Quadruple Beep Flash Solid... - Page 6 Programming the Essex Keypad Set User Codes STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. Master Code “123” is used as an example. Enter 1 1 2 3 Double Beep Slow Flash Solid Enter Double Beep...
- Page 7 Programming the Essex Keypad Deleting User Codes - using User Code/PIN STEP ACTION BEEP Red LED Green LED The Master Code is necessary to do this step. In this example, the Master Code is 123 1 1 2 3 Enter Double Beep Slow Flash Solid...
- Page 8 Programming the Essex Keypad Reset Keypad to Factory Defaults--- This is not normally necessary, but can be done as follows STEP ACTION BEEP Red LED Green LED Remove power Jumper the “CONFIG” pins on the rear of the keypad Apply 12 VDC power to red and black wires ONLY Quadruple Beep Flash Solid...
- Page 9 When the “NO RING” option is selected, the phones will not ring. When the homeowner hears the external door chime (not supplied by Holovision), and then picks up any telephone, they will be automatically connected to the door phone.
-
Page 10: Call Waiting
TES2 Telephone Entry System Door Ring Patterns Door 1 3 groups of 3 rings (ring ring ring), (ring ring ring), (ring ring ring). Door 2 3 groups of 2 rings (ring ring), (ring ring), (ring ring). Operation of TES2 ANSWER THE CALL When you heat the distinctive ring pattern selected above: within 10 seconds - simply pick up any telephone to be connected to the door speaker which initiated the call.
