For Models
Communication
For use with all Panasonic KSUs with door phone
card. This unit is a replacement for the Panasonic
KXT-30865 door phone.

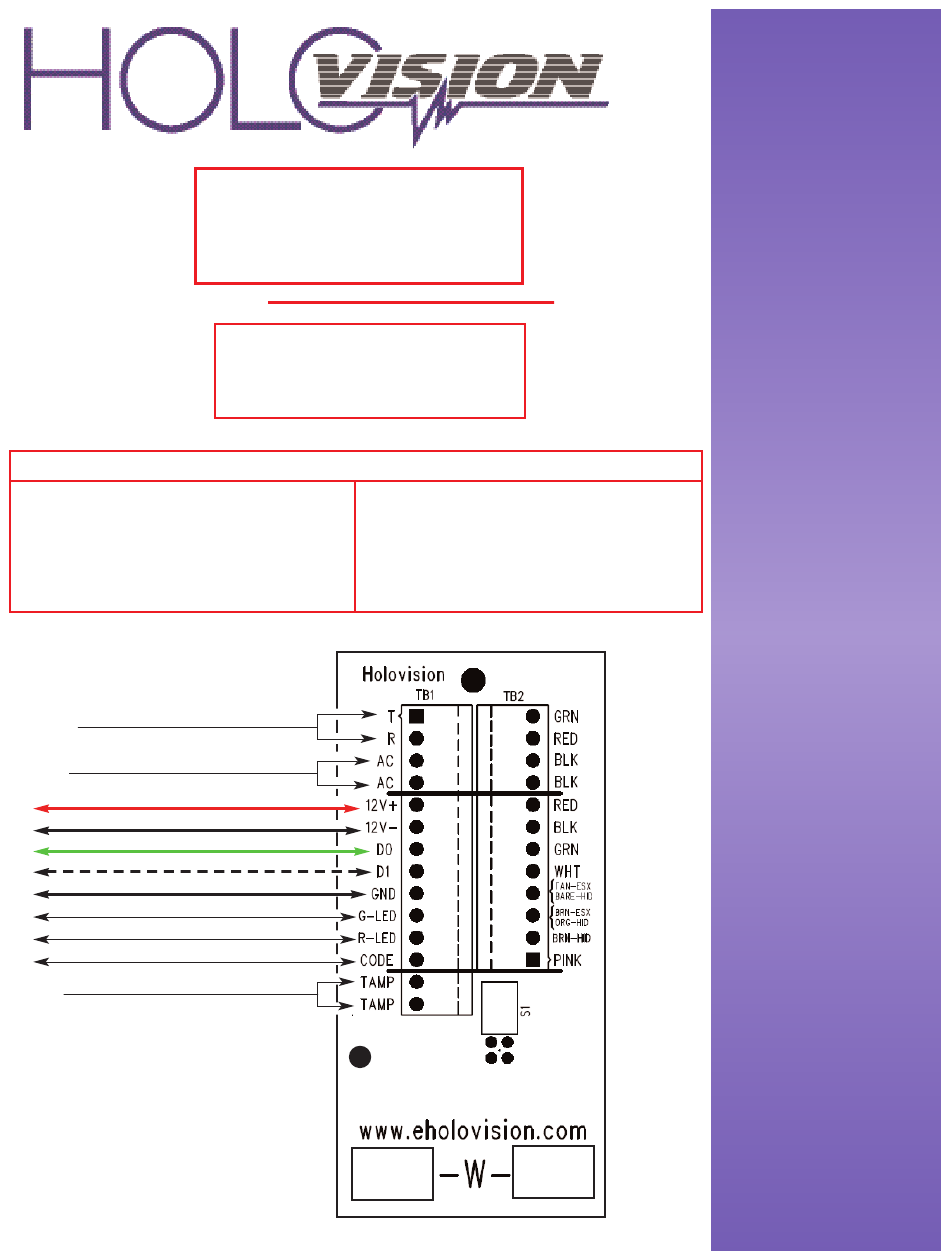

Intercom to Panasonic KSU
Not Used
Red 12+ to Wiegand Controller
Black 12- to Wiegand Controller
Green Data 0 to Wiegand Controller
White Data 1 to Wiegand Controller
Ground/Drain
For Green LED control
For Red LED control
For Site Code Modification
Connect tamper switch to alarm (optional)
Manual Type 6.4.0.1-RF
Panasonic Compatible Intercom
400-W-PAN
403-W-PAN
410-W-PAN
Specifications
Access Control
Essex KPT-26TI 26 bit Wiegand Keypad
400 Series "W" Junction Board
401-W-PAN
404-W-PAN
411-W-PAN
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Related Manuals for HOLOVISION 401-W-PAN
Summary of Contents for HOLOVISION 401-W-PAN
-
Page 1: Specifications
INSTALLATION INSTRUCTIONS Manual Type 6.4.0.1-RF Panasonic Compatible Intercom For Models 400-W-PAN 401-W-PAN 403-W-PAN 404-W-PAN 410-W-PAN 411-W-PAN Specifications Communication Access Control For use with all Panasonic KSUs with door phone Essex KPT-26TI 26 bit Wiegand Keypad card. This unit is a replacement for the Panasonic KXT-30865 door phone. - Page 2 Essex Keypad and PAN wiring Strike 1 To Phones Door 1 To Wiegand Controller Page 2 Type 6.4.0.1-RF...
