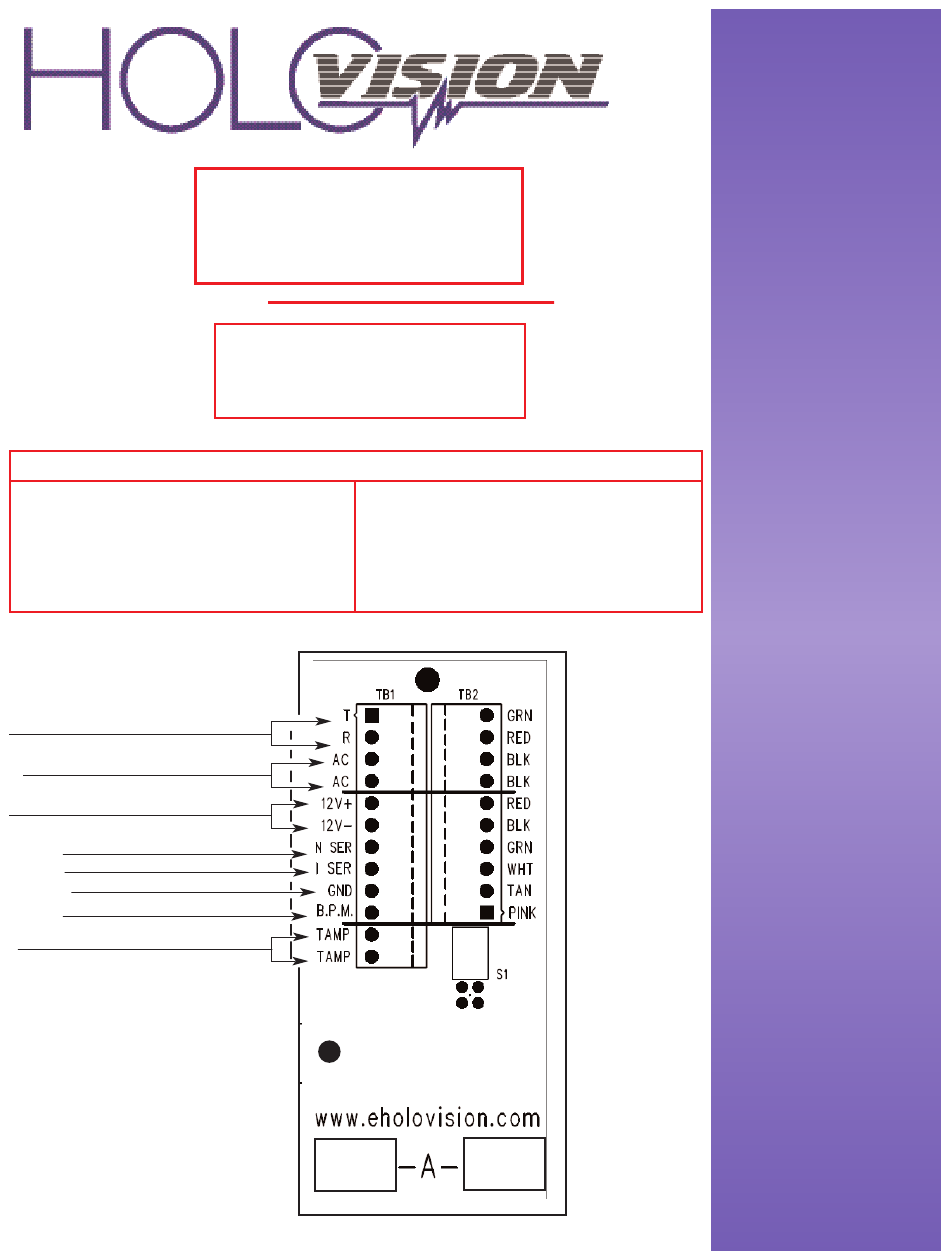

12 VDC input (for camera and keypad) 501 E. Goetz Ave. Normal Serial Santa Ana, Ca 92707 Inverted Serial Ground Bit Parity Mode www.eholovision.com Connect tamper switch to alarm (optional) Ph. 714-434-6904 Fax 800-362-0002 HOLOVISION 400 Series ‘’A’’ Junction Board...
Page 2
ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
Page 4
Programming Mode - E-10 is factory pre-set, and normally does not need re-programming. Refer to E-10 manual (Viking document which is included) for details Holovision recommends the default settings on the dip switches. See the E-10 or E-40 manual for more information. Instructions for C-2000B Controller...
Page 5
Instructions for C-2000 Controller The C-2000 controller is factory set to work right out of the box. If customization of the default settings is required, see the steps listed below. Refer to the C-2000 manual for additional options Access Programming Mode (Local Access) STEP ACTION Move DIP switch 2 from OFF to ON position.
Page 6
