For Models
Communication
For use with all Panasonic KSUs with door phone
card. This unit is a replacement for the Panasonic
KXT-30865 door phone.
Intercom to PAN (Not polarity senitive)
Not Used
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
Manual Type 6.5.0.1-RF
Panasonic Compatible
with Essex "ASCII" Keypad
400-A-PAN
403-A-PAN
410-A-PAN
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
400 Series ''A'' Junction Board
401-A-PAN
404-A-PAN
411-A-PAN
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-A-PAN
Summary of Contents for HOLOVISION 400-A-PAN
-
Page 1: Specifications

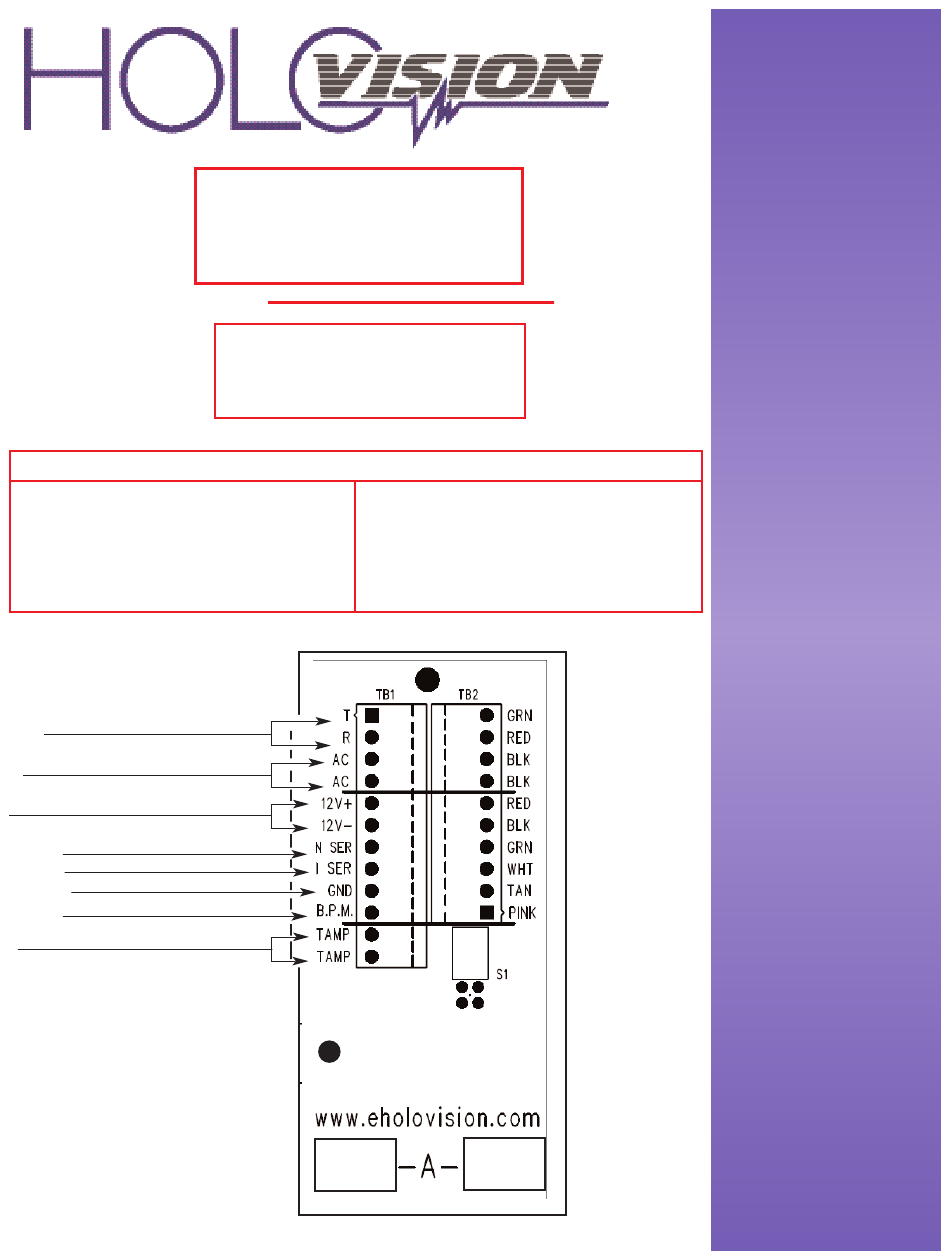

INSTALLATION INSTRUCTIONS Manual Type 6.5.0.1-RF Panasonic Compatible with Essex “ASCII” Keypad For Models 400-A-PAN 401-A-PAN 403-A-PAN 404-A-PAN 410-A-PAN 411-A-PAN Specifications Communication Access Control For use with all Panasonic KSUs with door phone Essex K1-26I Keypad field configurable to ASCII, card. This unit is a replacement for the Panasonic Wiegand and others. - Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 PAN Wiring Diagram TO GATE CONTROLLER OR “REMOTE TERMINALS” ON ASCII CONTROLLER Strike 1 To Phones Door 1 13.8 12vDC For Camera 1.5A To Automation System Relay NO & COM To Automation System Page 3 TYPE 6.5.0.1-RF...
- Page 4 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
