For Models
Communication
Cyberdata VoIP Intercom for use with IPBx
Not Used
Not Used
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
Manual Type 6.5.0.10-RF
VoIP
with Essex "ASCII" Keypad
400-A-VoIP
403-A-VoIP
410-A-VoIP
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
VoIP intercom has relay output

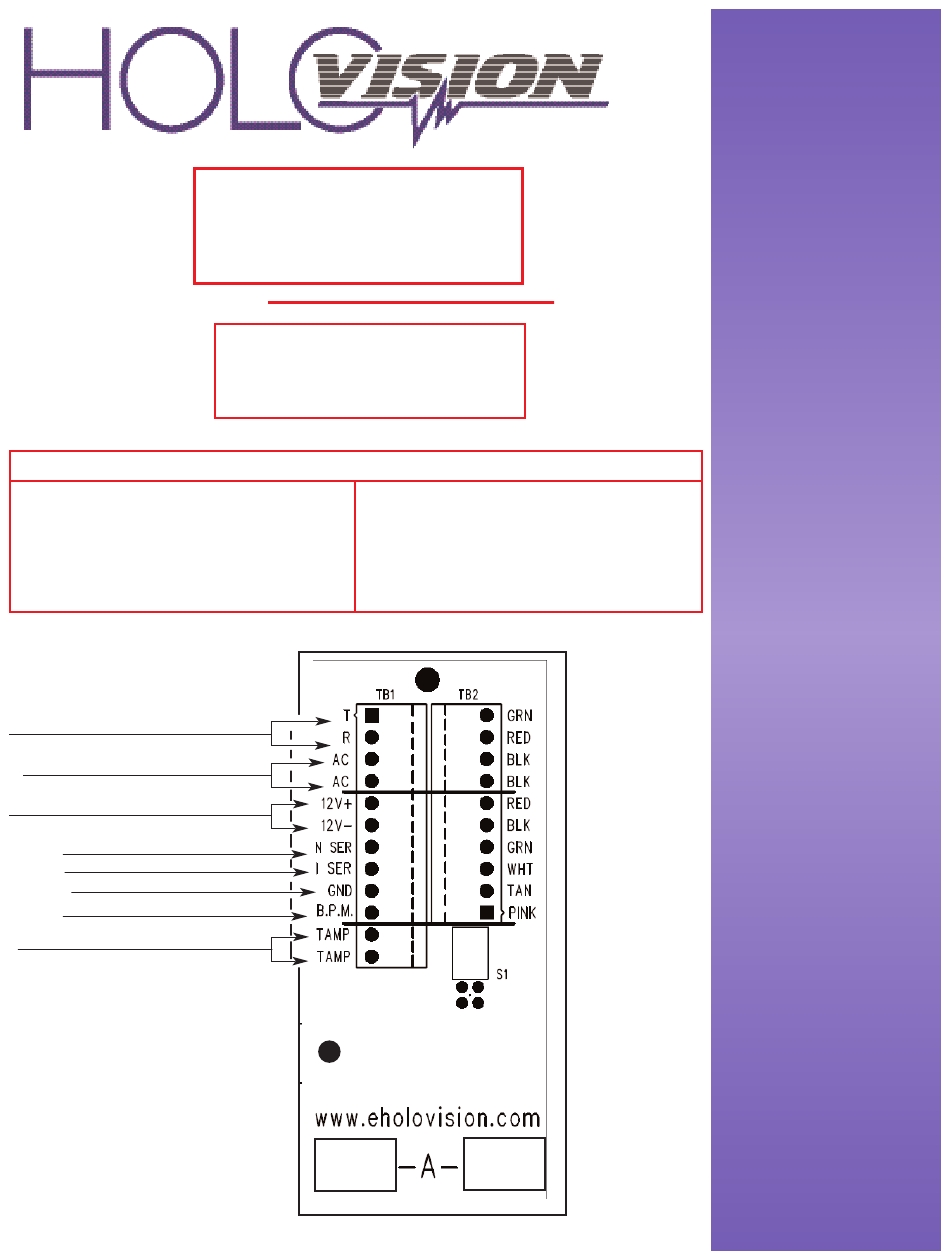

400 Series ''A'' Junction Board
401-A-VoIP
404-A-VoIP
411-A-VoIP
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-A-VoIP
Summary of Contents for HOLOVISION 400-A-VoIP
-
Page 1: Specifications
INSTALLATION INSTRUCTIONS Manual Type 6.5.0.10-RF VoIP with Essex “ASCII” Keypad For Models 400-A-VoIP 401-A-VoIP 403-A-VoIP 404-A-VoIP 410-A-VoIP 411-A-VoIP Specifications Access Control Communication Essex K1-26I Keypad field configurable to ASCII, Cyberdata VoIP Intercom for use with IPBx Wiegand and others. VoIP intercom has relay output... - Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 VoIP Wiring Diagram To Router ..RJ-45 Push to hear IP address TO GATE CONTROLLER OR “REMOTE TERMINALS” ON ASCII 5VDC - 1000ma Ground CONTROLLER Door position input Door position input Mic connection (on rear) Please Review VOIP module documentation and download the VOIP discovery utility at : Speaker connection (on rear) 1.
- Page 4 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
