For Models
Communication
For use with all Panasonic KSUs with door phone
card. This unit is a replacement for the Panasonic
KX-T7775 door phone.

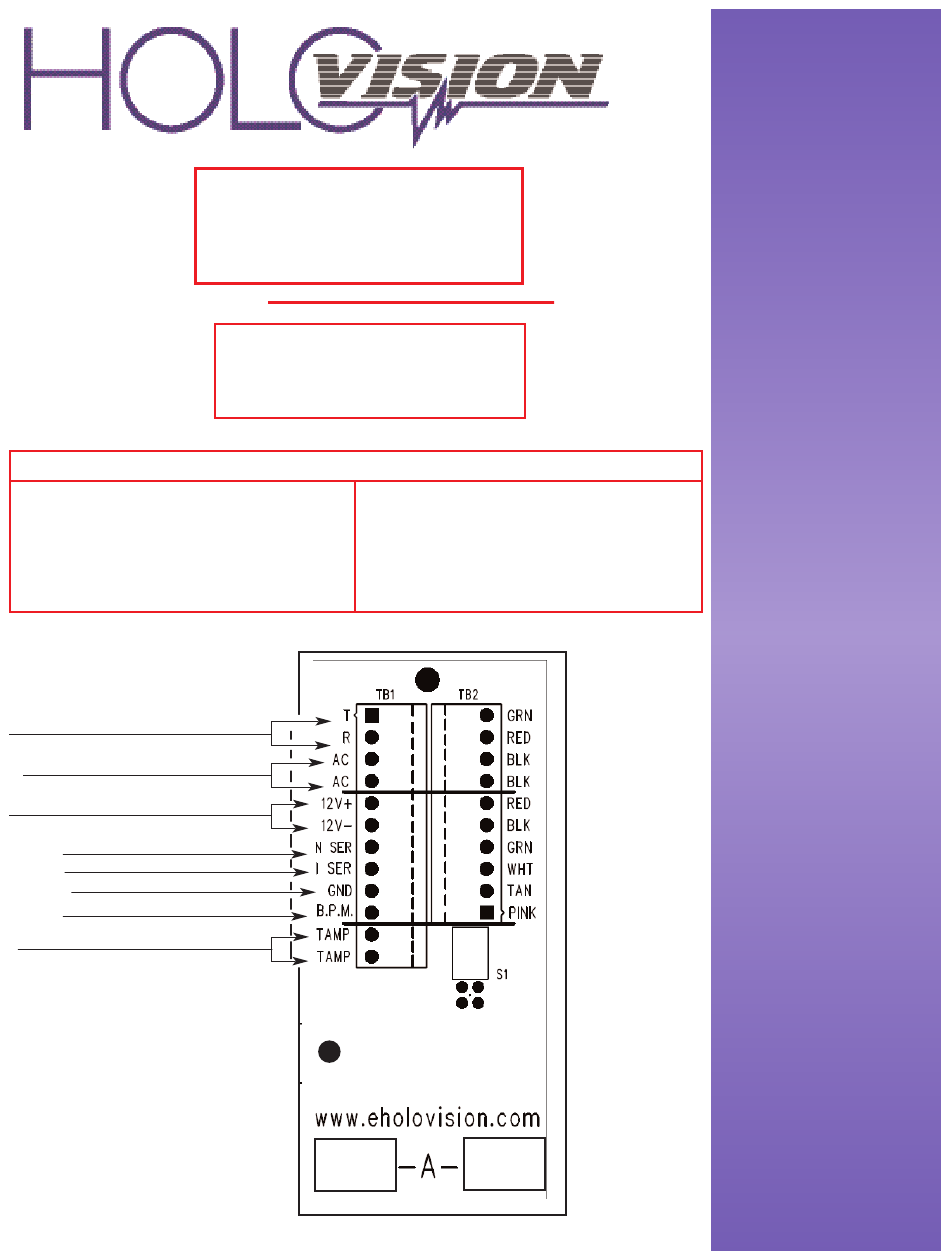

Intercom to KX-T7775 (Not polarity sensitive)
Not Used
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
Manual Type 6.5.0.8-RF
xxx
with Essex "ASCII" Keypad
400-A-PAN2
403-A-PAN2
410-A-PAN2
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
Panasonic KSU door phone card has relay outputs
400 Series ''A'' Junction Board
401-A-PAN2
404-A-PAN2
411-A-PAN2
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Related Manuals for HOLOVISION 401-A-PAN2
Summary of Contents for HOLOVISION 401-A-PAN2
-
Page 1: Specifications
INSTALLATION INSTRUCTIONS Manual Type 6.5.0.8-RF with Essex “ASCII” Keypad For Models 400-A-PAN2 401-A-PAN2 403-A-PAN2 404-A-PAN2 410-A-PAN2 411-A-PAN2 Specifications Communication Access Control For use with all Panasonic KSUs with door phone Essex K1-26I Keypad field configurable to ASCII, card. This unit is a replacement for the Panasonic Wiegand and others. - Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 PAN2 Wiring Diagram TO GATE CONTROLLER OR Strike 1 “REMOTE To Phones TERMINALS” ON ASCII Door 1 CONTROLLER 9VDC NOTE: This connection is POLARITy SENSITIVE Refer to manual for details For Camera 12vDC 1.5A To Automation System Relay NO & COM To Automation System Page 3 TyPE 6.5.0.8-RF...
- Page 4 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
