For Models
Communication
Intercom to C-1000B (Not polarity senitive)
13.8 VAC (from C-1000B)
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)

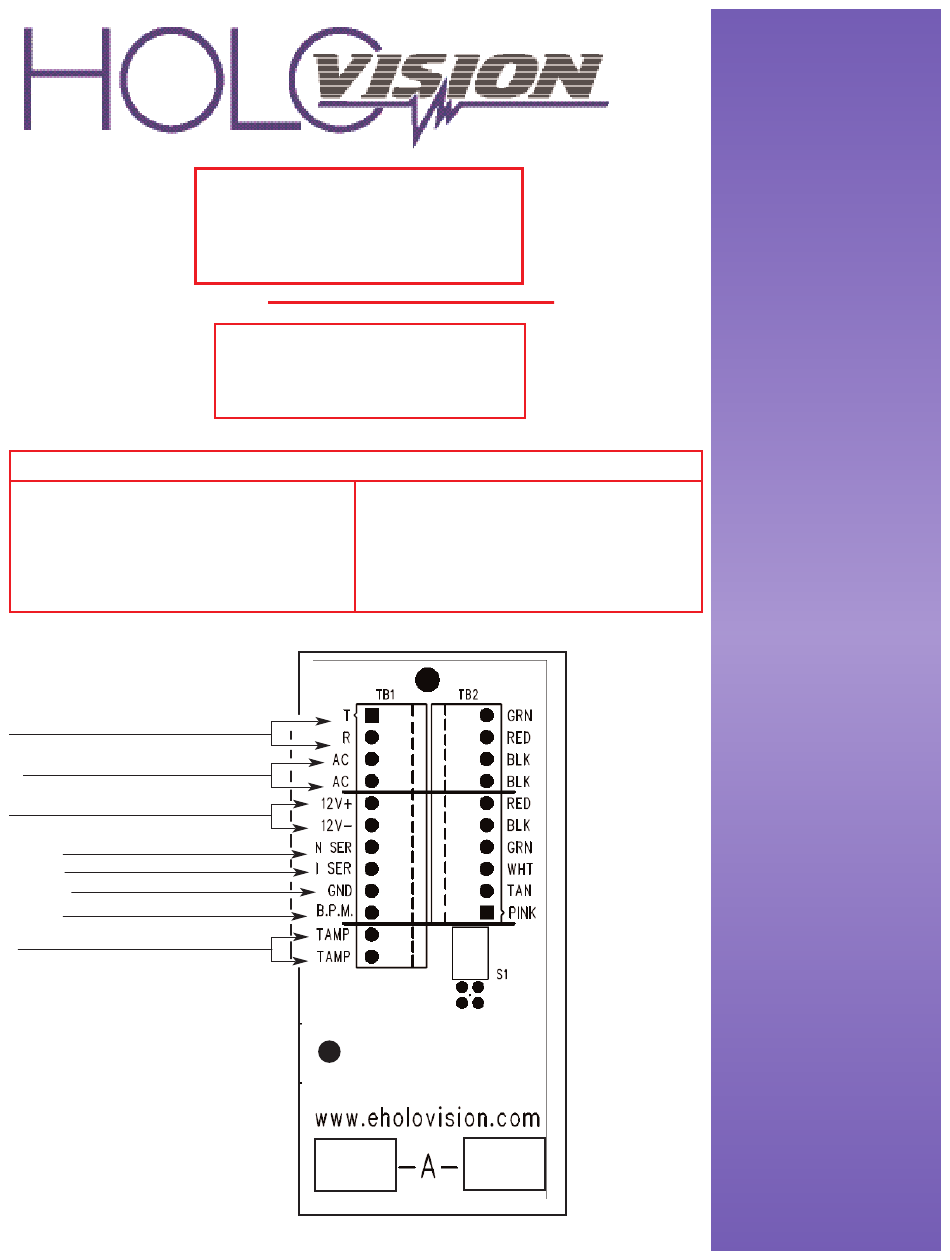

Manual Type 6.5.0.5-RF
Viking W-1000 & C-1000B Controller
with Essex "ASCII" Keypad
400-A-VIK
403-A-VIK
410-A-VIK
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
400 Series ''A'' Junction Board
401-A-VIK
404-A-VIK
411-A-VIK
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-A-VIK
Summary of Contents for HOLOVISION 400-A-VIK
-
Page 1: Specifications
INSTALLATION INSTRUCTIONS Manual Type 6.5.0.5-RF Viking W-1000 & C-1000B Controller with Essex “ASCII” Keypad For Models 400-A-VIK 401-A-VIK 403-A-VIK 404-A-VIK 410-A-VIK 411-A-VIK Specifications Communication Access Control Essex K1-26I Keypad field configurable to ASCII, Wiegand and others. Intercom to C-1000B (Not polarity senitive) 13.8 VAC (from C-1000B) - Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 Viking C-1000B Wiring Diagram VIKING Model C-1000B 13.8 VAC 1.25A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 4 5 6 9 10 11 12 13 14 15 16 17 18 19 Incoming CO TO GATE ...
- Page 4 Pick up the phone (you will hear a double beep - indicating that you have accessed the PROGRAMMING MODE). You can now Touch Tone program the features listed below. SEE HOLOVISION Programming NOTES. When Finished, hang up and move DIP SWITCH 2 to the OFF position Slide the TALK BATTERY switch back to the OFF position...
- Page 5 HOLOVISION’s Programming Notes Doorstrike Activation Time - Generally the default setting of 1/2 sec is fine. The momentary contact can open a motorized gate, or activate the relay on the “S-12” keypad. For other keypad types this will be changed. Doorbell Mode (*1)- phones will not ring when doorbell is pushed.
- Page 6 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
