For Models
Communication
Cyberdata VoIP Intercom for use with IPBx
Not Used
Not Used
Red 12+ to Wiegand Controller
Black 12- to Wiegand Controller
Green Data 0 to Wiegand Controller
White Data 1 to Wiegand Controller
Ground/Drain
For Green LED control
For Red LED control
For Site Code Modification
Connect tamper switch to alarm (optional)
Manual Type 6.4.0.10-RF
Cyber Data VoIP
with Essex Wiegand Keypad
400-W-VoIP
403-W-VoIP
410-W-VoIP
Specifications
Access Control
Essex KPT-26TI 26 bit Wiegand Keypad
VoIP card has relay output

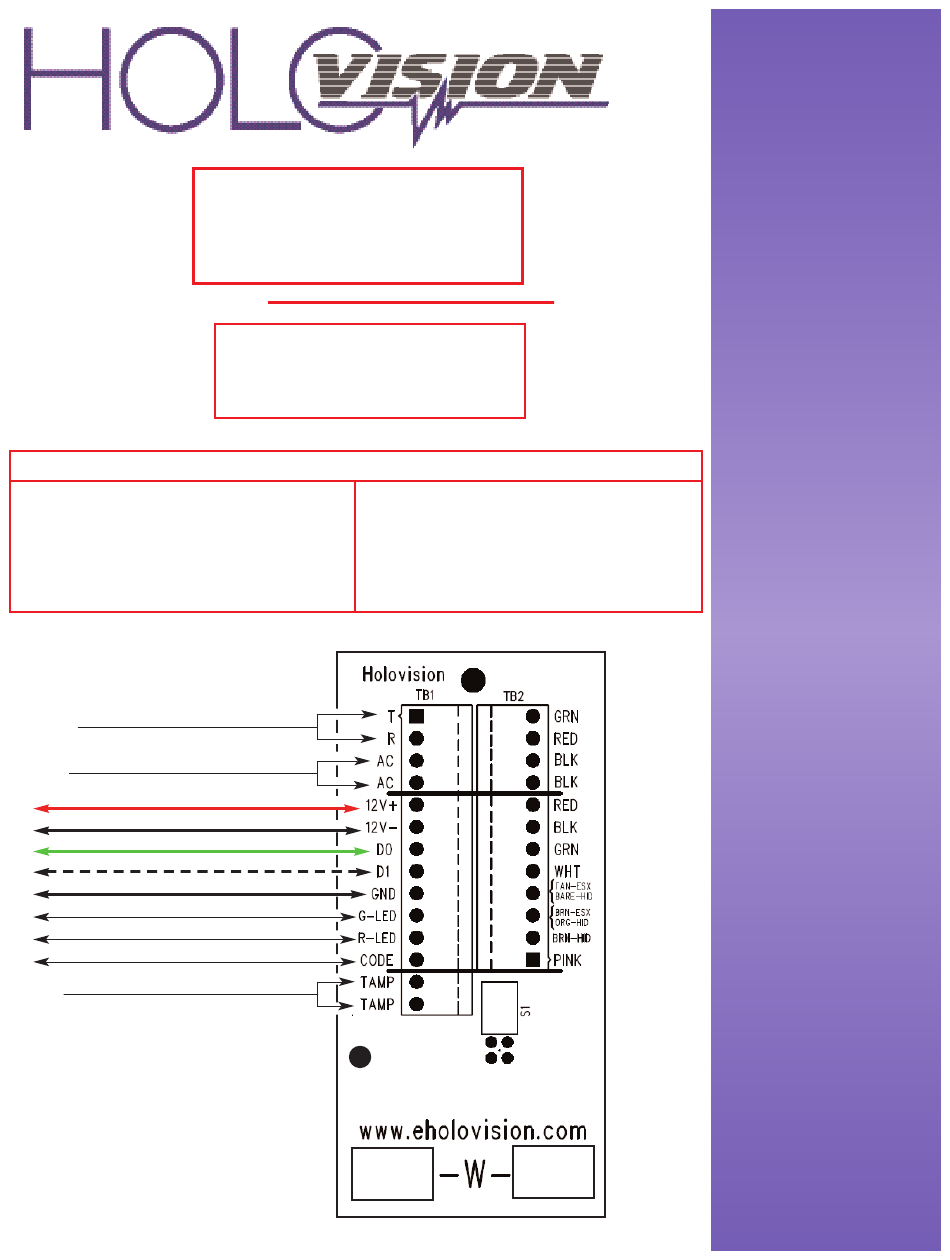

400 Series "W" Junction Board
401-W-VoIP
404-W-VoIP
411-W-VoIP
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 404-W-VoIP
Summary of Contents for HOLOVISION 404-W-VoIP
-
Page 1: Specifications
INSTRUCTIONS Manual Type 6.4.0.10-RF Cyber Data VoIP with Essex Wiegand Keypad For Models 400-W-VoIP 401-W-VoIP 403-W-VoIP 404-W-VoIP 410-W-VoIP 411-W-VoIP Specifications Access Control Communication Essex KPT-26TI 26 bit Wiegand Keypad Cyberdata VoIP Intercom for use with IPBx VoIP card has relay output... - Page 2 VoIP Wiring Diagram To Router ..RJ-45 Push to hear IP address To Remote Input on Wiegand Controller 5VDC - 1000ma Ground or to Gate Motor Door position input Door position input Please Review VOIP module documentation and download the VOIP Mic connection (on rear) discovery utility at : Speaker connection (on rear)
