Communication
TES2 telephone entry system provides a
communication link between the front door and every
phone in the house. When the button is pressed, the
phones in the house will ring with a distinctive ring.
The home owner can then speak to the visitor by answer-
ing any of the ringing phones in the House. TES2 is a 2
door system (front door, back door).

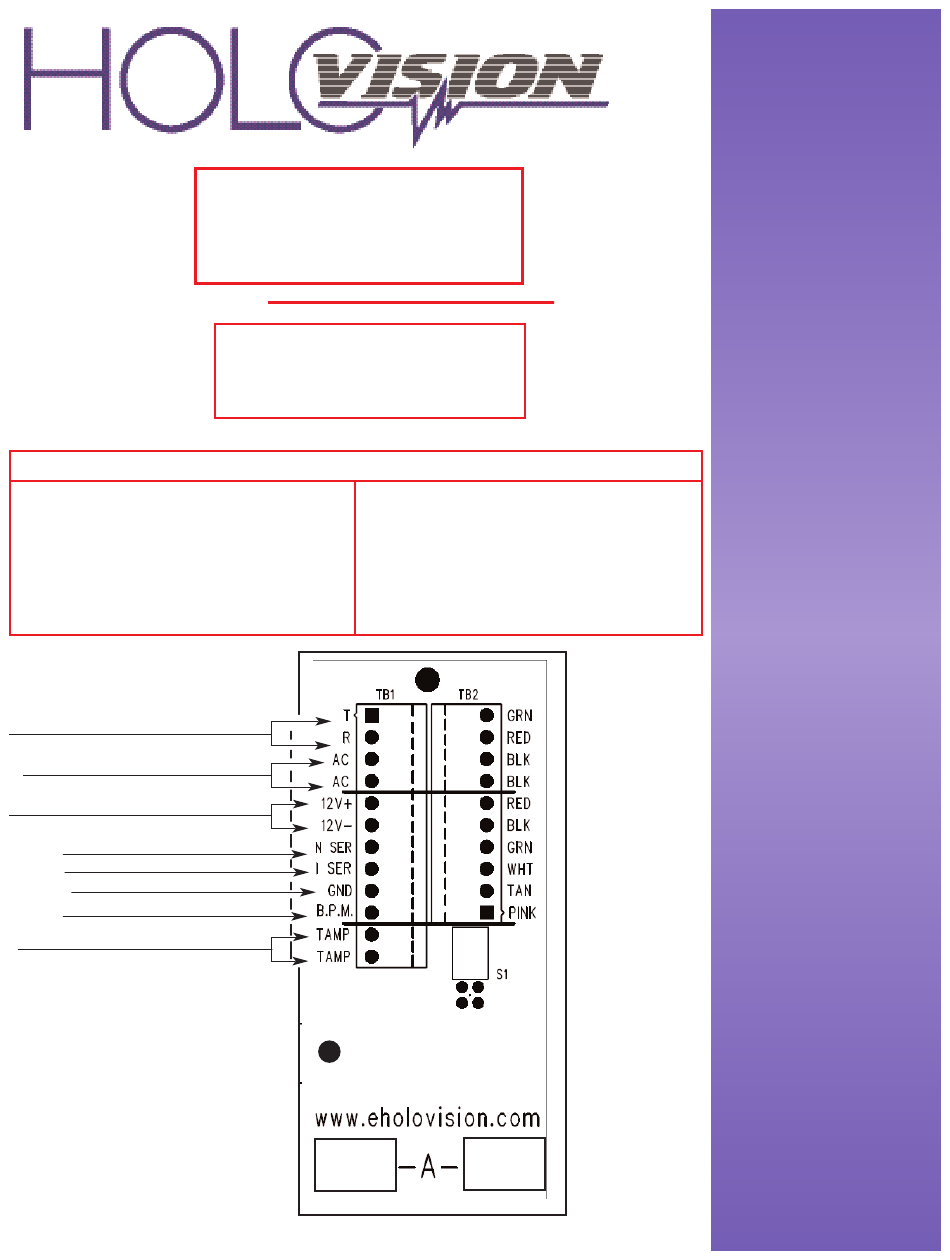

Intercom to TES2 (Polarity sensitive)
Not Used
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
Manual Type 6.5.0.7-RF
TES2
with Essex "ASCII" Keypad
400-A-TES2
403-A-TES2
410-A-TES2
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
TES2 can open 2 doors with optional T-RLY
400 Series ''A'' Junction Board
401-A-TES2
404-A-TES2
411-A-TES2
INSTALLATION
INSTRUCTIONS
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HOLOVISION 400-A-TES2
Summary of Contents for HOLOVISION 400-A-TES2
- Page 1 INSTALLATION INSTRUCTIONS Manual Type 6.5.0.7-RF TES2 with Essex “ASCII” Keypad For Models 400-A-TES2 401-A-TES2 403-A-TES2 404-A-TES2 410-A-TES2 411-A-TES2 Specifications Communication Access Control TES2 telephone entry system provides a Essex K1-26I Keypad field configurable to ASCII, communication link between the front door and every Wiegand and others.
- Page 2 ASCII Connection to Crestron or HAI 400 The red LED is normally on all of the Automation System Relays time. When a valid code is entered, the relay controlling the LEDs would close, (Typical of Crestron or HAI) and the green light would go on Gate Control Red Green LED control (momentarily).
- Page 3 Door 1 Door 2 NC1 C NO1 NC2 C NO2 No Ring Jumper Door Door No Co Jumper Line House Use jumper in exernal Phones phone line is not used ..T1 R1 T2 R2 NOTE: Voltage from telephones is not necessary for the system to work.
- Page 4 When the “NO RING” option is selected, the phones will not ring. When the homeowner hears the external door chime (not supplied by Holovision), and then picks up any telephone, they will be automatically connected to the door phone.
- Page 5 TES2 Telephone Entry System Door Ring Patterns Door 1 3 groups of 3 rings (ring ring ring), (ring ring ring), (ring ring ring). Door 2 3 groups of 2 rings (ring ring), (ring ring), (ring ring). Operation of TES2 ANSWER THE CALL When you heat the distinctive ring pattern selected above: within 10 seconds - simply pick up any telephone to be connected to the door speaker which initiated the call.
- Page 6 501 E. Goetz Ave. Santa Ana, Ca 92707 Ph. 714-434-6904 Fax 800-362-0002 www.eholovision.com...
