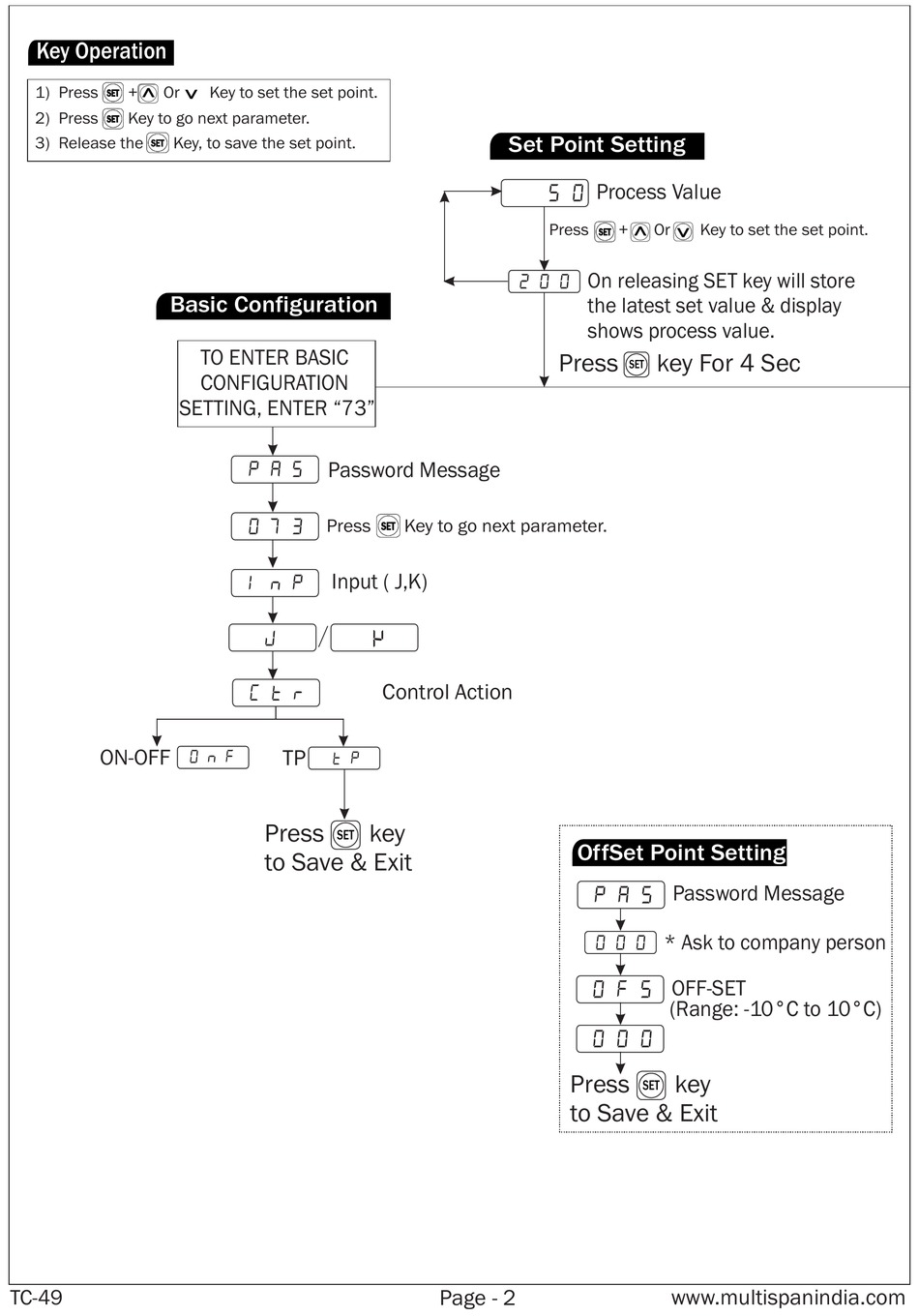

Key Operation
1) Press
+
Or
SET
SET
2) Press
Key to go next parameter.
SET
SET
3) Release the
Key, to save the set point.
SET
Basic Configuration
SETTING, ENTER "73"
ON-OFF
TC-49
Key to set the set point.
TO ENTER BASIC
CONFIGURATION
P A S
Password Message
0 7 3
Press
Input ( J,K)
I N P
J
C T R
O N F
TP
T P
Press
SET
to Save & Exit
Set Point Setting
5 0
2 0 0
Key to go next parameter.
SET
SET
Control Action
key
Page - 2
Process Value
Press
+
Or
Key to set the set point.
SET
SET
On releasing SET key will store
the latest set value & display
shows process value.
Press
key For 4 Sec
SET
OffSet Point Setting
Password Message
P A 5
0 0 0
* Ask to company person
OFF-SET
O F S
(Range: -10°C to 10°C)
O 0 0
Press
key
SET
to Save & Exit
www.multispanindia.com
