PV = Process Value
SV = Set Value

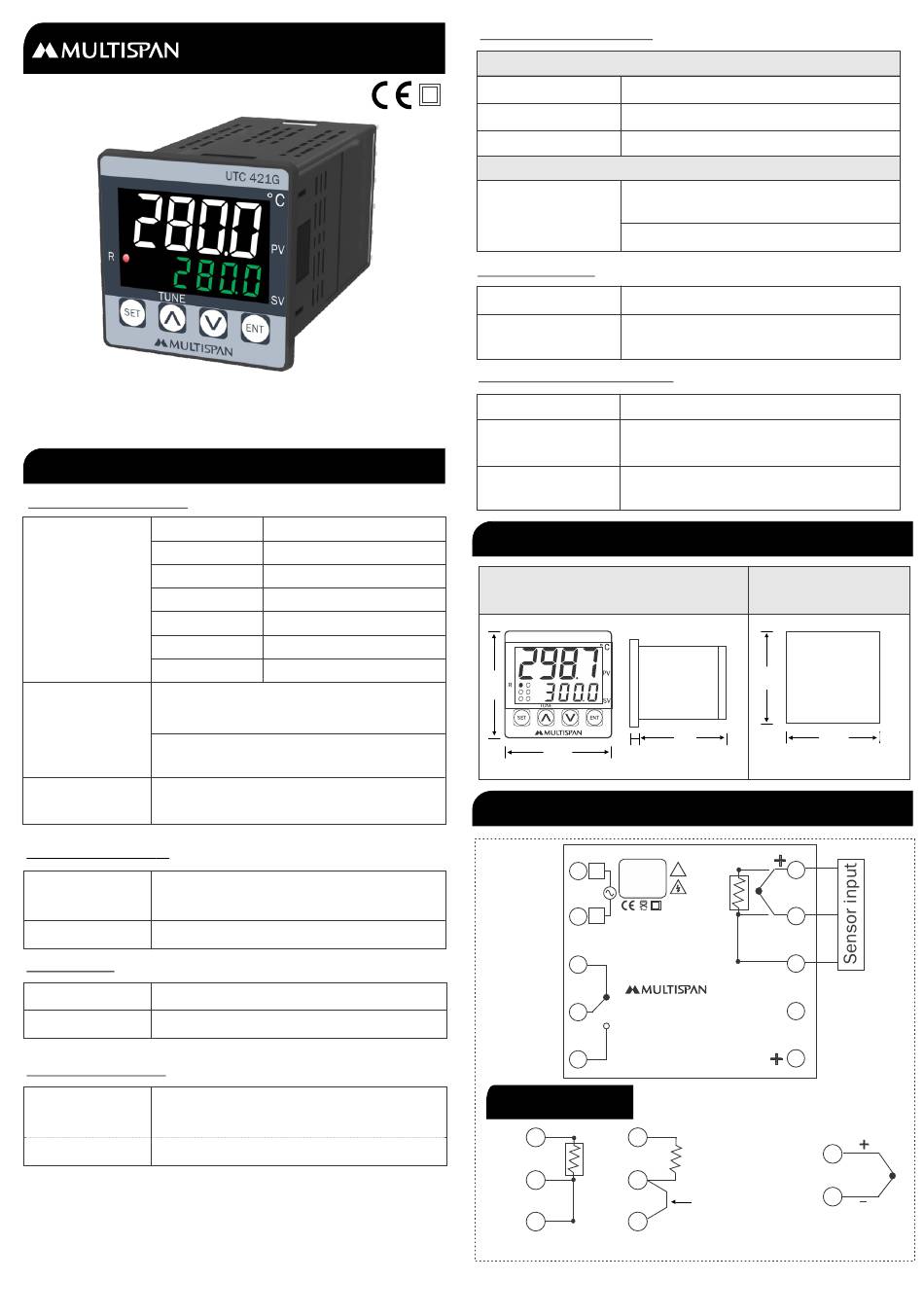

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.56"
Display
Lower: 4 digit, 7 segment, 0.33"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
48 (H) x 48 (W) x 95 (D) mm
Panel Cutout
45 (H) x 45 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
Cooling
ON-OFF control
TEMPERATURE CONTROLLER

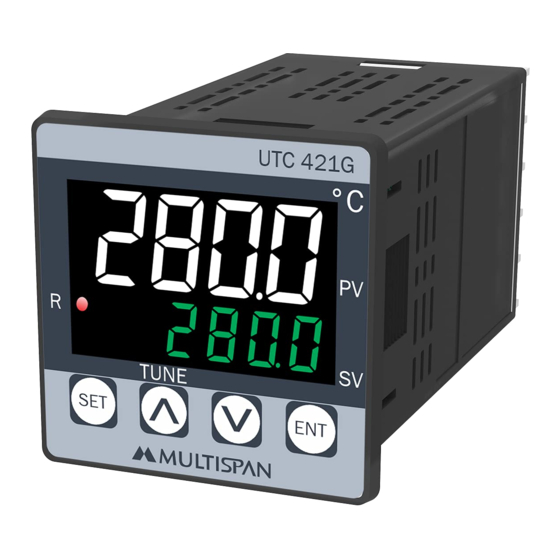

UTC-421G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
(On-Off condition)
Output Signal
Relay parallel to SSR
POWER SUPPLY:
Supply Voltage
100 to 270V AC, 50-60Hz
Power Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
60529 : 2001
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 421G
48
48
3
TERMINAL CONNECTION
~
100
L
1
270V AC
50/60 HZ
4VA
N
2
Made in India
3
NC
www.multispanindia.com
C
4
Relay
NO
5
Sensor Input
6
6
7
7
8
8
2-Wire RTD
3-Wire RTD
Panel Cutout
Dimension (mm)
45
95
45
6
!
T/C
7
-
RTD
8
-
9
SSR
O/P
10
6
Install jumper
7
when using
2 Wire RTD
Thermocouple
