Introduction
2
1
1 Local control panel (LCP)
2 Cover
3 RS-485 serial bus connector
4 Digital I/O and 24 V power supply
5 Analog I/O connector
6 Cable screen connector
7 USB connector
8 Serial bus terminal switch
9 Analog switches (A53), (A54)
10 Relay 1 (01, 02, 03)

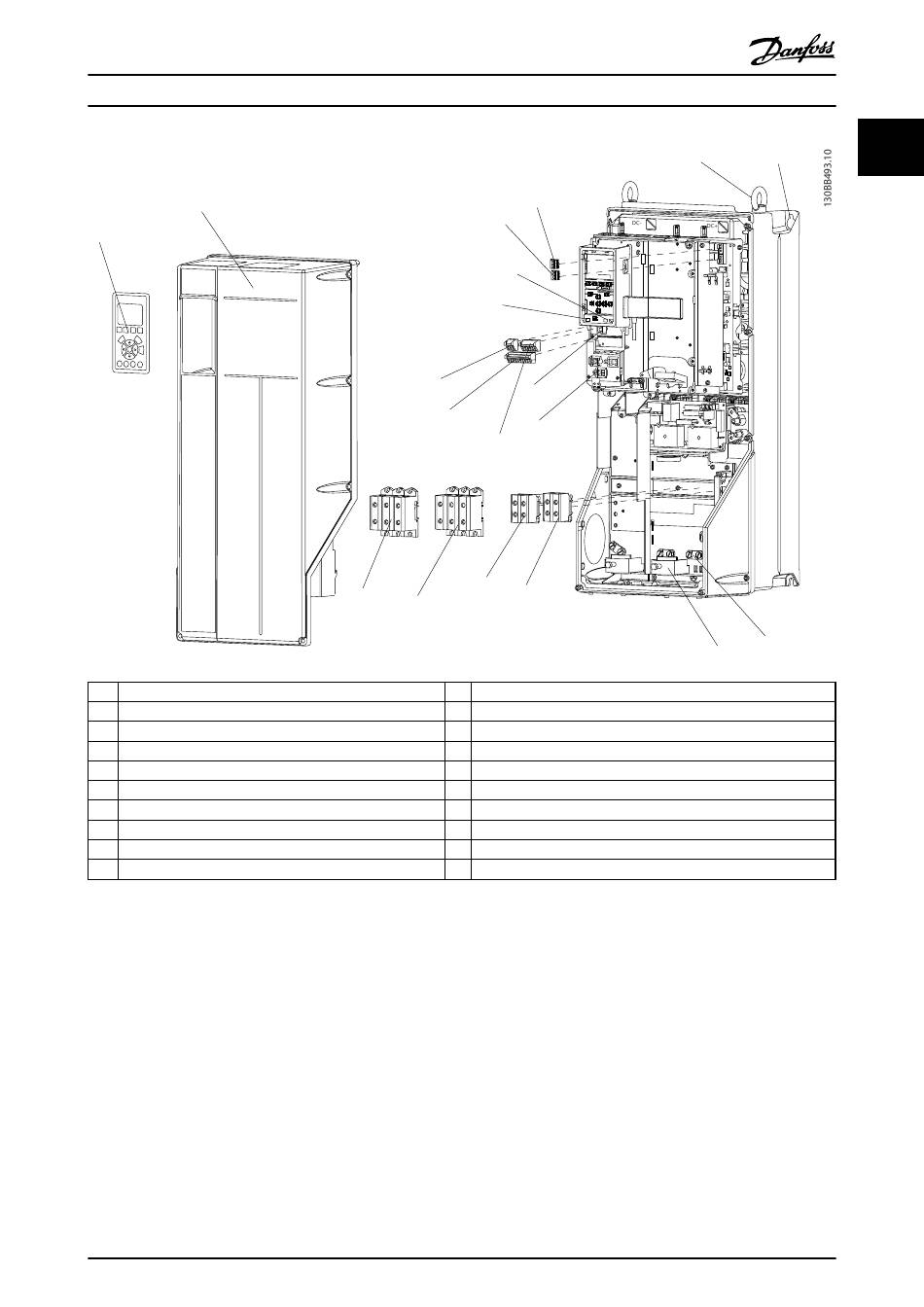

Illustration 1.2 Exploded View Enclosure Types B and C, IP55 and IP66
MG16E302
Operating Instructions
10
9
8
61 68 39 42
3
7
4
5
17
16
19
18
11 Relay 2 (04, 05, 06)
12 Lifting ring
13 Mounting slot
14 Grounding clamp (PE)
15 Cable screen connector
16 -
17 -
18 Motor output terminals 96 (U), 97 (V), 98 (W)
19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
