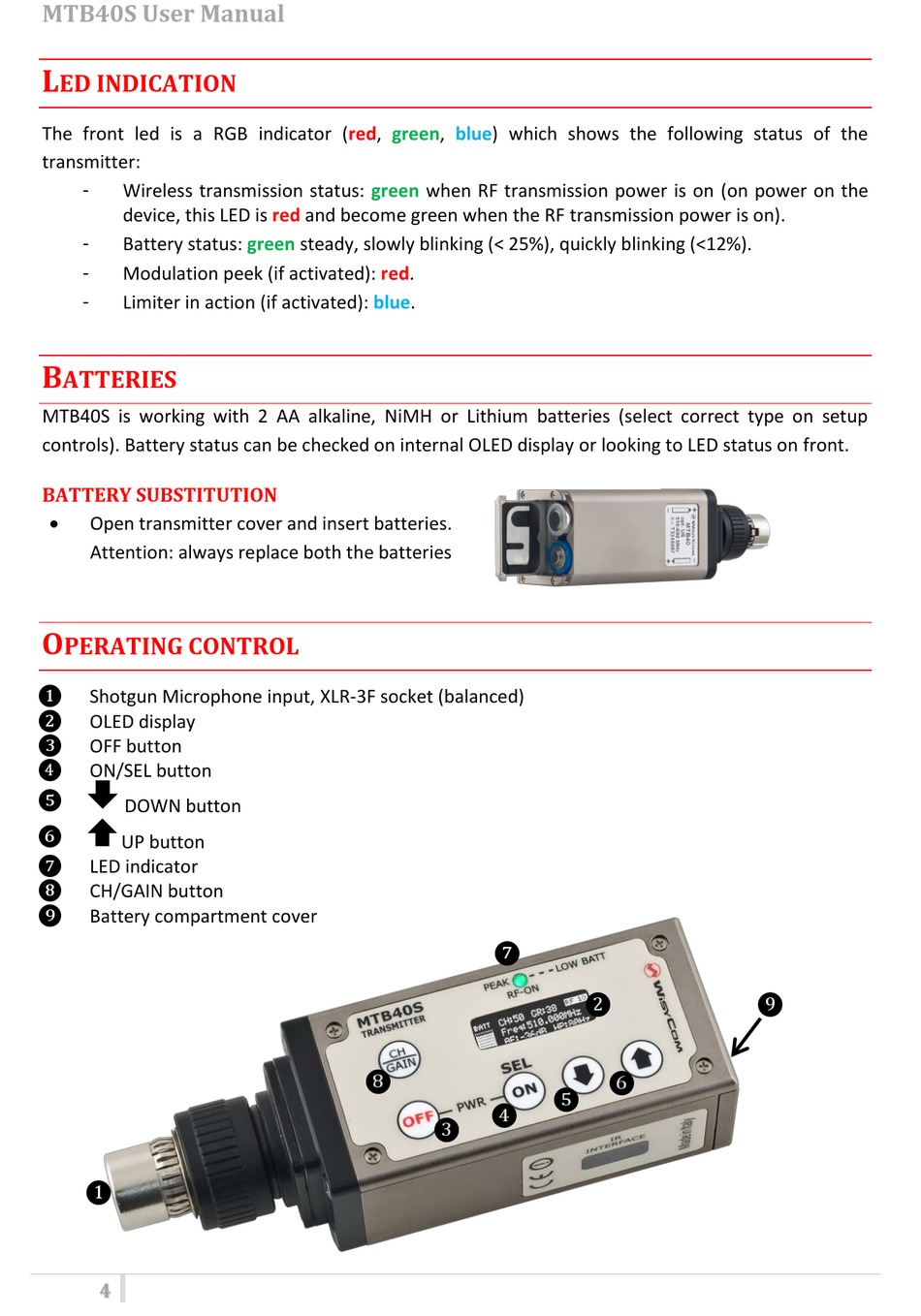

MTB40S User Manual
L
ED INDICATION
The front led is a RGB indicator (red, green, blue) which shows the following status of the
transmitter:
Wireless transmission status:
-
device, this LED is
Battery status:
-
Modulation peek (if activated): red.
-
Limiter in action (if activated): blue.
-
B
ATTERIES
MTB40S is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking to LED status on front.
BATTERY SUBSTITUTION

Open transmitter cover and insert batteries.
Attention: always replace both the batteries
O
PERATING CONTROL
❶
Shotgun Microphone input, XLR-3F socket (balanced)
❷ OLED display
❸
OFF button
❹ ON/SEL button
❺
DOWN button
❻
UP button
❼ LED indicator
❽ CH/GAIN button
❾
Battery compartment cover
❶
4
green
red and become green when the RF transmission power is on).
green steady, slowly blinking (< 25%), quickly blinking (<12%).
❽
when RF transmission power is on (on power on the
❼
❷
❺
❹
❸
❾
❻
