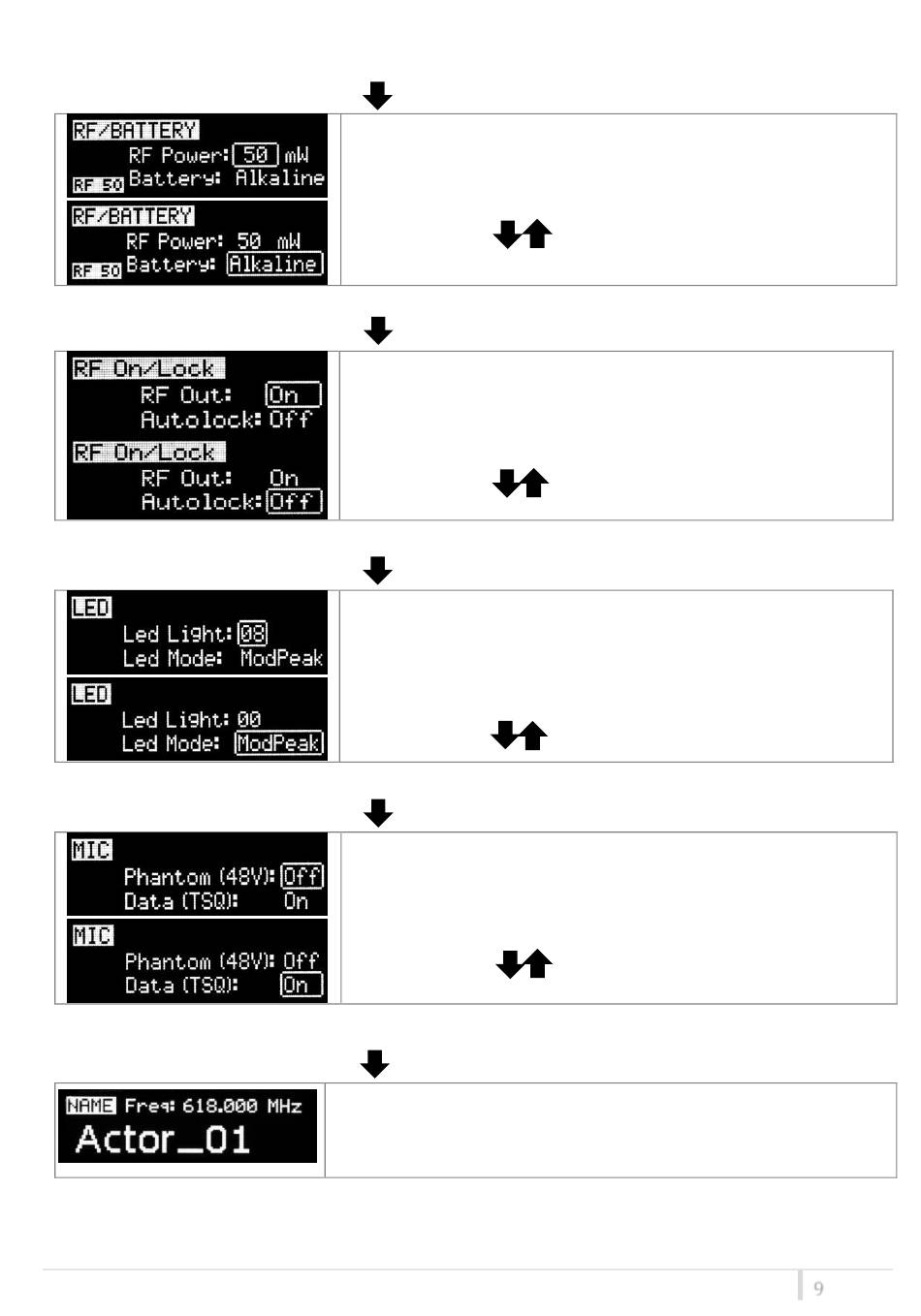

<RF/BATTERY> menu
This menu can be entered by pushing
<RF On/Lock> menu
This menu can be entered by pushing
<LED> menu
This menu can be entered by pushing
<MIC> menu
This menu can be entered by pushing
<NAME> menu
This menu can be entered by pushing
.
Her it's possible to setup:
- "RF Power", that can be 10 mW, 20mW, 50 mW
- Battery type can be setup in Alkaline, NiMH or Lithium.
Use the selector (
.
- RF Out: setup to On/Off to activate or not the radio
transmission.
- Autolock: select ON for lock the transmitter after the auto
turn off of the display
Use the selector (
.
In "Led Light" the brightness of the front led ❼ can be set from 0
to 16 level.
It's also possible to change the mode of function of the LED (in
"LED Mode") selecting ModPeak (become RED when audio get
close to saturation) or None (never become RED).
Use the selector (
.
In "MIC" menu is possible to activate Phantom (48V) and Data
(TSQ)
When Data (TSQ) is enabled, the transmitter sends the tone
squelch and the battery data to the receiver.
Use the selector (
.
In this menu it's possible to see the frequency set on the device
and the name of the transmitter.
MTB40S User Manual
) to change values and <SEL> to confirm.
) to change values and <SEL> to confirm.
) to change values and <SEL> to confirm.
) to change values and <SEL> to confirm.
