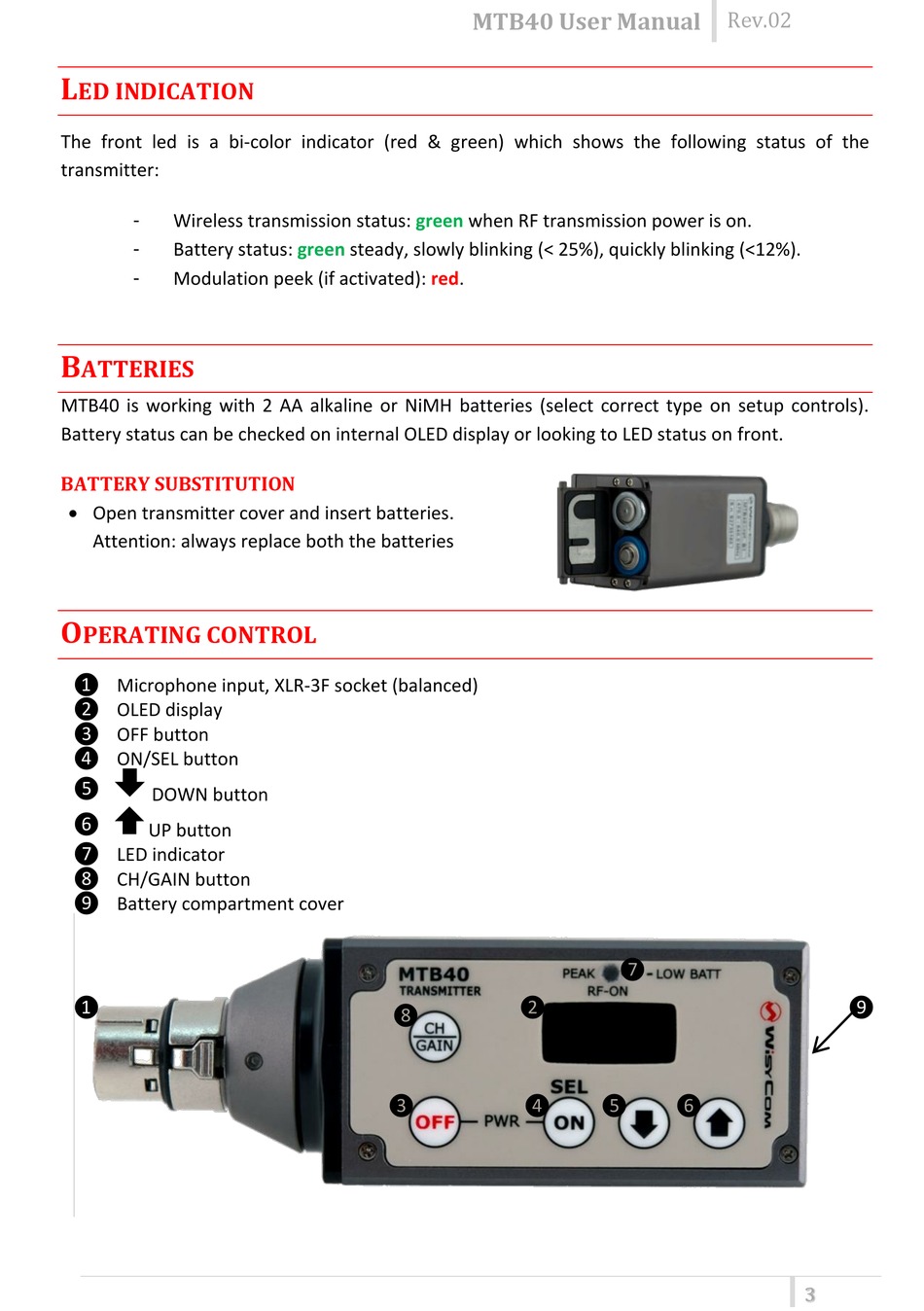

Led Indication; Operating Control - WisyCom MTB40 User Manual

L
ED INDICATION
The front led is a bi-color indicator (red & green) which shows the following status of the
transmitter:
Wireless transmission status:
-
Battery status:
-
- Modulation peek (if activated): red.
B
ATTERIES
MTB40 is working with 2 AA alkaline or NiMH batteries (select correct type on setup controls).
Battery status can be checked on internal OLED display or looking to LED status on front.
BATTERY SUBSTITUTION
 Open transmitter cover and insert batteries.
Attention: always replace both the batteries
O
PERATING CONTROL
❶ Microphone input, XLR-3F socket (balanced)
❷ OLED display
❸ OFF button
❹ ON/SEL button
❺
DOWN button
❻
UP button
❼ LED indicator
❽ CH/GAIN button
❾ Battery compartment cover
❶
MTB40 User Manual
green when RF transmission power is on.
green steady, slowly blinking (< 25%), quickly blinking (<12%).
❽
❸
❼
❷
❹ ❺ ❻
Rev.02
❾
