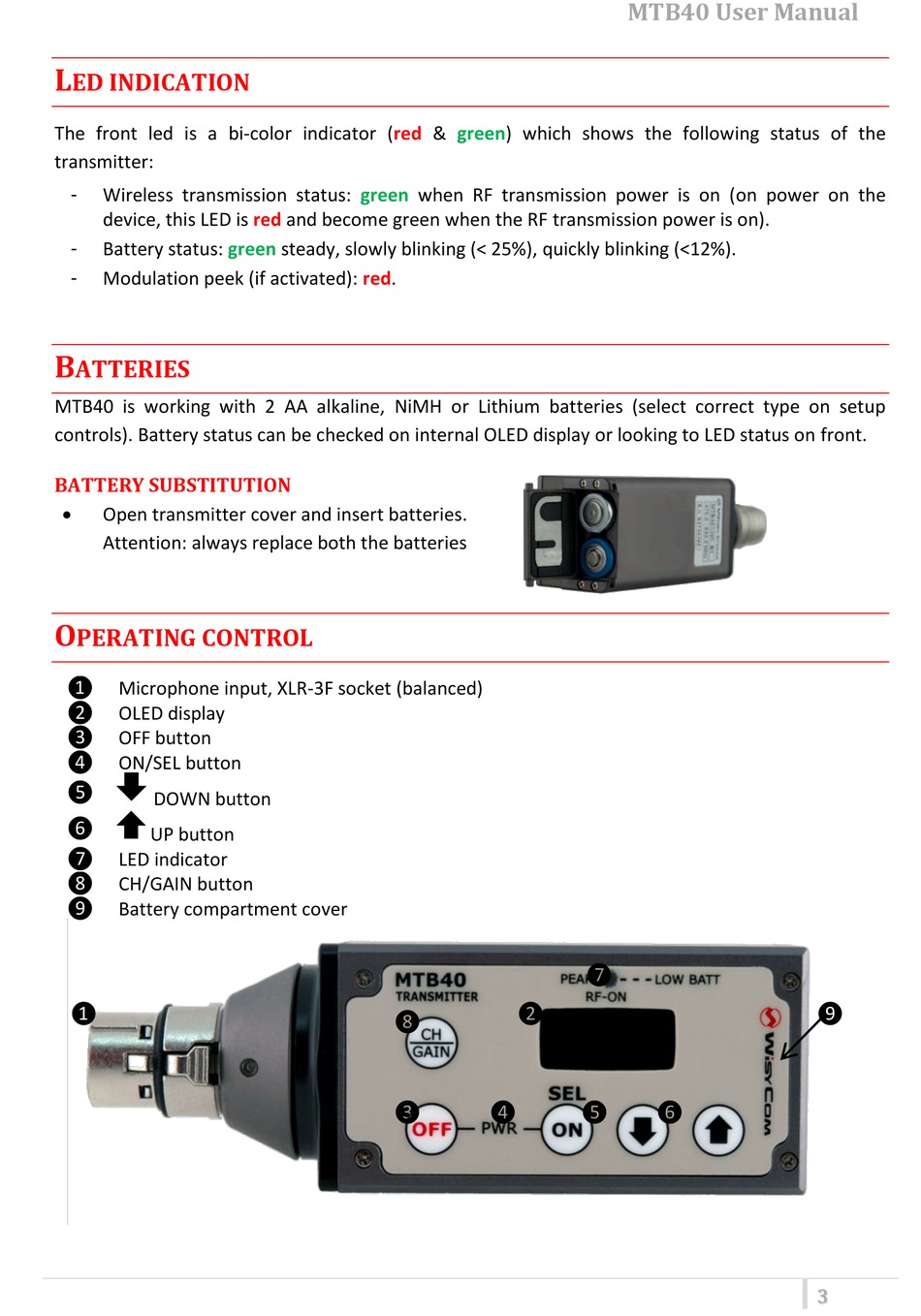

Led Indication - WisyCom MTB40 User Manual

L
ED INDICATION
The front led is a bi-color indicator
transmitter:
- Wireless transmission status:
device, this LED is
Battery status: green
-
Modulation peek (if activated): red.
-
B
ATTERIES
MTB40 is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking to LED status on front.
BATTERY SUBSTITUTION

Open transmitter cover and insert batteries.
Attention: always replace both the batteries
O
PERATING CONTROL
❶ Microphone input, XLR-3F socket (balanced)
❷ OLED display
❸ OFF button
❹ ON/SEL button
❺
DOWN button
❻
UP button
❼ LED indicator
❽ CH/GAIN button
❾ Battery compartment cover
❶
(red
green when RF transmission power is on (on power on the
red and become green when the RF transmission power is on).
steady, slowly blinking (< 25%), quickly blinking (<12%).
❽
❸
& green) which shows the following status of the
❼
❷
❹ ❺
