Parcan 56 Short

Installing the Lamp

The Showtec Parcan 56 Short uses the GX16d (ordercode 80103P) as manufactured by all popular
manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.

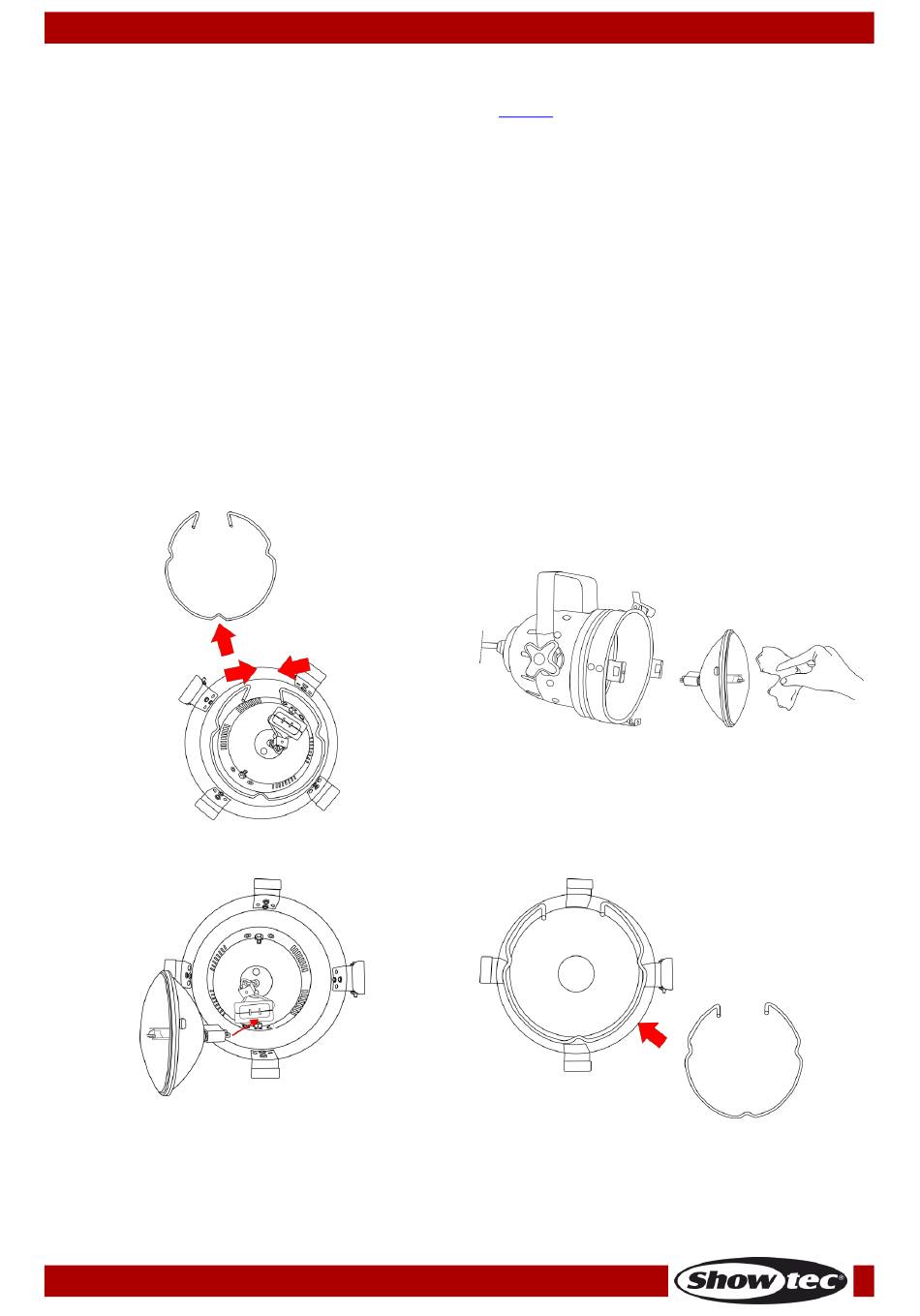

Procedure:
01) Disconnect the Parcan 56 Short from power before installing the lamp.
02) Remove the fixation ring by pressing it together (Fig.03).
03) Remove the lamp from the box and hold it by the base. Read lamp instructions. Do not touch the
lamp bulb glass. Oil on hands shortens the lamp's lifespan. If you touch the bulb glass, wipe it off with
a clean, lint free towel and rubbing alcohol (Fig.04).
04) Pull out the lamp holder and insert the lamp (Fig.05).
05) Replace the fixation ring (Fig.06).
06) The Parcan 56 Short is now ready to use.
Ordercode: 30319/30320
Fig. 03
Fig. 05
9
Fig. 04
Fig. 06
