- Page 1 USER MANUAL ENGLISH NET-4/5 IP Product code: 50818 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 NET-4/5 IP, 5-pin Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
NET-4/5 IP, 5-pin Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 NET-4/5 IP, 5-pin Set Default ...............................27 Firmware Version ............................27 Configuration via Web Browser ........................28 Changing the Password ........................30 Updating the Firmware .........................30 Troubleshooting ..............................31 Maintenance ..............................32 Safety Instructions for Maintenance ......................32 Preventive Maintenance ..........................32 Basic Cleaning Instructions ........................32 Corrective Maintenance ..........................32...
-
Page 5: Introduction
NET-4/5 IP, 5-pin Introduction Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 6: Symbols And Signal Words
NET-4/5 IP, 5-pin Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER serious injury or death. -
Page 7: Safety
NET-4/5 IP, 5-pin Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 NET-4/5 IP, 5-pin DANGER Electric shock caused by short-circuit This device falls under IEC protection Class I. ● Make sure that the device is electrically connected to ground (earth). Connect the device only to a socket-outlet with ground (earth) connection.
-
Page 9: Requirements For The User
NET-4/5 IP, 5-pin Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device

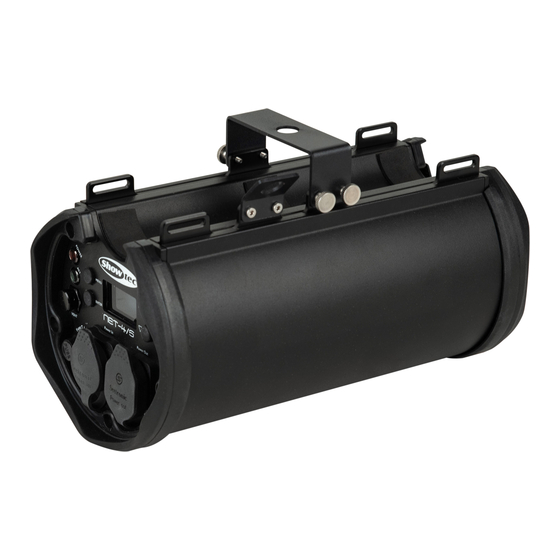

NET-4/5 IP, 5-pin Description of the Device The Showtec NET-4/5 IP is a device that converts Art-Net or sACN signals to DMX and vice versa. The housing and connectors have an IP65 rating, which also makes this device suitable for outdoor use. -
Page 11: Product Specifications
NET-4/5 IP, 5-pin Product Specifications Model: NET-4/5 IP, 5-pin Electrical: Input voltage: 100–230 V AC, 50/60 Hz Power consumption: Fuse: T 1 A, 250 V Physical: Dimensions: 245 x 125 x 150 mm (L x W x H) Weight: 2,5 kg... -
Page 12: Installation
NET-4/5 IP, 5-pin Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 13 NET-4/5 IP, 5-pin To mount the device using the included hook-and-loop straps, follow the steps below: Loosen the mounting bracket thumbscrews (17) and remove the mounting bracket (15), as shown in Fig. 07. Fig. 07 Thread the hook-and-loop straps through the strap slots (14) to attach the device to the supporting structure, as shown in Fig.
-
Page 14: Connecting To Power Supply
● Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–230 V: 15 devices NET-4/5 IP, 5-pin Product code: 50818... -
Page 15: Setup
NET-4/5 IP, 5-pin Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. DMX Connection DMX-512 Protocol DMX-512 is a communication protocol used to control stage lighting and effects. -
Page 16: Ethernet Connection
NET-4/5 IP, 5-pin Ethernet Connection The Showtec NET-4/5 IP is a device that converts Art-Net or sACN signals to DMX and vice versa. It can be powered by the included power cable or via PoE (Power over Ethernet). Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. -
Page 17: Supported Pinout Modes
NET-4/5 IP, 5-pin Supported Pinout Modes The Net-4/5 IP supports the following 2 pinout modes: 1000 mode A and 1000 mode B. Fig. 11 Setup Examples Fig. 12 shows a typical setup example without PoE. Fig. 12 Product code: 50818... - Page 18 NET-4/5 IP, 5-pin Fig. 13 shows a typical setup example with power supplied over Ethernet (PoE) by power sourcing equipment (PSE). (e.g. 50811 - Net-5 PoE) Fig. 13 Product code: 50818...
-
Page 19: Operation
When configured as input, the DMX port can convert DMX-512 signal to Art-Net or sACN. The universe type and protocol for the input port is always taken from the primary universe. The NET-4/5 IP also supports a BACKUP function. In case of a failure, or when there are no DMX values on the primary Art-Net/sACN universe for more than 3 seconds, the NET-4/5 IP starts sending the DMX values from the backup port. -
Page 20: Control Panel
NET-4/5 IP, 5-pin Control Panel A) MENU button B) OLED display C) UP button D) DOWN button E) ENTER button Fig. 14 ● Use the MENU button to open the main menu or to exit the current submenu and return to the previous menu. -
Page 21: Start-Up
NET-4/5 IP, 5-pin Start-up Upon start-up the display shows the start screen, which provides information about the device and the ports. Press the UP/DOWN buttons to navigate between the start screens. DEVICE INFO ● Name of the device. To change the name, see 6.8.1. Rename on page 23. -
Page 22: Menu Overview
NET-4/5 IP, 5-pin Menu Overview Product code: 50818... - Page 23 NET-4/5 IP, 5-pin Product code: 50818...
-
Page 24: Main Menu Options
NET-4/5 IP, 5-pin Main Menu Options The main menu has the following options: Press the UP/DOWN buttons to navigate through the main menu. Press the ENTER button to open the submenus. Rename In this menu, you can rename the device. -
Page 25: Manual Ip
NET-4/5 IP, 5-pin Manual IP In this submenu, you can configure the IP address manually: Press the UP/DOWN buttons to position the cursor on the number you want to change. The adjustment range for each number is 0–255. Press the ENTER button to confirm the selection. -
Page 26: Dmx Status: Output
NET-4/5 IP, 5-pin DMX Status: Output In this submenu, you can configure the DMX port settings. Press the UP/DOWN buttons to select one the following 7 options: ● DMX Status: Set the DMX status. The available options are Output, Input and Disable. -
Page 27: Dmx Status: Input
NET-4/5 IP, 5-pin DMX Status: Input In this submenu, you can adjust the DMX port settings. Press the UP/DOWN buttons to select one the following 6 options: ● DMX Status: Set the DMX status. The available options are Output, Input and Disable. -
Page 28: Set Display
NET-4/5 IP, 5-pin Set Display In this menu, you can adjust the settings of the OLED display. Press the UP/DOWN buttons to select one of the following 2 options: ● Mode: Set the orientation of the OLED display. The available options are Normal or Inverse. -
Page 29: Configuration Via Web Browser
Subnet 255.0.0.0). Open a web browser and enter the IP address of the NET-4/5 IP in the address bar. For the current IP address of the device, check the information on the start screen during start-up (see 6.6. Start-up on page 20). - Page 30 NET-4/5 IP, 5-pin ● Use the drop-down menus or enter the respective values to configure the settings of the device and the 4 DMX ports. ● Click Apply to save the changes. ● Click Cancel to discard the changes. Product code: 50818...
-
Page 31: Changing The Password
Click Apply to save the changes. Updating the Firmware You can update the firmware of the NET-4/5 IP via the web interface. If an update is available for this device, you can download it from the product’s page on www.highlite.com. -
Page 32: Troubleshooting
NET-4/5 IP, 5-pin Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 33: Maintenance
NET-4/5 IP, 5-pin Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 34: Replacing The Fuse
NET-4/5 IP, 5-pin Replacing the Fuse DANGER Electric shock caused by short-circuit ● Do not bypass the thermostatic switch or fuses. ● For replacement use fuses of the same type and rating only. Power surges, short-circuit or incorrect electrical power supply may cause a fuse to burn out. If the fuse burns out, the device will not function anymore. -
Page 35: Deinstallation, Transportation And Storage
NET-4/5 IP, 5-pin Deinstallation, Transportation and Storage Instructions for Transportation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 36 ©2024 Showtec...
