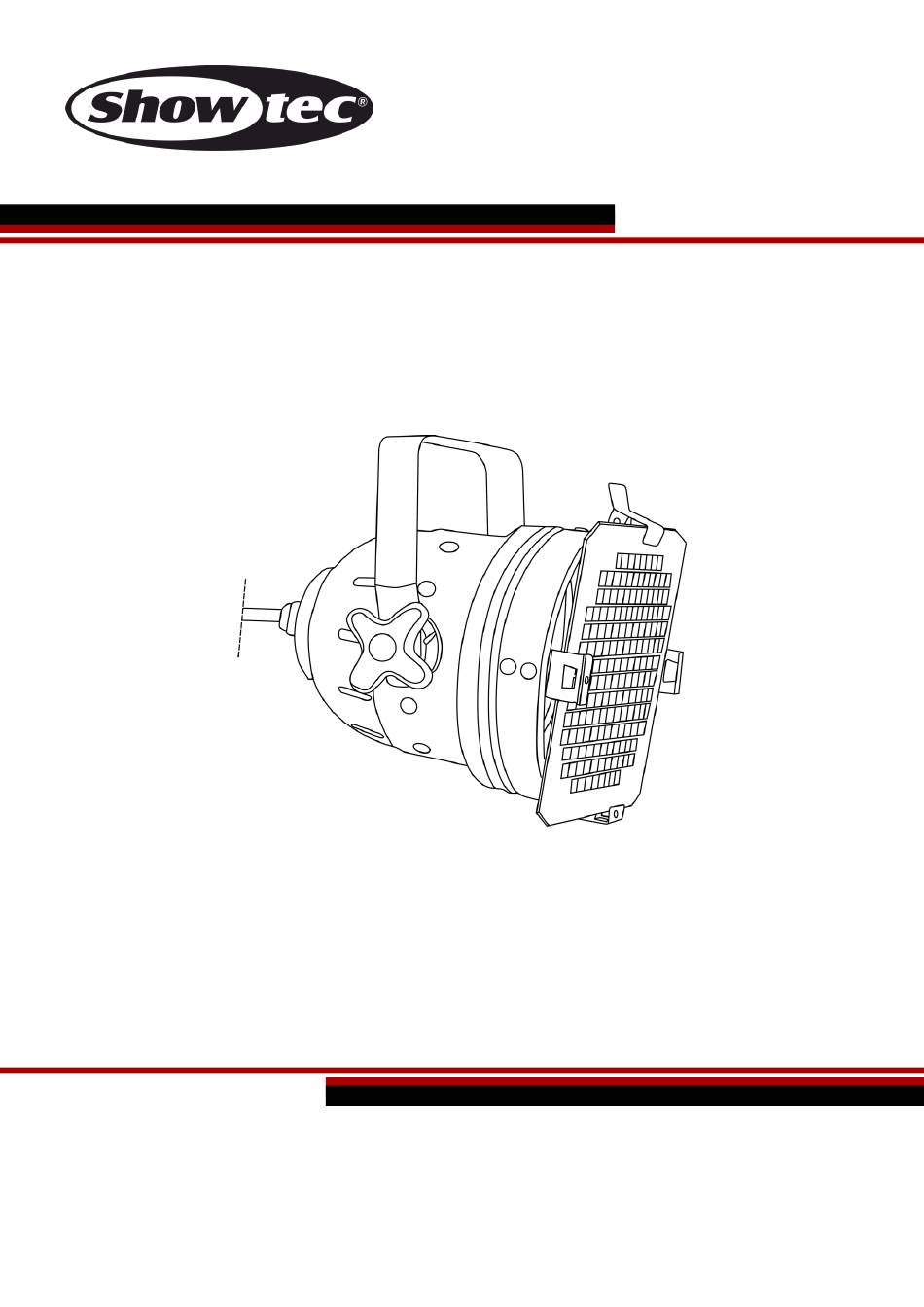

- Page 1 MANUAL ENGLISH Parcan 56 Short Ordercode: 30319/30320 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Parcan 56 Short Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories ..............................7 Overview .................................. -
Page 3: Warning
Your shipment includes: ● Showtec Parcan 56 Short with 0,7m Schuko power cable ● 1x Filter frame ● User manual... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Parcan 56 Short is lowered from the ceiling or high joists, professional trussing systems can be used. Use a clamp to mount the Parcan 56 Short, with the mounting-bracket, to the trussing system. -
Page 6: Connection With The Mains
Parcan 56 Short The Parcan 56 Short can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. -
Page 7: Return Procedure
Parcan 56 Short Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

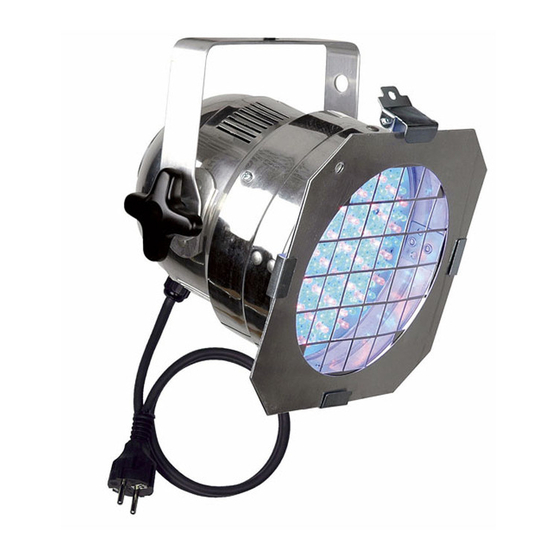

Parcan 56 Short Description of the device Features The Showtec Parcan 56 Short is a parcan with high output and great effects. • Lamp: PAR 56 • Lamp socket: GX16d (max 230V) • Capacity: max 500W • Input voltage: 230V, 50Hz •... -
Page 9: Lamp Housing
03) Lamp socket GX16d (230V) with terminal 04) Fixation ring Installation Remove all packing materials from the Parcan 56 Short. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Installing The Lamp
Parcan 56 Short Installing the Lamp The Showtec Parcan 56 Short uses the GX16d (ordercode 80103P) as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
Parcan 56 Short Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 12: Changing The Lamp
03) If all of the above appears to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not modify the Parcan 56 Short, as this may damage the unit and the warranty will become void. -
Page 13: Product Specifications
Parcan 56 Short Product Specifications Model: Showtec Parcan 56 Short Input voltage: 230V, 50Hz Capacity: max 500W Lamp socket: GX16d (max 230V) Housing: Die-cast aluminum Cooling: Convection IP rating: IP20 Power cable 0,7m with Schuko connector Filter frame: Included Dimensions:... -
Page 14: Dimensions
Parcan 56 Short Dimensions Ordercode: 30319/30320... -
Page 15: Notes
Parcan 56 Short Notes Ordercode: 30319/30320... - Page 16 ©2016 Showtec...
