20 Shade & Drape DC Motor Controller: C2N-SDC-DC
The PC communication settings specified here should match
the protocol that the control processor expects. The usual
settings are as follows.
• Port = COM 1 through COM 8. Select the correct COM
port on the PC.
• Baud rate = Auto-Detect (or 115200).
• Parity = None.
• Number of data bits = 8.
• Number of stop bits = 1.
• Hardware handshaking (RTS/CTS) enabled.
• Software handshaking (XON/XOFF) not enabled.

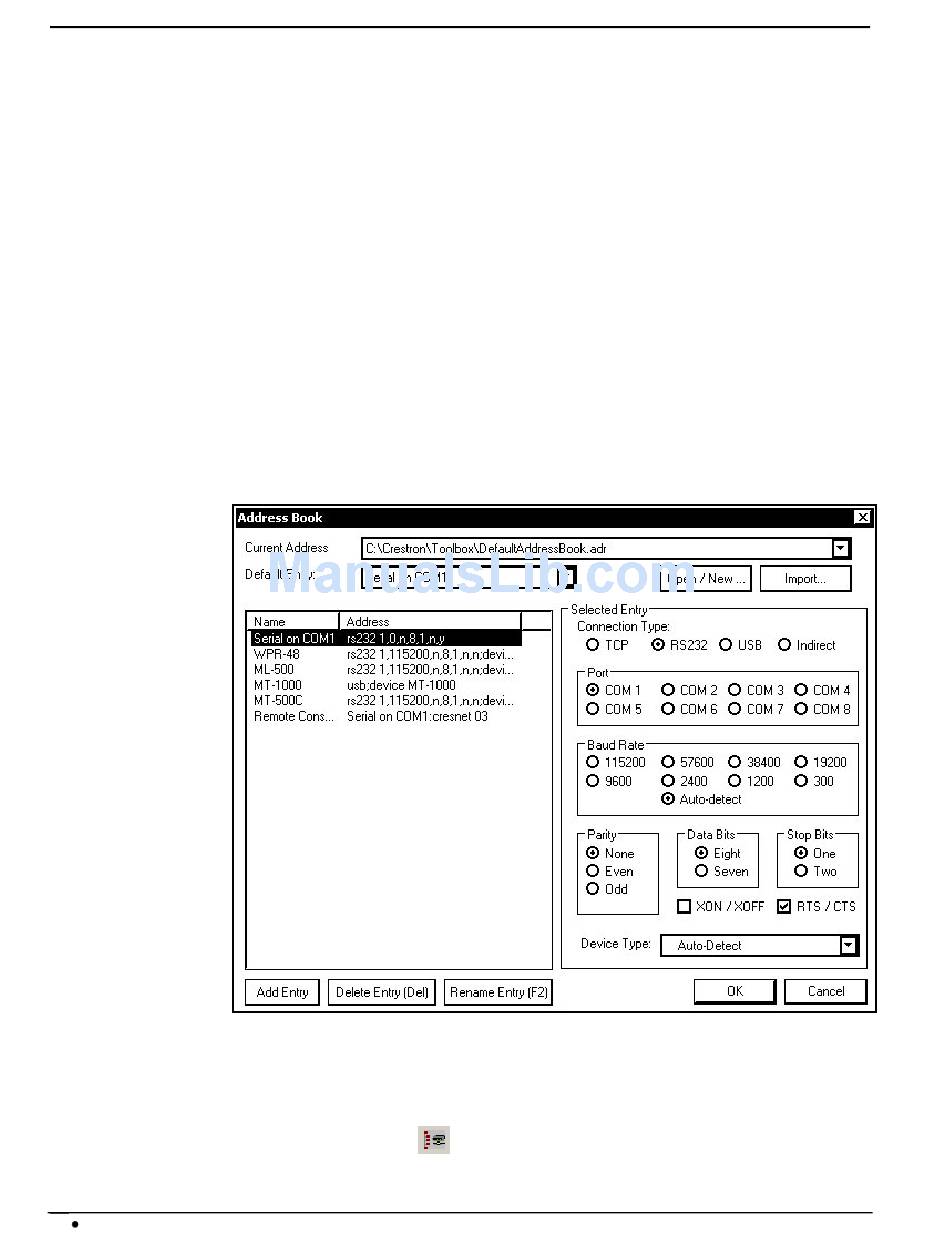

"Address Book" Window – Serial Setup
4. After setting the correct parameters, click OK to return to the
Crestron Toolbox main window.
5. Click Tools | Network Device Tree, or click the network
device tree icon
Crestron C2N-SDC-DC
to display the devices in the system.
