Shade & Drape DC Motor Controller
Hardware Hookup
Refer to the following hookup diagram. The C2N-SDC-DC is equipped
with three connector plugs that have screw terminals. Use these
connectors to attach the motor wires and Cresnet wires to the
C2N-SDC-DC.
NOTE: All wiring must be installed in accordance with all local and
national electrical codes.
NOTE: Three Watts are consumed by the C2N-SDC-DC when the
motors are not operating. Motor loads may be connected to the
C2N-SDC-DC up to the available power remaining on the Crestron
power supply. Crestron recommends an independent power supply for
each C2N-SDC-DC.

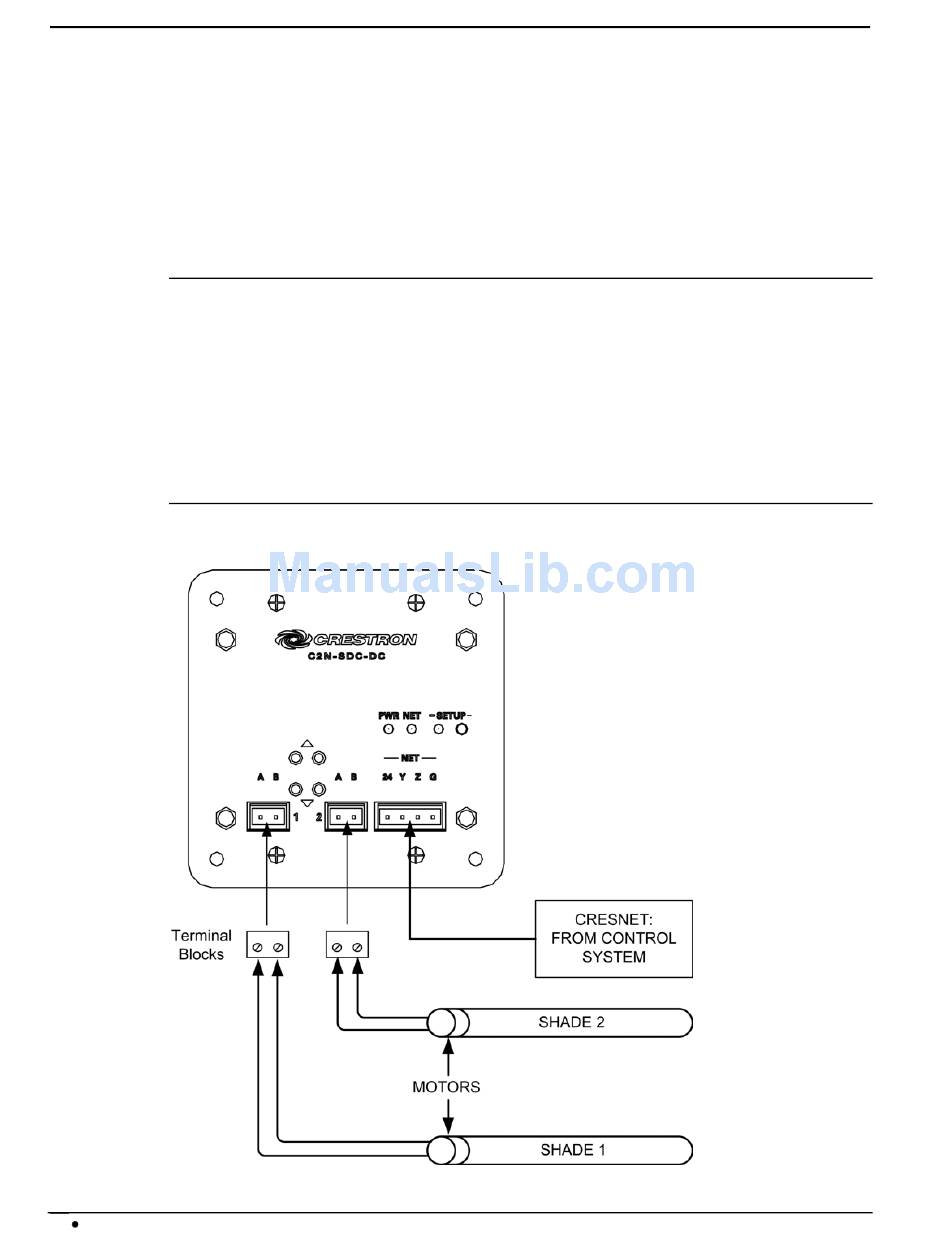

Hookup Diagram
10
Shade & Drape DC Motor Controller: C2N-SDC-DC
Crestron C2N-SDC-DC
Operations & Installation Guide - DOC. 6373
