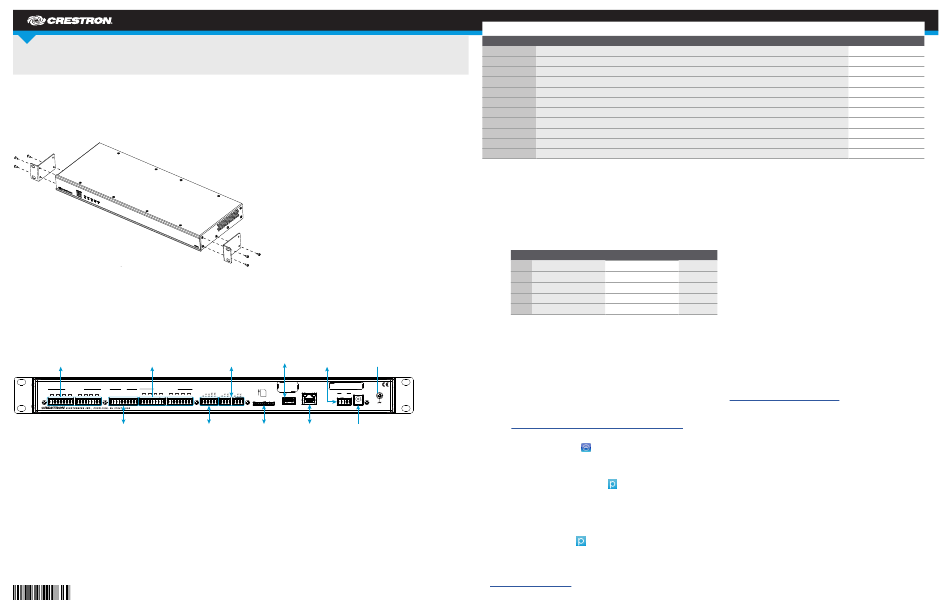

DO
GUIDE
CP3-R
3-Series
Control Processor for Crestron Pyng
®
DO
Install the Device
The Crestron
CP3-R may be mounted into a rack or placed onto a flat surface.
®
Mount into a Rack
The CP3-R occupies 1U of rack space. Use a #1 Phillips screwdriver to remove the required screws from the CP3-R assembly (shown in the illustration
below), and then attach the two included rack ears with the removed screws. Mount the CP3-R into the rack with four mounting screws (not included).
Place onto a Flat Surface
When the CP3-R is placed onto a flat surface or stacked with other equipment, attach the four included feet near the corners on the underside of the CP3-R.
DO
Connect the Device
Make all necessary connections to the CP3-R as shown in the illustration below.
RELAY OUTPUT (1–8):
IR - SERIAL (1–8):
To contact closure
To TLL/RS-232
devices
devices
RELAY OUTPUT
I/O
IR - SERIAL OUTPUT
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8 G
S
G S G S G S G
S
G S G S G S G
I/0 (1–8):
To controllable
devices
NOTE:
Ensure that the included SD card is seated fully in the MEMORY slot prior to powering on the CP3-R.
Application
®
COM2/COM3:
USB:
To serial
NET:
To storage
controlled
To any Cresnet
®
devices
devices
network device
Ground
SERIAL LABEL
MEMORY
MAC ID LABEL
LAN
COM1
COM2
COM3
— ---
NET
24V
2.0A
USB
24 Y Z G
CONTACTS DOWN
24W MAX. CLASS 2
COM1:
MEMORY:
LAN:
24V, 2.0A:
To serial
SD-compatible
10BASE-T /
From ac
controlled
card slot
100BASE-TX
power pack
devices
Ethernet to LAN
DO
Check the Box
QUANTITY
2
Bracket, Rack Ear, 1U
1
Cable, USB 2.0, A - B, 6' (1.83 m)
2
Connector, 3-Pin
1
Connector, 4-Pin
1
Connector, 5-Pin
4
Connector, 8-Pin
1
Connector, 9-Pin
4
Foot, 0.5" x 0.5" x 0.23", Rubber, Black
4
IR Emitter Probe, with Terminal Block Connector, IRP2
1
Power Cord, 5' 10" (1.78 m)
1
Power Pack, 24 Vdc. 2.5 A, 100-240 Vac
Observe the following when connecting the CP3-R:
Use Crestron power supplies for Crestron equipment.
The CP3-R may be powered with the included 24 Vdc power supply or with the NET 4-pin terminal block connector.
The included cables may not be extended.
Connect the chassis ground lug to a known earth ground circuit to ensure the CP3-R is properly grounded (for example, building steel).
Apply power after all connections have been made.
COM 1 Connections
PORT RS-232
G
GND
TX
TX (from CP3-R)
RX
RX (to CP3-R)
RTS RTS (from CP3-R)
CTS CTS (to CP3-R)
1
RS-422 transmit and receive are balanced signals that require two lines plus a ground in each
direction. RXD+ and TXD+ should idle high (going low at start of data transmission). RXD- and
TXD- should idle low (going high at start of data transmission). If necessary, RXD+/RXD- and
TXD+/TXD- may be swapped to maintain correct signal levels.
2
A ground terminal connection is recommended but not required.
DO
Download the Crestron Pyng
The Crestron Pyng
app may be downloaded onto an Apple
®
NOTES:
G
An iTunes account is required to download the Crestron Pyng app. Refer to
account.
For a comprehensive list of iOS
https://support.crestron.com/app/answers/detail/a_id/5655.
To download the Crestron Pyng app:
1.
Tap the App Store icon
2.
Tap the search field, and enter the search term "Crestron Pyng."
Tap Search.
3.
4.
Tap the Crestron Pyng app icon
5.
Follow the prompts to download the app to the device.
DO
Configure the System
Once the Crestron Pyng app is downloaded and installed, system setup takes place entirely through the app.
Tap the Crestron Pyng app icon
displayed.
NOTE:
Ensure that the iPad device and the CP3-R are placed on the same subnet prior to configuration.
For more information on setting up and configuring the Crestron Pyng system, refer to the Crestron Pyng Application for CP3-R Product Manual (Doc. 8356)
at www.crestron.com/manuals.
ITEM
RS-422
1
RS-485
GND
GND
2
TX- (from CP3-R)
TX-/RX-
RX+ (to CP3-R)
Not Used
TX+ (from CP3-R)
TX+/RX+
RX- (to CP3-R)
Not Used
App
®
iPad
device from the iTunes
application App Store
®
®
®
https://support.apple.com/kb/HT2731
®
hardware and software versions that are compatible with the Crestron Pyng app, refer to OLH article 5655 at
on the iPad device home screen.
.
on the iPad device home screen. The Crestron Pyng app connects to the CP3-R automatically, and a splash screen is
PART NUMBER
2032122
2014966
2003575
2003576
2003577
2003580
2003581
2002389
4500152
2042043
2045873
online store.
®
for help with setting up an iTunes
