Shade & Drape DC Motor Controller
C2Net-Device Slot in Configuration Manager
To incorporate a C2N-SDC-DC into the system, drag the C2N-SDC-DC
from the Cresnet Control Modules | Cresnet Shade Drape Controllers
folder of the Device Library and drop it in System Views. The PRO2
system tree displays the C2N-SDC-DC in Slot 9, with a default Net ID of
23 as shown in the following illustration.
NOTE: The first C2N-SDC-DC in a system is preset with a Net ID of 23
when its symbol is dragged into the upper pane of System Views.
Additional units are assigned different Net ID numbers as they are added.

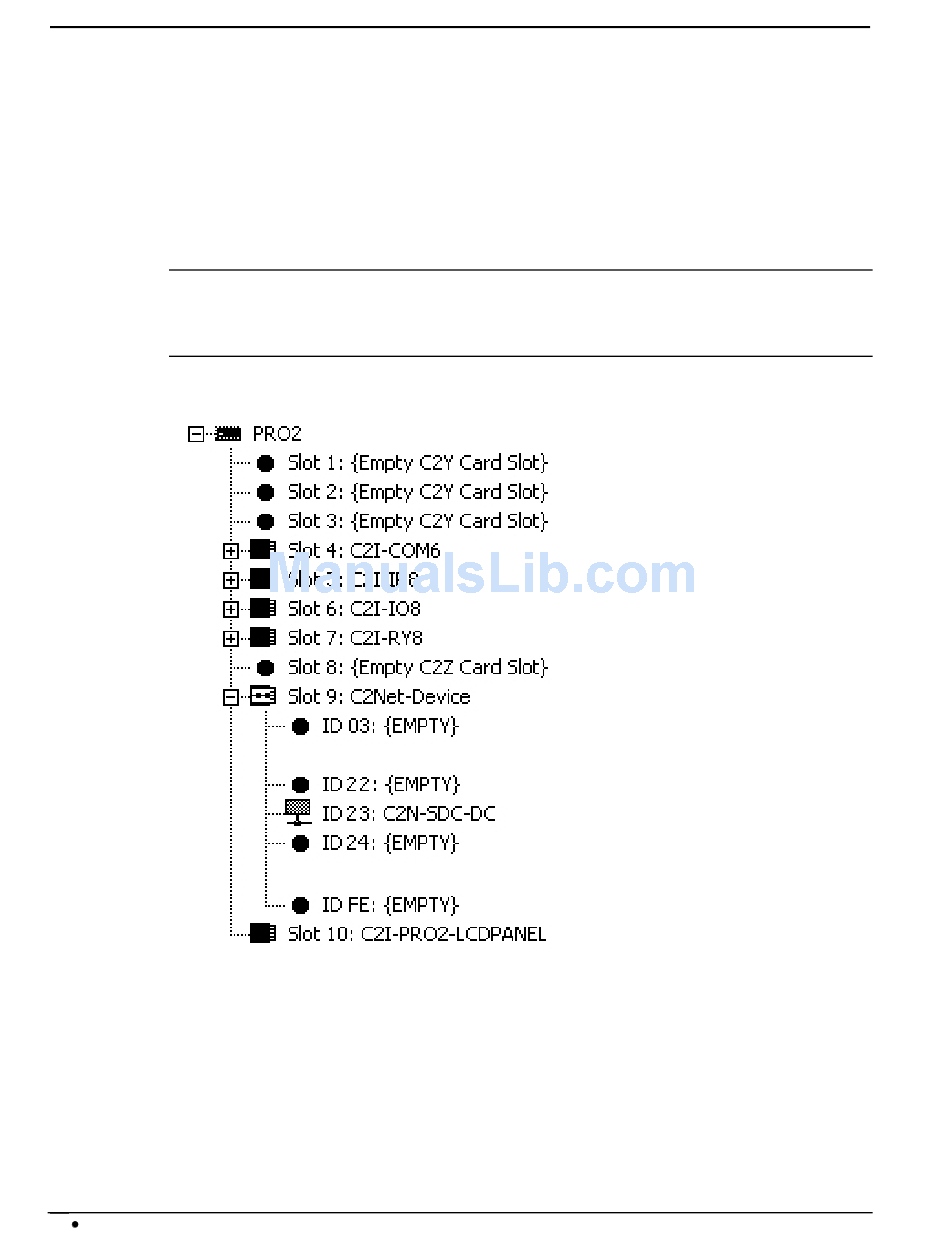

C2Net Device, Slot 9
Setting the Net ID in Device Settings
Double-click the C2N-SDC-DC icon to open the "Device Settings"
window. This window displays the C2N-SDC-DC device information. If
necessary, select the Net ID tab to change the Net ID as shown in the
following figure.
16
Shade & Drape DC Motor Controller: C2N-SDC-DC
Crestron C2N-SDC-DC
Operations & Installation Guide - DOC. 6373
