20 • Professional Multimedia Switch: C2N-MMS
The PC communication settings specified here should match the protocol
that the control processor expects. The usual settings are as follows:
•
Port = COM 1 through COM 8. Select the correct COM port on
the PC.
•
Baud rate = Auto-detect.
•
Parity = None.
•
Number of data bits = 8.
•
Number of stop bits = 1.
•
Hardware handshaking (RTS/CTS) enabled.
•
Software handshaking (XON/XOFF) not enabled.

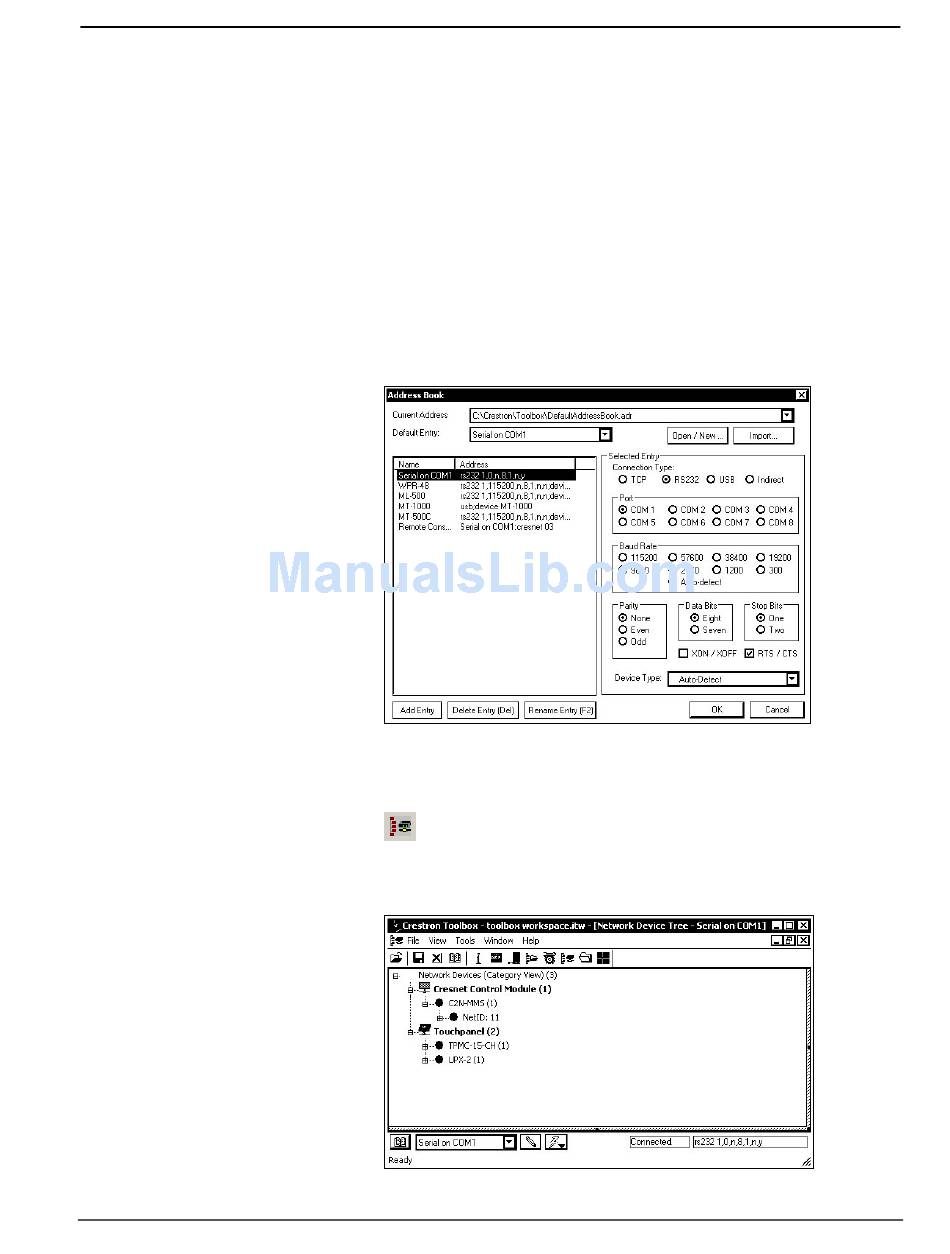

"Address Book" Window – Serial Setup
3. After setting the correct parameters, click OK to return to the Crestron
Toolbox main window.
4. Click Tools | Network Device Tree, or click the network device tree icon
to display the devices in the system. Select Serial on COM1 from the
drop down list if it is not already selected. If communication is successful,
the network devices that are connected to the control system are displayed.
Network Device Tree
