This section describes a sample SIMPL Windows program that includes a
C2N-MMS Multimedia Switch with an MP2E Media Processor as the control
system.
Configuration Manager is where programmers "build" a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
MP2E from the Control Systems folder of the Device Library and drop it in the
upper pane of the System Views. The MP2E with its associated communication ports
is displayed in the System Views upper pane.

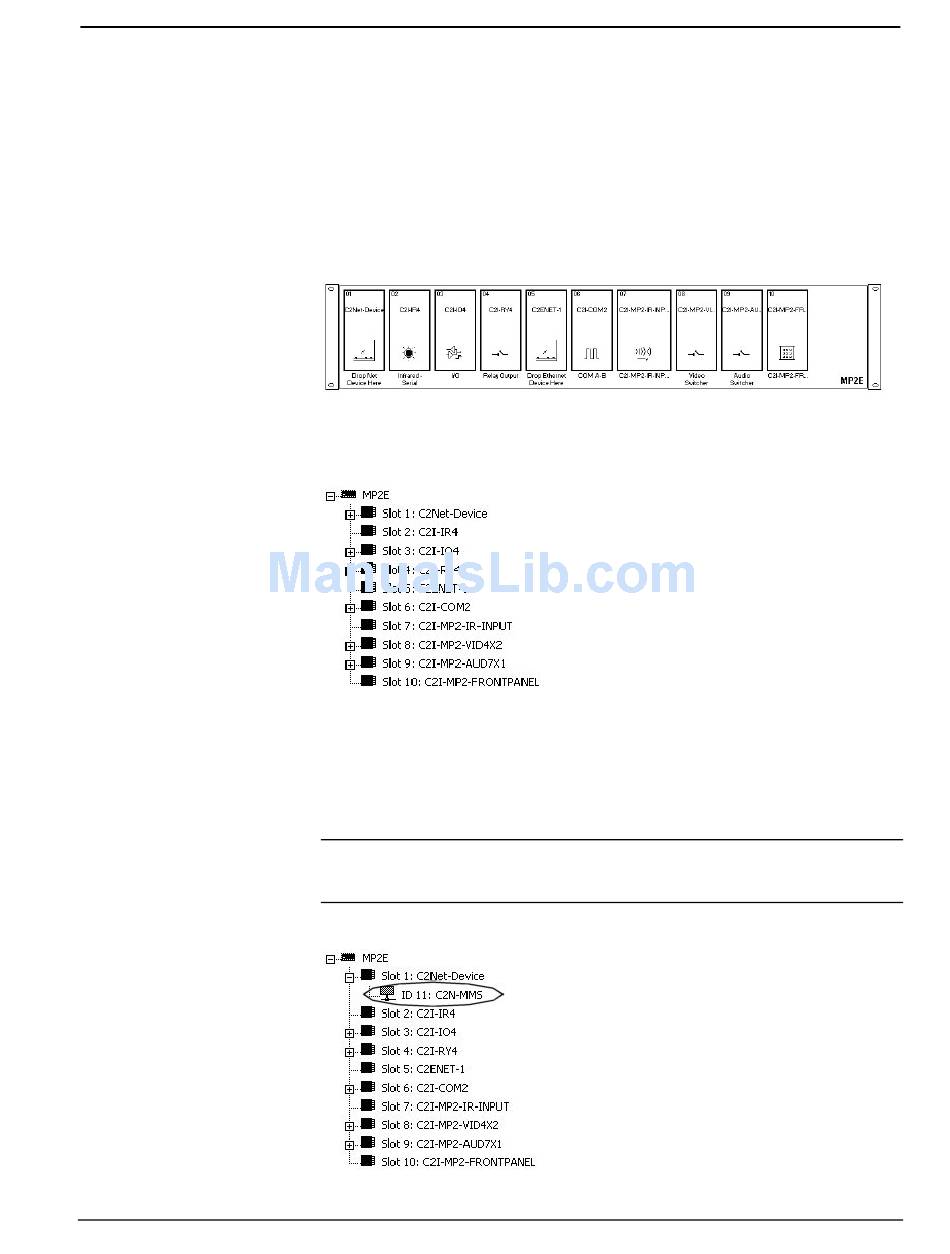

MP2E System View
The System Views lower pane displays the MP2E system tree. This tree can be
expanded to display and configure the communications ports.
Expanded MP2E System Tree
C2Net-Device Slot in Configuration Manager
To incorporate the C2N-MMS into the system, drag the C2N-MMS from the Cresnet
Control Modules | Cresnet Video Modules folder of the Device Library and drop it in
the System Views. The MP2E system tree displays the device in slot 1 with a default
NET ID of 11 as shown in the following illustration.
NOTE: The first C2N-MMS in a system is preset with a NET ID of 11, when its
symbol is dragged into the upper pane of System Views. Additional C2N-MMS
devices are assigned different NET ID numbers as they are added.
C2Net Device, Slot 1
