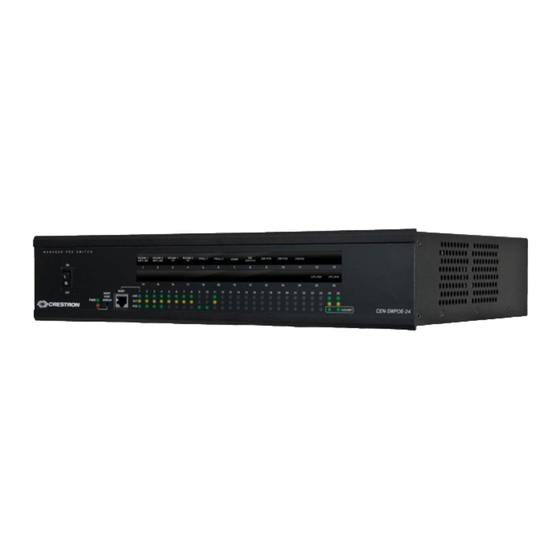

Crestron CEN-SWPOE-24
24-Port Managed PoE Switch
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEN-SWPOE-24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron CEN-SWPOE-24

Summary of Contents for Crestron CEN-SWPOE-24

  • Page 1 Crestron CEN-SWPOE-24 24-Port Managed PoE Switch Operations Guide...

  • Page 2: Regulatory Compliance

    This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. As of the date of manufacture, the CEN-SWPOE-24 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

  • Page 3: Table Of Contents

    Crestron CEN-SWPOE-24 24-Port Managed PoE Switch Contents 24-Port Managed PoE Switch: CEN-SWPOE-24 Introduction ..........................1 Features and Functions ....................1 Specifications ......................2 Physical Description....................3 Setup ............................6 Network Wiring......................6 CAT5 Wiring....................... 6 Installation ........................6 Hardware Hookup ....................... 8 Configuration...........................

  • Page 5: 24-Port Managed Poe Switch: Cen-Swpoe-24

    24-Port Managed PoE Switch 24-Port Managed PoE Switch: CEN-SWPOE-24 Introduction The CEN-SWPOE-24 offers control system networking made easy, providing ® Crestron guaranteed performance and reliability for a complete Ethernet network of touch screens, keypads, control processors, and other devices in a 2-space rack mount package.

  • Page 6: Specifications

    24-Port Managed PoE Switch Crestron CEN-SWPOE-24 Specifications Specifications for the CEN-SWPOE-24 are listed in the following table. CEN-SWPOE-24 Specifications SPECIFICATION DETAILS Ethernet Ports (24) 10BASE-T/100BASE-TX auto-sensing Fast Ethernet with PoE; (2) 10/100/1000BASE-T auto-sensing Gigabit Ethernet Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af...

  • Page 7: Physical Description

    CEN-SWPOE-24. CEN-SWPOE-24 Physical View (Front View) CEN-SWPOE-24 Physical View (Rear View) CEN-SWPOE-24 Overall Dimensions (Front View) 17.03 in (433 mm) 3.47 in (89 mm) CEN-SWPOE-24 (Rear View) 24-Port Managed PoE Switch: CEN-SWPOE-24 • 3 Operations Guide – DOC. 7036C...
  • Page 8 Pin 8 10BASE-T/100BASE-TX Ethernet port and IEEE 802.3af Class 0 PoE Power Sourcing Equipment output SIGNAL SIGNAL TX + TX - RX - RX + (Continued on following page) 4 • 24-Port Managed PoE Switch: CEN-SWPOE-24 Operations Guide – DOC. 7036C...
  • Page 9 TX - RX - RX + (1) 6-32 screw, chassis ground lug 100-240V~50/60Hz (1) IEC C14 male chassis plug, main power 4.8-2.0A input; Mates with removable power cord, included 24-Port Managed PoE Switch: CEN-SWPOE-24 • 5 Operations Guide – DOC. 7036C...

  • Page 10: Setup

    Rack Mounting The CEN-SWPOE-24 can be mounted in a rack or stacked with other equipment. Two “ears” are provided with the CEN-SWPOE-24 so that the unit can be rack mounted. These ears must be installed prior to mounting. Complete the following procedure to attach the ears to the unit.
  • Page 11 (for example, use of power strips). To install the ears: 1. There are screws that secure each side of the CEN-SWPOE-24 top cover. Using a #1 or #2 Phillips screwdriver, remove the three screws closest to the front panel from one side of the unit.
  • Page 12 Crestron CEN-SWPOE-24 Stacking Four “feet” are provided with the CEN-SWPOE-24 so that if the unit is not rack mounted, the rubber feet can provide stability when the unit is placed on a flat surface or stacked. These feet should be attached prior to the hookup procedure.

  • Page 13: Hardware Hookup

    Make the necessary connections as called out in the illustration that follows this paragraph. Refer to “Network Wiring” on page 6 before applying power. Apply power after all connections have been made. When making connections to the CEN-SWPOE-24, note the following: • Use Crestron power supplies for Crestron equipment.

  • Page 14: Configuration

    Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron Web site. To post a question or view questions submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. First-time users must establish a user account.

  • Page 15: Logging In To The Switch

    24-Port Managed PoE Switch Using Crestron Toolbox NOTE: To use Crestron Toolbox to access the configuration utility of the switch, the Universal Plug and Play (UPnP) Ethernet protocol configuration setting of the switch must be enabled. The UPnP protocol is enabled by default.

  • Page 16: Navigating The Configuration Utility

    The following illustrates the menu tree of the home menu. Home Menu Tree Home System Log Status Port Password Management General Time Settings Firmware Tools TCP/IP Port Port Mirroring 12 • 24-Port Managed PoE Switch: CEN-SWPOE-24 Operations Guide – DOC. 7036C...
  • Page 17 • Default Gateway: Displays the address of the switch that forwards Internet traffic from the local area network. • Host Name: Displays the host name of the switch. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 13 Operations Guide – DOC. 7036C...

  • Page 18: System Log

    To view the configuration of the ports on the switch, click on the Status selection, and then click on the Port subselection. The following image shows an example of the “Port Status” screen. “Port Status” Screen Example 14 • 24-Port Managed PoE Switch: CEN-SWPOE-24 Operations Guide – DOC. 7036C...
  • Page 19 To manage the Universal Plug and Play (UPnP), SNMP and Syslog remote logging configuration settings of the switch, click the General selection and then click the Management subselection. The “Management” screen opens. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 15 Operations Guide – DOC. 7036C...
  • Page 20 NOTE: Disabling UPnP prevents the Device Discovery Tool of the Crestron Toolbox from finding the switch on the network. As a result, the configuration utility of the switch can only be accessed from a Web browser.
  • Page 21 Click Save to save the changes, the switch must be restarted for changes to take effect. Click Save and Restart to save changes. Click Cancel to discard changes. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 17 Operations Guide – DOC. 7036C...

  • Page 22: Time Settings

    Crestron CEN-SWPOE-24 Time Settings Time settings on the CEN-SWPOE-24 are managed by Simple Network Time Protocol (SNTP), which allows the switch to set its internal clock based on periodic updates from a time server (SNTP or NTP). Maintaining an accurate time on the switch enables the system log to record meaningful dates and times for event entries.
  • Page 23 Refer to the configuration guidelines that follow. In the text box, enter the path to the filename containing the new firmware by clicking Browse… and selecting the firmware file from the Crestron Web site. NOTE: Before upgrading the firmware, be sure to read the release notes.
  • Page 24 5. Click Save to open the “Download Complete” window and save the file. 6. When the download is complete, click Close. Load the configuration file to any CEN-SWPOE-24 switch by performing the configuration restore process discussed in “Configuration Restore” section on page...
  • Page 25 24-Port Managed PoE Switch TCP/IP The default IP of the CEN-SWPOE-24 is 192.168.100.16 and the login ID is admin and the password is admin. To manually configure IP settings, set an IP address and subnet mask that is compatible with the network. It may also be necessary to establish a default gateway between the switch and management stations that exist on another network segment.
  • Page 26 100M Full: Enables 100 Mbps full-duplex operation. ⇒ 1000M Half: Enables 1000 Mbps half-duplex operation (port 25 and 26 only). ⇒ 1000M Full: Supports 1000 Mbps full-duplex operation (port 25 and 26 only). 22 • 24-Port Managed PoE Switch: CEN-SWPOE-24 Operations Guide – DOC. 7036C...

  • Page 27: Port Mirroring

    To enable port mirroring press the recessed MGMT PORT MIRROR button. All ports selected in the “Port Mirroring” screen are then mirrored to the MGMT port. The MGMT PORT MIRROR LED illuminates. Click Save to save the configuration. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 23 Operations Guide – DOC. 7036C...

  • Page 28: Problem Solving

    Crestron worldwide offices on the Crestron Web site (www.crestron.com/offices) for assistance within a particular geographic region. To post a question about Crestron products, log onto the Online Help section of the Crestron Web site (www.crestron.com/onlinehelp). First-time users must establish a user account to fully benefit from all available features.

  • Page 29: Appendix: Fast Ethernet And Gigabit Ethernet

    CAT5 cabling, with fiber optics more suited for network backbones. As the new Gigabit standard gradually integrates into existing networks, current computer applications will enjoy faster access time for network data, hardware, and Internet connections. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 25 Operations Guide – DOC. 7036C...

  • Page 30: Return And Warranty Policies

    (property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party.
  • Page 31 Crestron CEN-SWPOE-24 24-Port Managed PoE Switch This page is intentionally left blank. 24-Port Managed PoE Switch: CEN-SWPOE-24 • 27 Operations Guide – DOC. 7036C...
  • Page 32 Crestron Electronics, Inc. Operations Guide – DOC. 7036C 15 Volvo Drive Rockleigh, NJ 07647 (2028290) Tel: 888.CRESTRON 06.12 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
