Introduction

Features and Functions

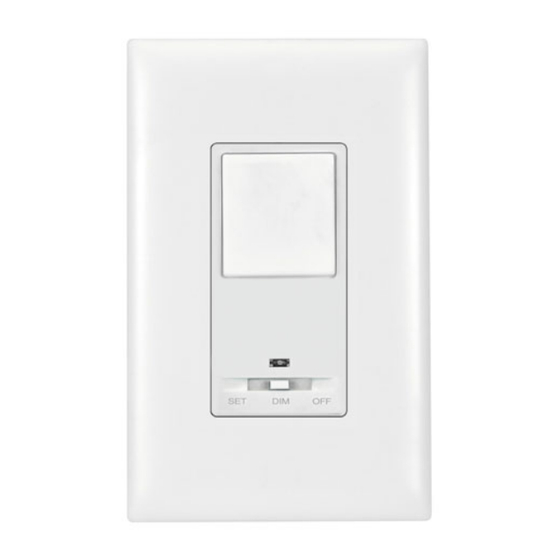

The CLW-SW1 (-SW1) is a stand-alone wall box switch
that can also act as a Cresnet
®
Crestron control processor. The -SW1 includes two
isolated, non-polarized Cresnet wires (plus a ground wire)
for connecting to a Cresnet system over a twisted pair
wire with shield.
The CLW-SW1 features a three-position mode selection
switch. Refer to "Operation " on page 5 for more
information. In the absence of Cresnet communications,
the switch can still be used to control a load.
The CLW-SWS1 (-SWS1) is similar to the -SW1 with the
added capability of working with a slave unit
(CLW-SLVS1) in a multi-switch / single circuit
application.
The CLW-SLVS1 (-SLVS1) is a slave unit that when
used in conjunction with the -SWS1 acts as an additional
switch control point in a multi-switch / single circuit
application. It does not connect to a Cresnet system and
cannot be used without a -SWS1. The -SLVS1 does not
have a mode selection switch and is not programmable. It
emulates the operation of the -SWS1 to which it is
connected unless the mode selection switch of the master
is set to "OFF".
These switches are available in white, almond, and black.
White units are designated by part numbers ending in
"W". Almond units are designated by part numbers
ending in "A". Black units are designated by part numbers
ending in "B". Each switch can be covered with a
decorative faceplate (not supplied).

Specifications

Following are specifications for the -SW1, -SWS1, and
-SLVS1.
CLW-SW1, CLW-SWS1, & CLS-SLVS1 Specifications
SPECIFICATION
Power Requirements
Default Net ID
Switch Type
Load Type
(Continued on next column)
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
CLW-SW1, SWS1, & SLVS1(W/A/B)
®
device that reports to a
DETAILS
Line Power, 120 VAC, 60 Hz
SW1: 82
SWS1: 83
Single-Pole, Single-Throw
Incandescent, Tungsten Halogen,
Fluorescent / High Intensity
Discharge (HID), Electronic Low
Voltage, Magnetic Low Voltage, Neon
/ Cold Cathode, General Purpose Fan
CLW-SW1, CLW-SWS1, & CLS-SLVS1 Specifications
(Continued)
SPECIFICATION
2-Series Control System
1,2
Update File
3
Load Ratings
Incandescent / Tungsten
Halogen
4
Magnetic Low Voltage
4
Neon / Cold Cathode
Electronic Low Voltage
Fluorescent / High
Intensity Discharge
(HID)
General Purpose Fan
Minimum Load
Operating Temperature
and Humidity
Dimensions and Weight
1. The latest software versions can be obtained from the Crestron
website. Refer to the NOTE following these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2.
Consult the latest Crestron Product Catalog for a complete list of
2-Series control systems.
3. Refer to Derating Charts for Multigang Installations on page 3.
4. VA ratings are for input power to the transformer. If you do not
know the input power requirement of the transformer, use the
bulb's wattage rating to determine proper rating.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Installation Guide – DOC. 6251A
DETAILS
Version 3.117 or later
-SW1: 1000W
-SWS1: 1000W
-SLVS1: N/A
-SW1: 1000VA/750W
-SWS1: 1000VA/750W
-SLVS1: N/A
-SW1: 1000VA/750W
-SWS1: 1000VA/750W
-SLVS1: N/A
-SW1: 1000W
-SWS1: 1000W
-SLVS1: N/A
-SW1: 8A
-SWS1: 8A
-SLVS1: N/A
-SW1: 3.0A
-SWS1: 3.0A
-SLVS1: N/A
40W / 0.5A
32°F to 104°F (0°C to 40°C )
10 to 90% Relative Humidity
(Non-Condensing)
-SW1 and -SWS1:
Height: 4.13 in (10.48 cm)
Width: 2.38 in (6.03 cm)
Depth: 1.91 in (4.85 cm)
Weight: 4.4 oz (0.61 kg)
-SLVS1:
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.91 in (4.85 cm)
Weight: 3.6 oz (0.50 kg)
2009753
07.06
Specifications subject to
change without notice.
