1.2 CYW943907AEVAL1F Board Details

The CYW943907AEVAL1F board consists of the blocks shown in Figure 1-2 and Figure 1-3.
1.
Reset Switch (SW2)
2.
RJ-45 Connector (J14)
3.
Micro USB (Programming and Debugging) (J5)
4.
5–12 V Power Input (J8)
5.
WICED Header (J6)
6.
Arduino Header (J13)
7.
User Switch 1 (SW3)
8.
User Switch 2 (SW1)
9.
Arduino Header (J9)
10. PCB Antenna-Main (ANT1)
11. Connector for External Antenna 1 (J1)
12. CYW43907 Type 1GC Module (Murata) (U14)
13. PCB Antenna-Diversity (ANT0)
14. Connector for External Antenna 0 (J2)
15. Onboard /External JTAG Switch (SW4)
16. External JTAG Header (J3)
17. Arduino Header (J10)
18. Arduino Header (J12)
19. External PHY chip (U12) – BCM5241
20. External ADC Chip (U3)
21. µSD Connector/slot (J7)
CYW943907AEVAL1F Evaluation Kit User Guide, Doc. No. 002-18703 Rev. *B

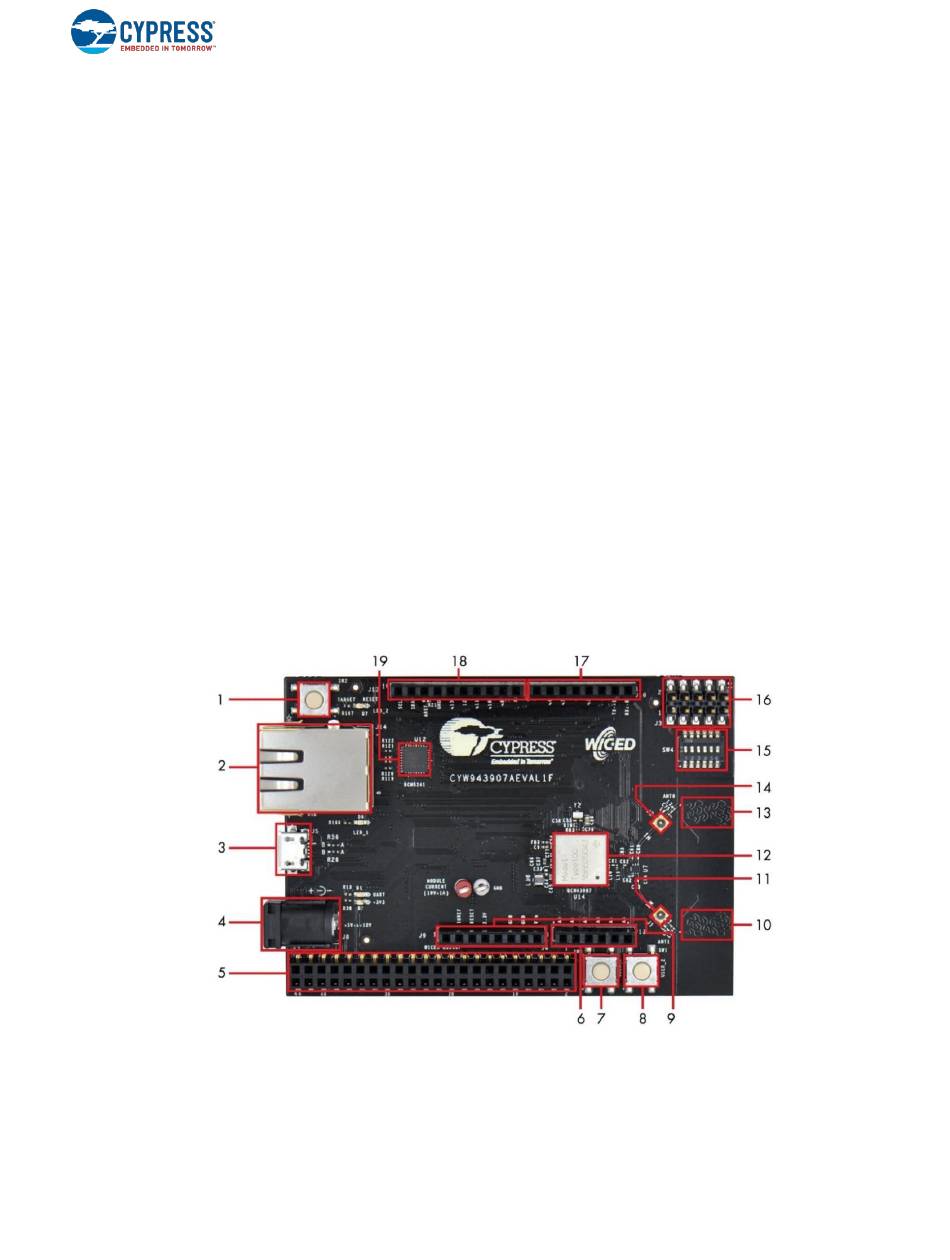

Figure 1-2. CYW943907AEVAL1F Evaluation Board
