8. Program the Starter Project. To program the device, click the External Tools
External Tools Configurations dialog opens. On the left side, expand Program and select the project, and click Run.
If needed, the IDE builds the project and displays messages in the console. If the build is successful, device programming
starts immediately. If there are build errors, error messages appear in the console.
9. Do the following to view output messages with a terminal emulation program (such as Tera Term):
a. Start the terminal emulation program.
b. Set Terminal ID to VT100 and New-Line Receive to AUTO. Leave other settings at their default values.
CYW943907AEVAL1F Evaluation Kit User Guide, Doc. No. 002-18703 Rev. *B

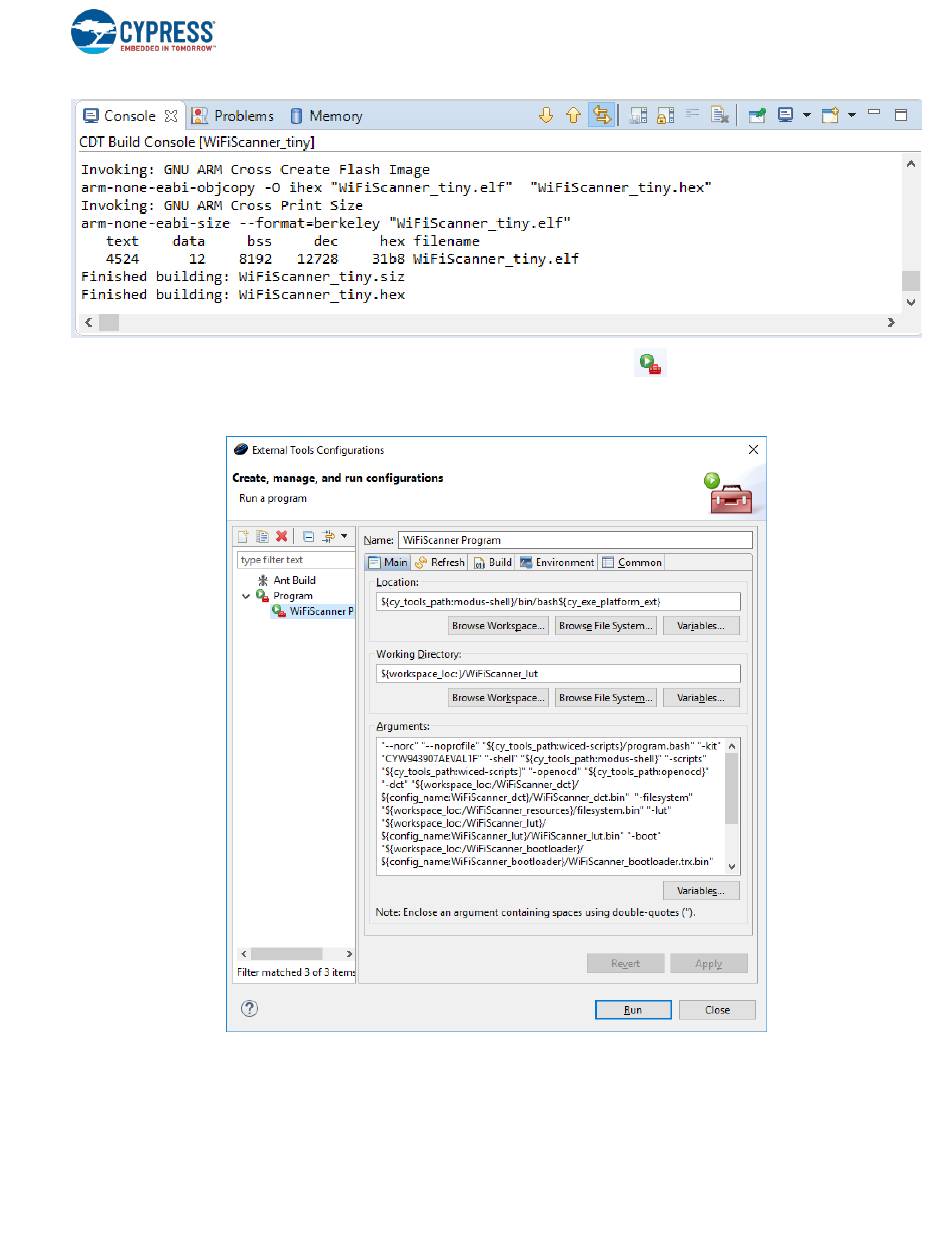

Figure 3-13. Build Console Messages
Figure 3-14. External Tool Configuration for Programming the Project
Kit Operation
button. The first time you do this, the
23
