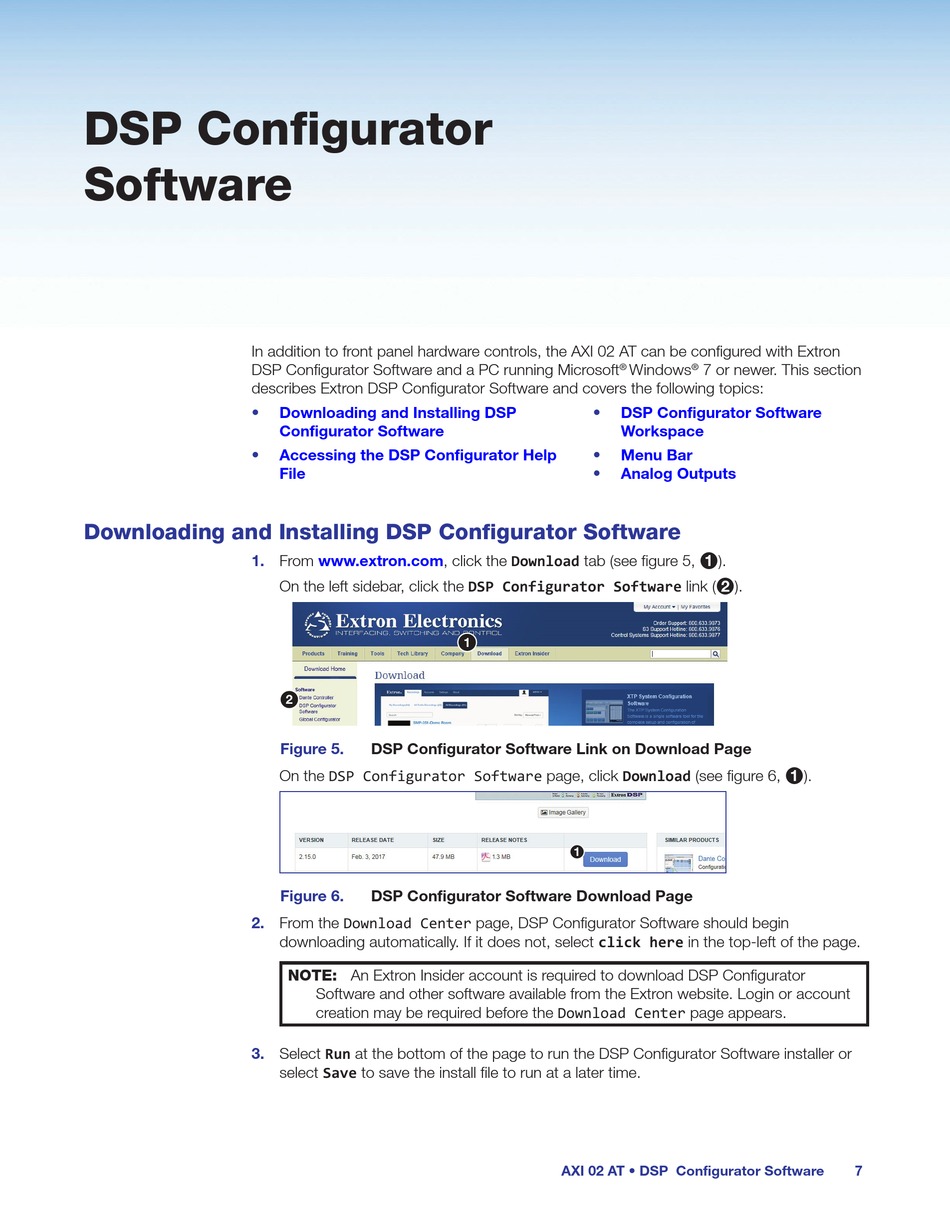

DSP Configurator
Software
In addition to front panel hardware controls, the AXI 02 AT can be configured with Extron
DSP Configurator Software and a PC running Microsoft
describes Extron DSP Configurator Software and covers the following topics:
•
•

Downloading and Installing DSP Configurator Software

1.
2.
3.
Downloading and Installing DSP
Configurator Software
Accessing the DSP Configurator Help
File
From www.extron.com, click the Download tab (see figure 5,
On the left sidebar, click the DSP Configurator Software link (
2
Figure 5. DSP Configurator Software Link on Download Page
On the DSP Configurator Software page, click Download (see figure 6,
Figure 6. DSP Configurator Software Download Page
From the Download Center page, DSP Configurator Software should begin
downloading automatically. If it does not, select click here in the top-left of the page.
NOTE: An Extron Insider account is required to download DSP Configurator
Software and other software available from the Extron website. Login or account
creation may be required before the Download Center page appears.
Select Run at the bottom of the page to run the DSP Configurator Software installer or
select Save to save the install file to run at a later time.
Windows
®
•

DSP Configurator Software

Workspace
• Menu Bar
• Analog Outputs
1
1 1 1
AXI 02 AT • DSP Configurator Software
7 or newer. This section
®
).
