Step 8: Mounting the ACP 106 D
Prior to mounting:
Feed all device cables through the wall or furniture.
1.
NOTE:
If the unit is not installed in a mud ring, you must install the plastic spacer. The spacer positions the unit to allow
the plastic faceplate to attach properly and securely.
Ensure the cables are connected to the ACP 106 D rear panel.
2.
To mount an ACP 106 D with a wall mounting bracket (mud ring):
Mark the position of the hole for the wallplate on desired
1.
wall location. Use a level to ensure the hole is marked at the
correct angle.

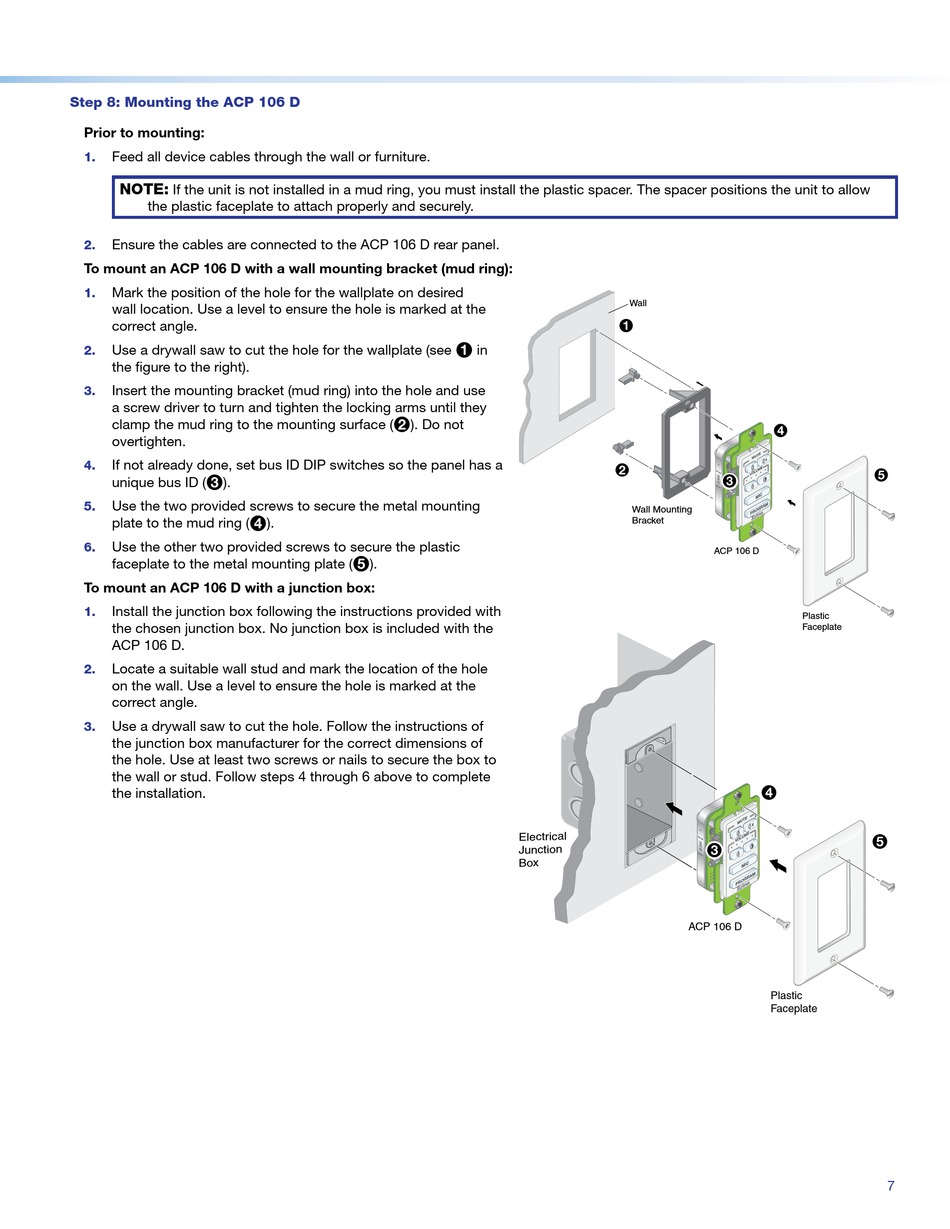

Use a drywall saw to cut the hole for the wallplate (see
2.
the figure to the right).
Insert the mounting bracket (mud ring) into the hole and use
3.
a screw driver to turn and tighten the locking arms until they
clamp the mud ring to the mounting surface (
overtighten.
If not already done, set bus ID DIP switches so the panel has a
4.
unique bus ID ( 3 ).
Use the two provided screws to secure the metal mounting
5.
plate to the mud ring (
Use the other two provided screws to secure the plastic
6.
faceplate to the metal mounting plate (
To mount an ACP 106 D with a junction box:
Install the junction box following the instructions provided with
1.
the chosen junction box. No junction box is included with the
ACP 106 D.
Locate a suitable wall stud and mark the location of the hole
2.
on the wall. Use a level to ensure the hole is marked at the
correct angle.
Use a drywall saw to cut the hole. Follow the instructions of
3.
the junction box manufacturer for the correct dimensions of
the hole. Use at least two screws or nails to secure the box to
the wall or stud. Follow steps 4 through 6 above to complete
the installation.
