Remove the label insert from the button lens cap.
3.
Select one of the button labels from the printed label sheet included with the device. Remove the label from its backing and
4.
remove the clear protective film from the front of the label.
Insert the button label into the button lens cap (see
5.
Align the button lens cap with the white diffuser and the panel opening, then press the button lens cap into place on the
6.
button.
Attach the plastic faceplate to the ACP 100. Align the openings of the faceplate with the buttons and knob and place the
7.
plastic faceplate against the unit. The four magnetic catches fasten the faceplate onto the unit.
To replace the rotary knob:
Remove the plastic faceplate as described at the bottom of the previous page.
1.
Firmly grasp the knob and pull it away from the ACP 100.
2.
Align the ridge inside the new knob with the channel on the knob control and allow the magnet in the knob to snap into place.
3.
Reattach the plastic faceplate to the unit as described in step 7 above.
4.

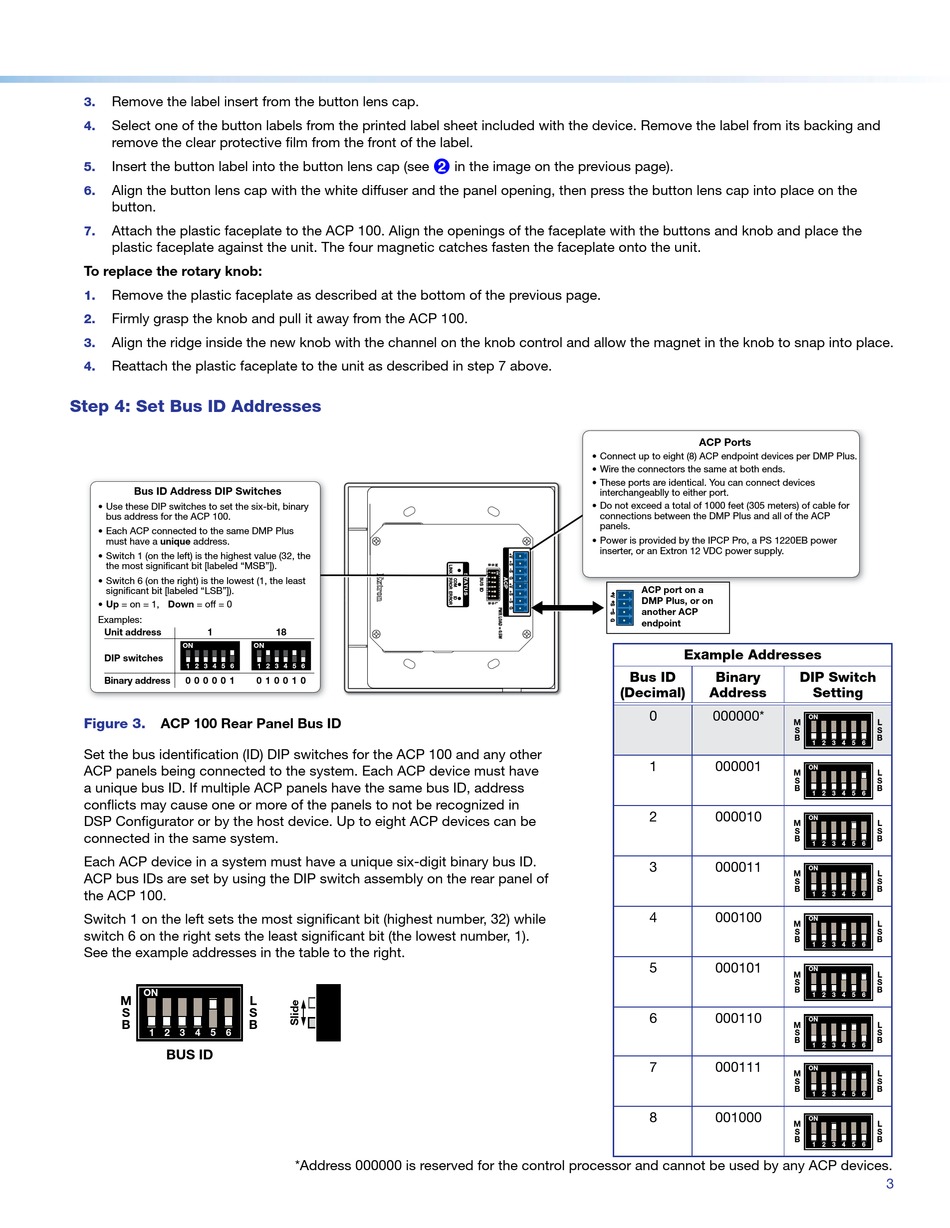

Step 4: Set Bus ID Addresses
Bus ID Address DIP Switches
• Use these DIP switches to set the six-bit, binary
bus address for the ACP 100.
• Each ACP connected to the same DMP Plus
must have a unique address.
• Switch 1 (on the left) is the highest value (32, the
the most signi cant bit [labeled "MSB"]).
• Switch 6 (on the right) is the lowest (1, the least
signi cant bit [labeled "LSB"]).
• Up = on = 1, Down = off = 0
Examples:
Unit address 1
ON
DIP switches
1 2 3 4 5 6
Binary address
0 0 0 0 0 1
ACP 100 Rear Panel Bus ID
Figure 3.
Set the bus identification (ID) DIP switches for the ACP 100 and any other
ACP panels being connected to the system. Each ACP device must have
a unique bus ID. If multiple ACP panels have the same bus ID, address
conflicts may cause one or more of the panels to not be recognized in
DSP Configurator or by the host device. Up to eight ACP devices can be
connected in the same system.
Each ACP device in a system must have a unique six-digit binary bus ID.
ACP bus IDs are set by using the DIP switch assembly on the rear panel of
the ACP 100.
Switch 1 on the left sets the most significant bit (highest number, 32) while
switch 6 on the right sets the least significant bit (the lowest number, 1).
See the example addresses in the table to the right.
ON
M
S
B B
1 2 3 4 5 6
BUS ID
18
ON
1 2 3 4 5 6
0 1 0 0 1 0
L
S
*Address 000000 is reserved for the control processor and cannot be used by any ACP devices.
2 in the image on the previous page).
• Connect up to eight (8) ACP endpoint devices per DMP Plus.
• Wire the connectors the same at both ends.
• These ports are identical. You can connect devices
interchangeablly to either port.
• Do not exceed a total of 1000 feet (305 meters) of cable for
connections between the DMP Plus and all of the ACP
panels.
• Power is provided by the IPCP Pro, a PS 1220EB power
inserter, or an Extron 12 VDC power supply.
ACP Ports
ACP port on a
DMP Plus, or on
another ACP
endpoint
Example Addresses
Bus ID Binary DIP Switch
(Decimal) Address
0 000000*
M
S
B
1 000001
M
S
B
2 000010
M
S
B
3 000011
M
S
B
4 000100
M
S
B
5 000101
M
S
B
6 000110
M
S
B
7 000111
M
S
B
8 001000
M
S
B
Setting
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
ON
L
S
B
1 2 3 4 5 6
3
