PARTS REFERENCE

5.4 PLAYFIELD ASSEMBLIES, BOTTOM

1
9
1
2
4
5
6
10
11

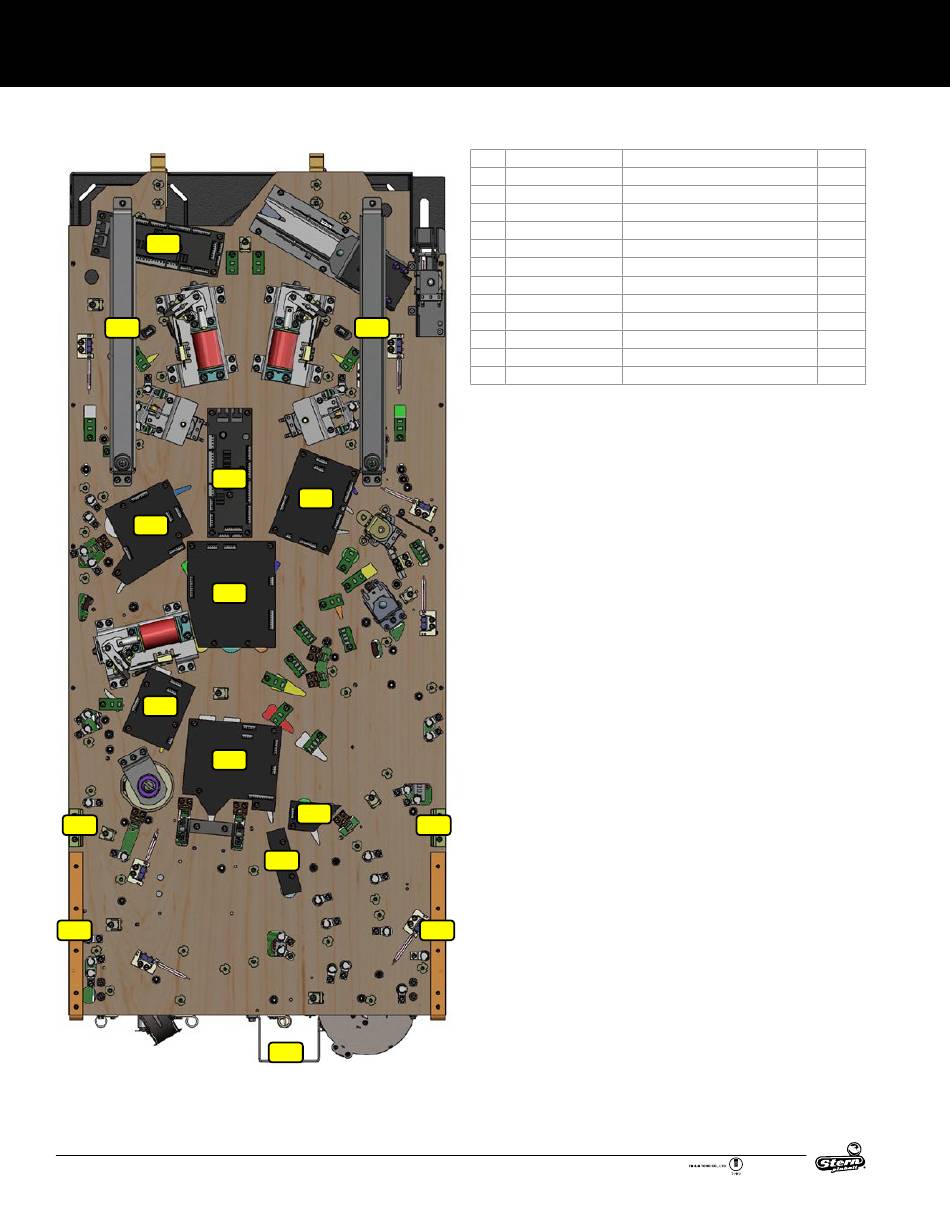

Figure 5.4.1. Major playfield assemblies, Bottom locations.
38
9
3
7
10
8
11
12
GODZILLA PRO MANUAL 500-55T5-01
ID Part Number Description
1 520-7017-72 Core Node Driver Board
2 520-8532-00 LED Board - 8c
3 520-8533-00 LED Board - 8b
4 520-8534-00 LED Board - 9a
5 520-8536-00 LED Board - 9b
6 520-8537-00 LED Board - 9c
7 520-8538-00 LED Board - 9a1
8 520-8539-00 LED Board - 9a2
9 535-0781-01 Playfield Support Rail
10 530-5133-00 Pivot Pin
11 535-5988-01 Edge Slide Bracket
12 535-2288-00 Handle
Qty
2
1
1
1
1
1
1
1
2
2
2
1
