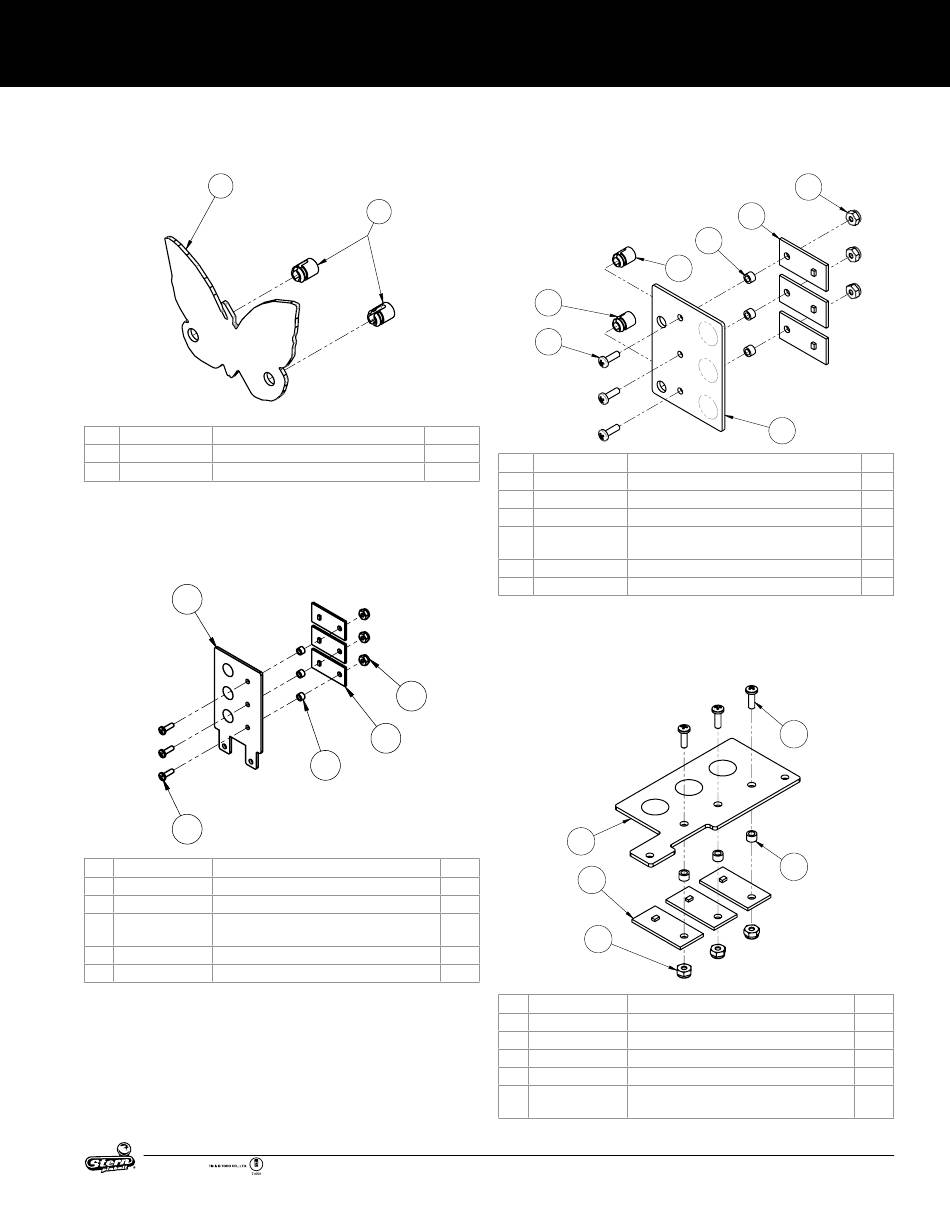

5.26 PLASTIC 67 ASSEMBLY

511-5930-67
1
ID Part Number Description
1 830-1156-67 PLASTIC, GODZILLA PRO, -67
2 254-5007-02 1/4" SELF RETAINING SPACER

5.27 PLASTIC 71 ASSEMBLY

511-5930-71
1
ITEM PART
NO. NUMBER
1 830-1156-67 PLASTIC, SPECTRE PRO, -67
2 254-5007-02 1/4" SELF RETAINING SPACER
5
ID Part Number Description
1 830-1156-71 PLASTIC, GODZILLA PRO, -71
2 520-5307-00 SINGLE LED PCB
3 254-5090-03 PLASTIC SPACER #4 SCREW, 3/16" OD -
1/8" LENGTH
4 240-5303-00 4-40 NYLON LOCK NUT
5 237-5997-00 SCREW, 4-40 X 3/8" PPH MS BLACK
2
Qty
1
2
DESCRIPTION QTY.
1
2
4
2
3
Qty
1
3
3
3
3
GODZILLA PRO MANUAL 500-55T5-01

5.28 PLASTIC 77 ASSEMBLY

511-5930-77
6
6
3
ID Part Number Description
1 830-1156-77 PLASTIC, GODZILLA PRO, -77
2 520-5307-00 SINGLE LED PCB
3 237-5997-00 SCREW, 4-40 X 3/8" PPH MS BLACK
4 254-5090-03 PLASTIC SPACER #4 SCREW, 3/16" OD -
1/8" LENGTH
5 240-5303-00 4-40 NYLON LOCK NUT
6 254-5007-02 1/4" SELF RETAINING SPACER

5.29 PLASTIC 83 ASSEMBLY

511-5930-83
1
2
4
ID Part Number Description
1 830-1156-83 PLASTIC, GODZILLA PRO, -83
2 520-5307-00 SINGLE LED PCB
3 237-5997-00 SCREW, 4-40 X 3/8" PPH MS BLACK
4 240-5303-00 4-40 NYLON LOCK NUT
5 254-5090-03 PLASTIC SPACER #4 SCREW, 3/16" OD -
1/8" LENGTH
