Ball Guide 01 Assembly; Ball Guide 02 Assembly; Ball Guide 03 Assembly; Ball Guide 05 Assembly - Stern Pinball GODZILLA PRO Service And Operation Manual

PARTS REFERENCE

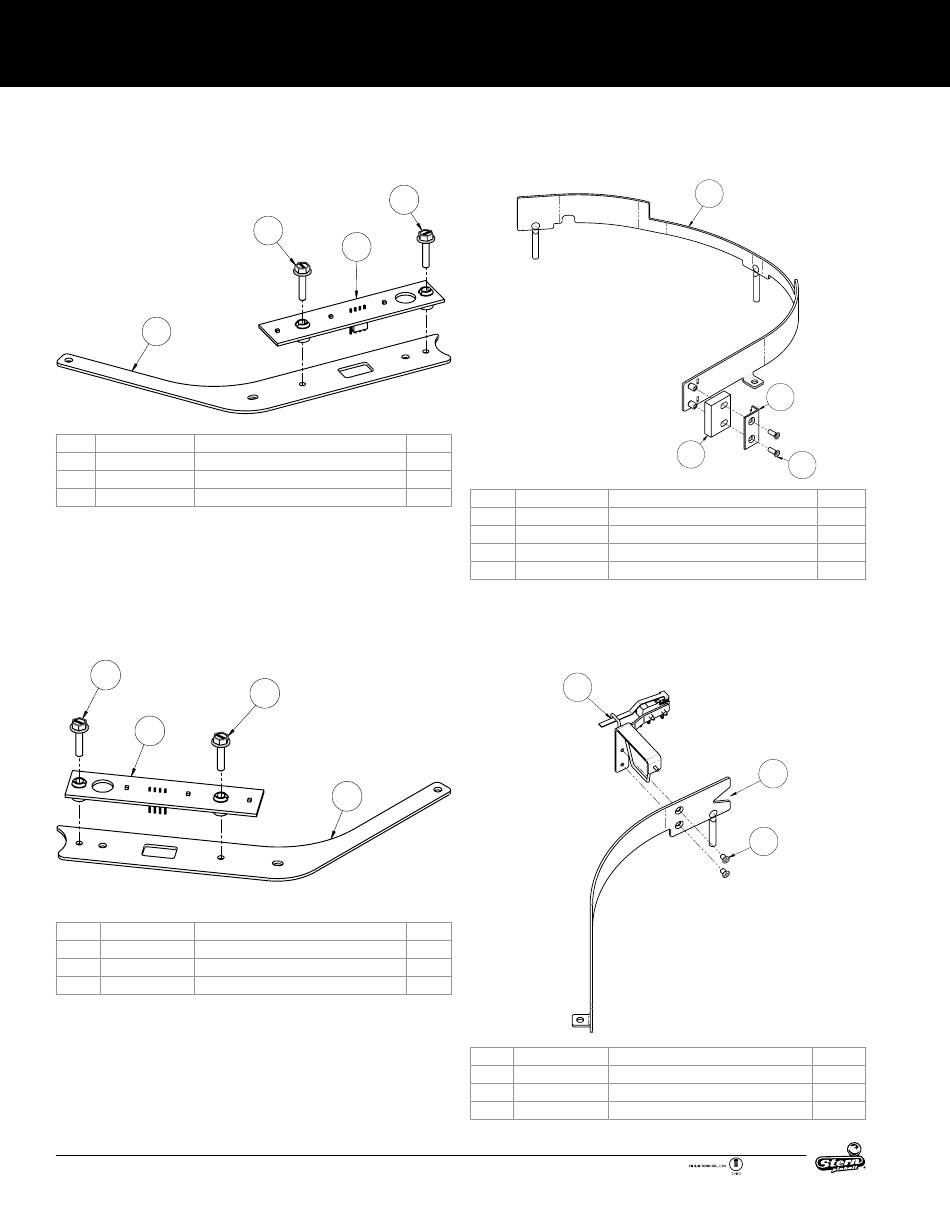

5.36 BALL GUIDE 01 ASSEMBLY

511-5773-01
1
ID Part Number Description
1 535-2477-02 BALL GUIDE, INLANE, LIGHTED
2 520-8531-00 PCA INLANE 3W LED BOARD
3 237-5976-04 SCREW, 6-32 X 5/8" HWH SWAGE

5.37 BALL GUIDE 02 ASSEMBLY

511-5773-02
3
2
ID Part Number Description
1 535-2477-02 BALL GUIDE, INLANE, LIGHTED
2 520-8531-00 PCA INLANE 3W LED BOARD
3 237-5976-04 SCREW, 6-32 X 5/8" HWH SWAGE
52
3
3
2
Qty
1
1
2
3
1
Qty
1
1
2
GODZILLA PRO MANUAL 500-55T5-01

5.38 BALL GUIDE 03 ASSEMBLY

511-5773-03
ID Part Number Description
1 535-2477-03 BALL GUIDE, GODZILLA, -03
2 237-6151-00 SCREW, 4-40 X 5/16" PFH U/C MS
3 535-9366-01 BUMPER HOLDER
4 626-5057-01 RUBBER BUMPER - BLUE

5.39 BALL GUIDE 05 ASSEMBLY

511-5773-05
2
ID Part Number Description
1 535-2477-05 BALL GUIDE, GODZILLA, -05
2 511-7963-00 RAMP ROLLUNDER GATE, ASM
3 237-6087-00 4-40 x 3/16 PFH MS - ZINC
1
3
4
2
Qty
1
2
1
1
1
3
Qty
1
1
2
