PARTS REFERENCE

5. PARTS REFERENCE

5.1 PLAYFIELD RUBBER PARTS

13
12
13
13
3
5
4
12

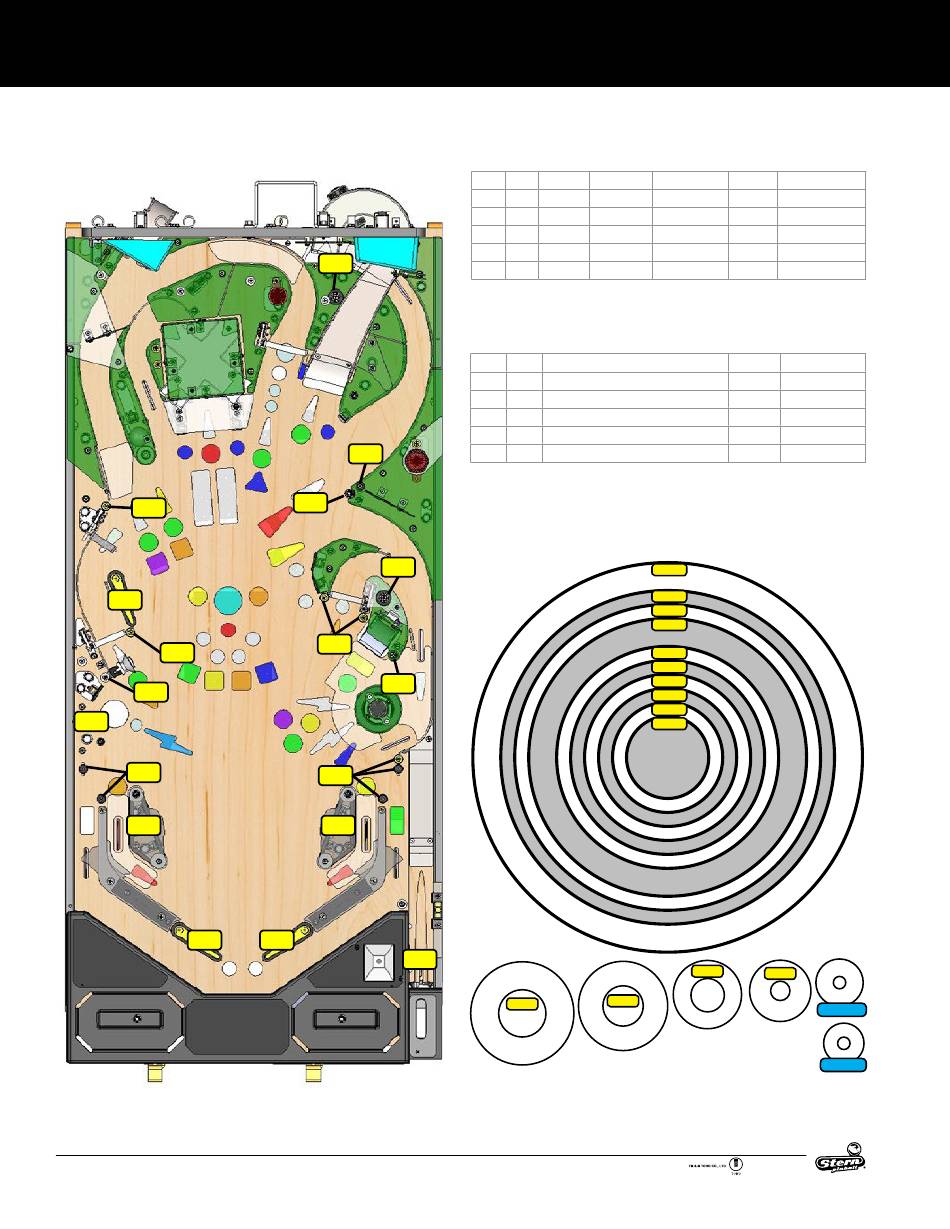

Figure 5.1.1. Rubber o-ring part locations
36
1
5
13
2
13
5
5
4
12
11
GODZILLA PRO MANUAL 500-55T5-01
RUBBER O-RINGS
ID Qty Size (ID) Size (OD)
1 1 3/8"
2 1 7/16"
3 1 1-1/2"
4 2 2-1/2"
5 7 7/16"
Figure 5.1.2. Rubber o-ring part numbers and usage. ID: Inner Diameter,
OD: Outer Diameter, Durometer: Higher number is firmer, less bounce,
and more durable.
ID Qty Description
11 1 Plunger Tip
12 3 Flipper Rubber
13 6 Post Sleeve
14 2 Bumper Pad (Sub assemblies)
15 3 Bumper Pad (Flippers)
Figure 5.1.3. Other rubber part numbers and usage

5.2 RUBBER SIZE CHART

3/8"
7/16"
Figure 5.2.1. Rubber ring inner diameter sizing tool. Hold ring up to
chart and read largest size on inside of ring. Dimensions are Inner
Diameter (ID) unless otherwise noted as Outer Diameter (OD).
Durometer Color Part Number
50 Black 545-5348-03
50 Black 545-5348-18
50 Black 545-5348-07
50 Black 545-5348-09
50 Black 545-5348-17
Color Part Number
Black 545-5276-00
Black 545-5277-00
Black 545-5308-00
Black 545-5105-00
Black 545-5428-00
3-1/2"
3"
2-3/4"
2-1/2"
2"
1-3/4"
1-1/2"
1-1/4"
1"
3/4"
5/16"
3/16"
7/16" OD
3/8" OD
