Backbox Parts; Speaker Panel Parts - Stern Pinball GODZILLA PRO Service And Operation Manual

5.5 BACKBOX PARTS

4
3
1
7

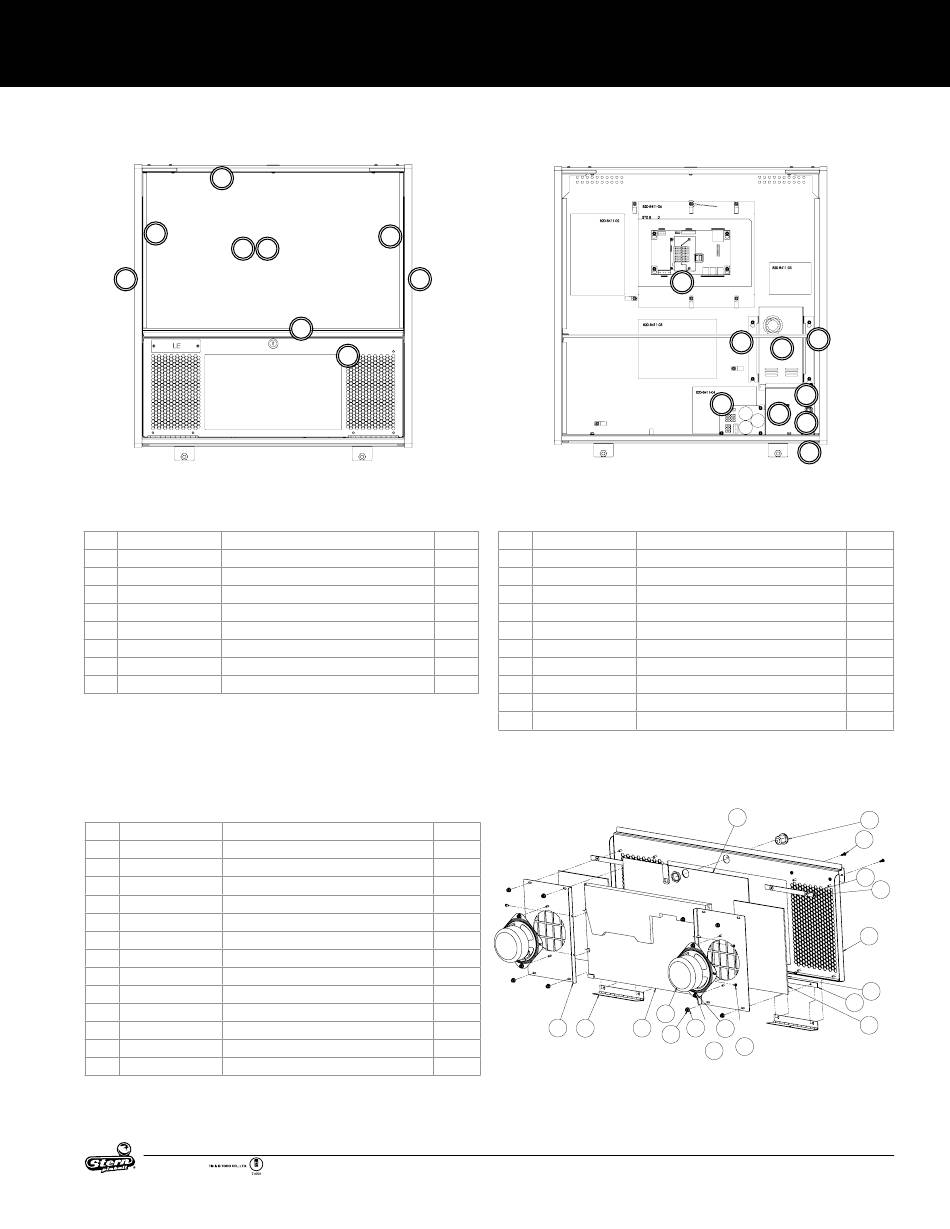

Figure 5.5.1. Backbox external assemblies and components
EXTERNAL
ID Part Number Description
1 660-5052-00 Backglass
2 830-8427-T5 Translite Art
3 545-5018-17 Plastic Extrusion 15-.450"
4 545-5018-15 Glass Channel 26"
5 545-6313-01 Glass Lift Channel 26"
6 500-9996-00 LCD Speaker Panel Assembly
7 820-76T5-01 Left Backbox Decal
8 820-76T5-02 Right Backbox Decal

5.6 SPEAKER PANEL PARTS

500-9996-00
ID Part Number Description
1 031-5004-02 Speaker
2 116-0023-00 1366 x 768 Display LCD Panel
3 237-6188-01 Screw, M3x0.5 X 6MM PPH Sems Zinc
4 237-6307-06 6-32 X 3/8" Torx Stainless Steel Screw
5 240-5005-00 6-32 Nylon Stop Nut
6 242-5001-00 #6 Washer
7 355-5168-00-00 Nut: Lock w/ Cam
8 515-9842-00 Speaker Panel - LCD
9 515-9843-00 Speaker Plate
10 515-9845-00 Hinge, Speaker Panel, LCD
11 545-9877-00 LCD Window
12 545-9877-01 Spacer, Small - LCD Speaker Panel
13 626-5109-00 Speaker Foam - LCD Panel
3
2
8
5
6
Qty
1
1
2
1
1
1
1
1
Qty
2
1
4
2
12
16
1
1
2
2
1
4
2
GODZILLA PRO MANUAL 500-55T5-01
LCD BACKBOX
5009995-XX
Figure 5.5.2. Backbox internal assemblies and components
INTERNAL
ID Part Number Description
1 509-1003-01 CPU Node Board
2 520-8096-00 Power Distribution Board
3 011-5003-00 Power Supply 48V/500W
4 515-9769-00 Utility Outlet (USA)
5 205-5001-00 Fuse Holder-Screw in
200-5000-05 8A SB Fuse
6 535-1130-00 Cover AC
7 535-1129-00 Power Supply Bracket
8 535-1129-01 Power Supply Bracket
9 180-5001-03 Power Switch
9 10 2
PARTS REFERENCE
1
8
7
3
5
2
6
4
9
SPEAKER/LCD PANEL PARTS
500-9996-XX
11
1
6 6
5
3
5
LCD BACKBOX
DOMESTIC VERSION
500-9995-XX
Qty
1
1
1
1
1
1
1
1
1
1
7
4
6
12
8
13
12
13
39
