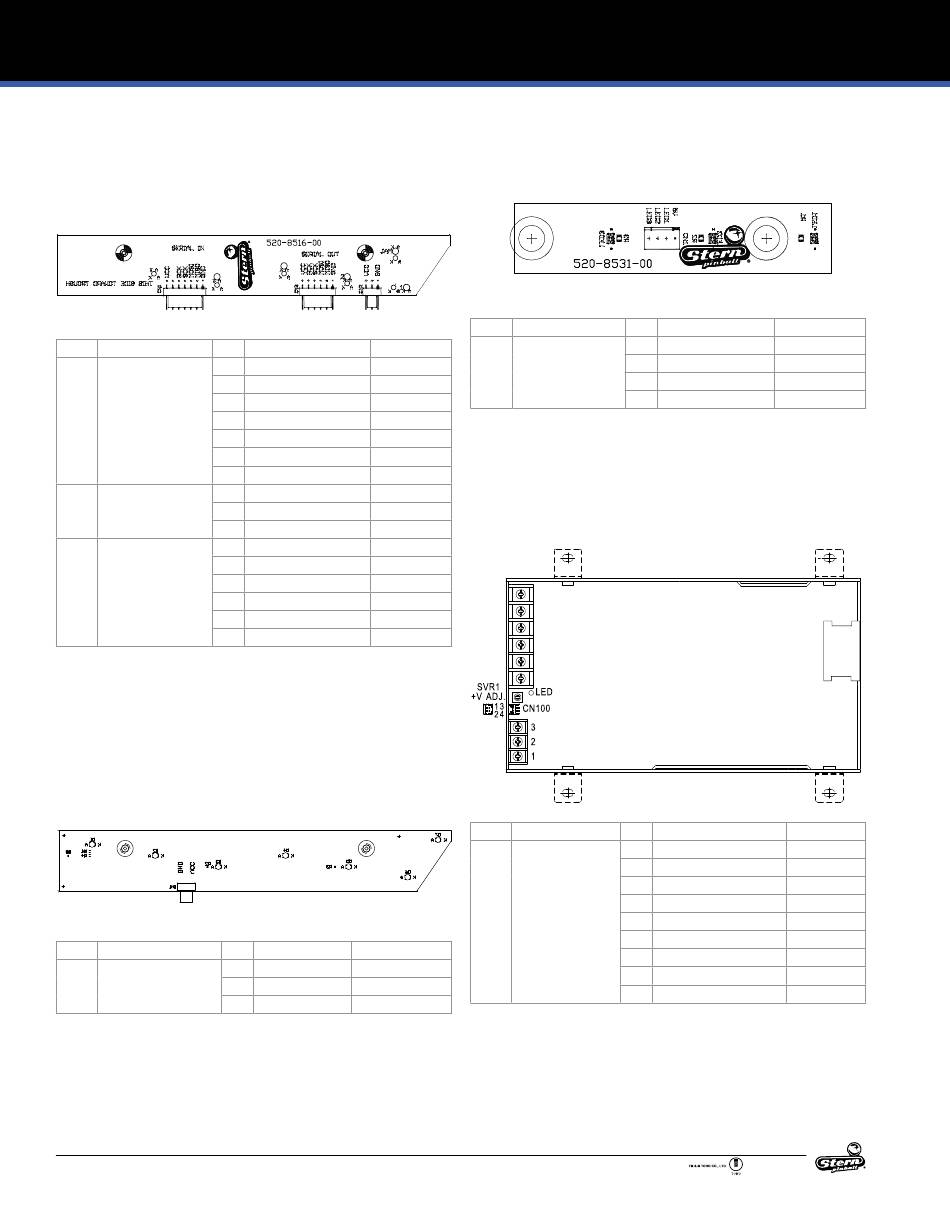

ELECTRONIC PINOUTS AND SCHEMATICS
4.12 TROUGH SERIAL OPTO
RECEIVER 8A
520-8516-00
ID Type Pin
CN1 .100" 7-Pin Header 1
2
3
4
5
6
7
CN2 .100" 3-Pin Header 1
2
3
CN3 .100" 6-Pin Header 1
2
3
4
5
6
4.13 TROUGH SERIAL OPTO
TRANSMITTER
520-5344-00
ID Type Pin
CN1 .100" 3-Pin Header 1
2
3
34
Description Wire Color
Ground BLK
MISO Output Data VIO-BLK
MOSI Input Data VIO-BRN
SCK Serial Clock VIO-RED
RCK Register Clock VIO-ORG
N/C -
+5 VDC IN RED
Ground -
N/C -
+5 VDC IN -
Ground -
MISO Output Data -
MOSI Input Data -
SCK Serial Clock -
RCK Register Clock -
V+ -
Description Wire Color
Ground BLK
N/C -
+5 VDC IN RED
GODZILLA PRO MANUAL 500-55T5-01

4.14 OUTLANE 3-W LED BOARD

520-8531-00
ID Type Pin
CN1 .100" 4-Pin Header 1
2
3
4

4.15 MAIN POWER SUPPLY

011-5003-00
9
8
7
6
5
4
ID Type Pin
CN1 Screw Terminal 1
2
3
4
5
6
7
8
9
Description Wire Color
+5 VDC RED
LED 1 YEL-BRN
LED 2 YEL-RED
LED 3 YEL-ORG
Description Wire Color
AC Line Hot In BLK
AC Line Neutral In WHT
Earth Ground In GRN
DC Ground BLK
DC Ground BLK
DC Ground BLK
+48 V System Power GRY
+48 V System Power GRY
+48 V System Power GRY
