PARTS REFERENCE

5.4 PLAYFIELD ASSEMBLIES, BOTTOM

1
8
4
3
6
9
10

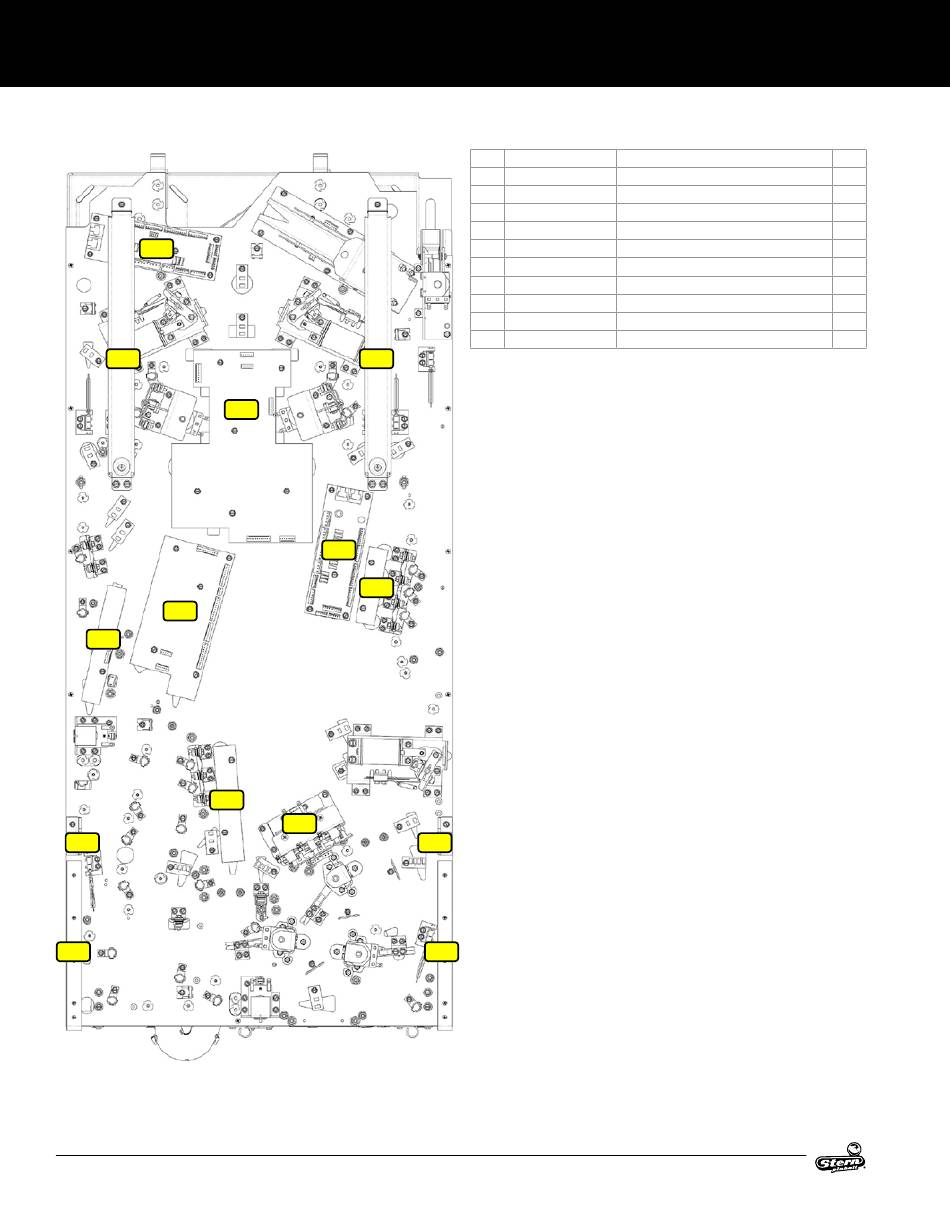

Figure 5.4.1. Major playfield assemblies, Bottom locations.
44
8
2
1
5
7
LED ZEPPELIN PRO MANUAL 500-55R5-01
ID Part Number
1 520-7017-72
2 520-8486-00
3 520-8490-00
4 520-8489-00
5 520-8487-00
6 520-8494-00
7 520-8488-00
8 535-0781-01
9 530-5133-00
10 535-5988-01
9
10
Description
Core Node Driver Board
LED Board - 8b
LED Board - 9a1
LED Board - 9a
LED Board - 8b1
LED Board - 9a2
LED Board - 9a3
Playfield Support Rail
Pivot Pin
Edge Slide Bracket
©2020 Mythgem, LTD.
Qty
2
1
1
1
1
1
1
2
2
2
