Loudspeaker Client Side; Positioning Of The Client Side Loudspeaker - Commend C-GEC881S.C Service Manual

Mounting of the client side

Loudspeaker client side

The outside loudspeaker must have 4 to 16 ohms impedance and shall not be mounted to far from the
wall socket, because otherwise a larger cable diameter is required. For greater distances a 16 Ohm
loudspeaker is preferable. This loudspeaker allows a line length up to 4 times as large as compared to
a 4 ohm loudspeaker.
Connection of multiple loudspeakers in series or parallel is allowed as long as the impedance of the
entire circuit does not drop below 4 ohms.
AL10-16
For "Technical Data"
When using line arrays (like e.g. AL10-16) the directivity of the array should be used to address only
the parts of the outside area, in which the customer is situated. Depending on the building construction
the line array is positioned in horizontally or vertically

Positioning of the client side loudspeaker

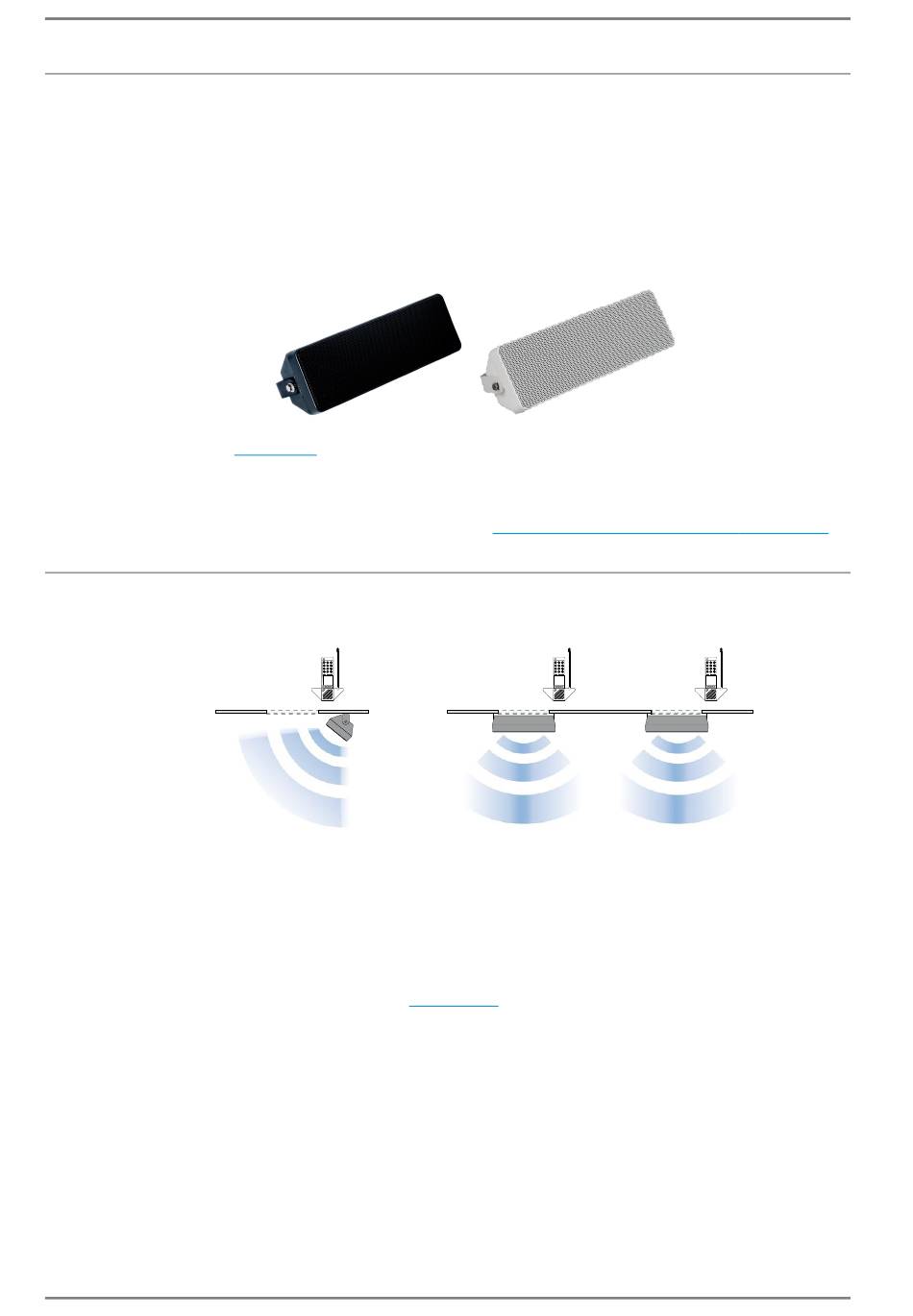

Example for a single counter:
In this setup the speech of the
operator is audible in the entire
area in front of the counter.
Settings
If operating more than one call stations GEC 882 side by side, feature "AHC" (via parameter "NLP" in
service mode) has to be switched on (value 3 = already active in standard), to compensate for the
acoustic coupling between the call stations
10
see page 5.
(see page
(see "Mounting of the client side" on page
Example for multiple counters:
Example how to utilize the directivity of a speaker line array
(e.g. AL10-16) for separately addressing individual queues via
horizontal mounting above the counter.
11).
