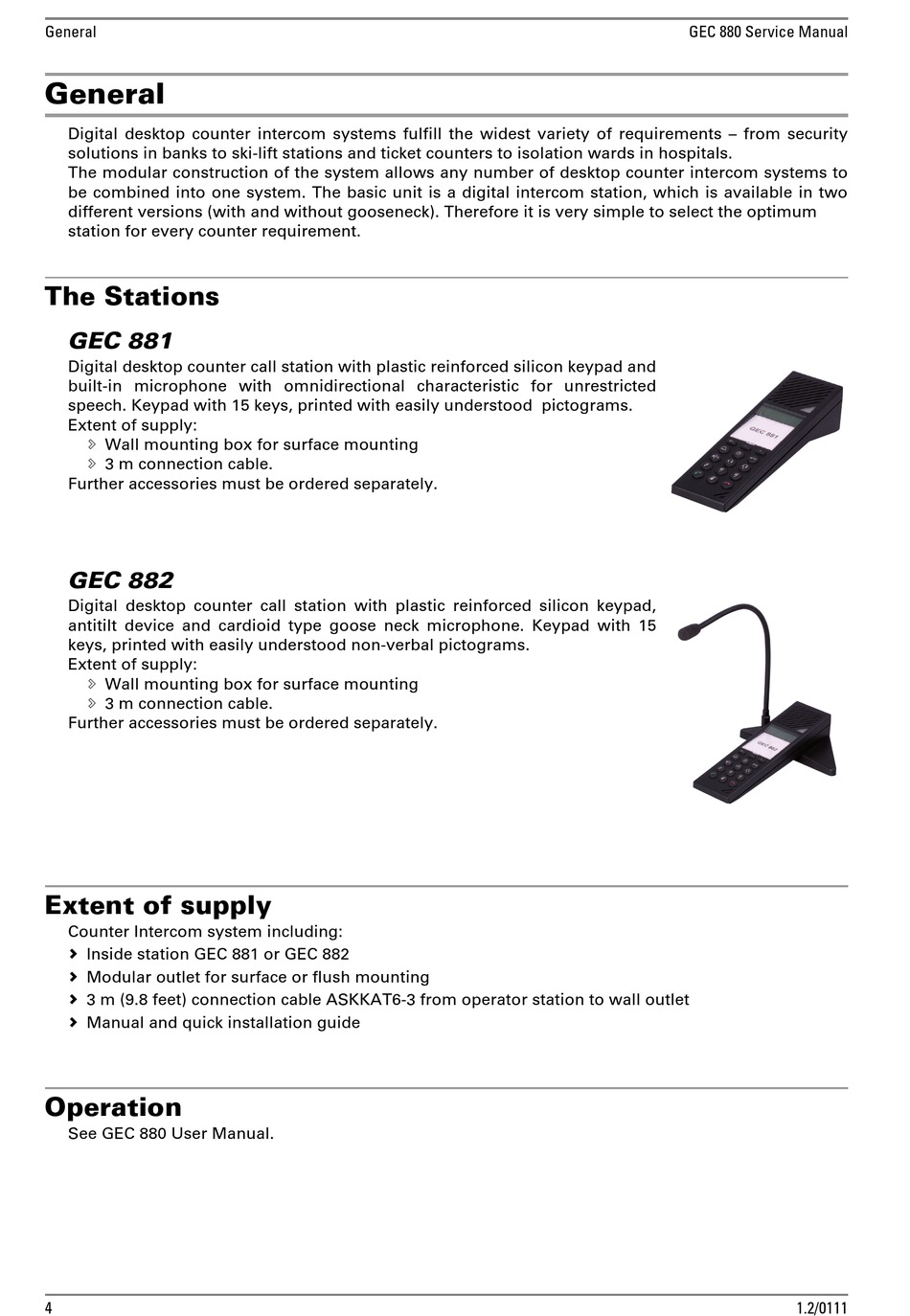

General

General
Digital desktop counter intercom systems fulfill the widest variety of requirements – from security
solutions in banks to ski-lift stations and ticket counters to isolation wards in hospitals.
The modular construction of the system allows any number of desktop counter intercom systems to
be combined into one system. The basic unit is a digital intercom station, which is available in two
different versions (with and without gooseneck). Therefore it is very simple to select the optimum
station for every counter requirement.

The Stations

GEC 881
Digital desktop counter call station with plastic reinforced silicon keypad and
built-in microphone with omnidirectional characteristic for unrestricted
speech. Keypad with 15 keys, printed with easily understood pictograms.

Extent of supply:

 Wall mounting box for surface mounting
 3 m connection cable.
Further accessories must be ordered separately.
GEC 882
Digital desktop counter call station with plastic reinforced silicon keypad,
antitilt device and cardioid type goose neck microphone. Keypad with 15
keys, printed with easily understood non-verbal pictograms.
Extent of supply:
 Wall mounting box for surface mounting
 3 m connection cable.
Further accessories must be ordered separately.
Extent of supply
Counter Intercom system including:
 Inside station GEC 881 or GEC 882
 Modular outlet for surface or flush mounting
 3 m (9.8 feet) connection cable ASKKAT6-3 from operator station to wall outlet
 Manual and quick installation guide

Operation

See GEC 880 User Manual.
4
GEC 880 Service Manual
1.2/0111
