2.3.1. AV-source(s)

The c.LOGiC interface has the possibility to connect and remotely control by navigation
buttons up to 2 pre-programmed devices. The device list in the device control table shows
the pre-programmed remote channels and the related IR-remote cables STA-xxx which must
be ordered separately for the control of the device.

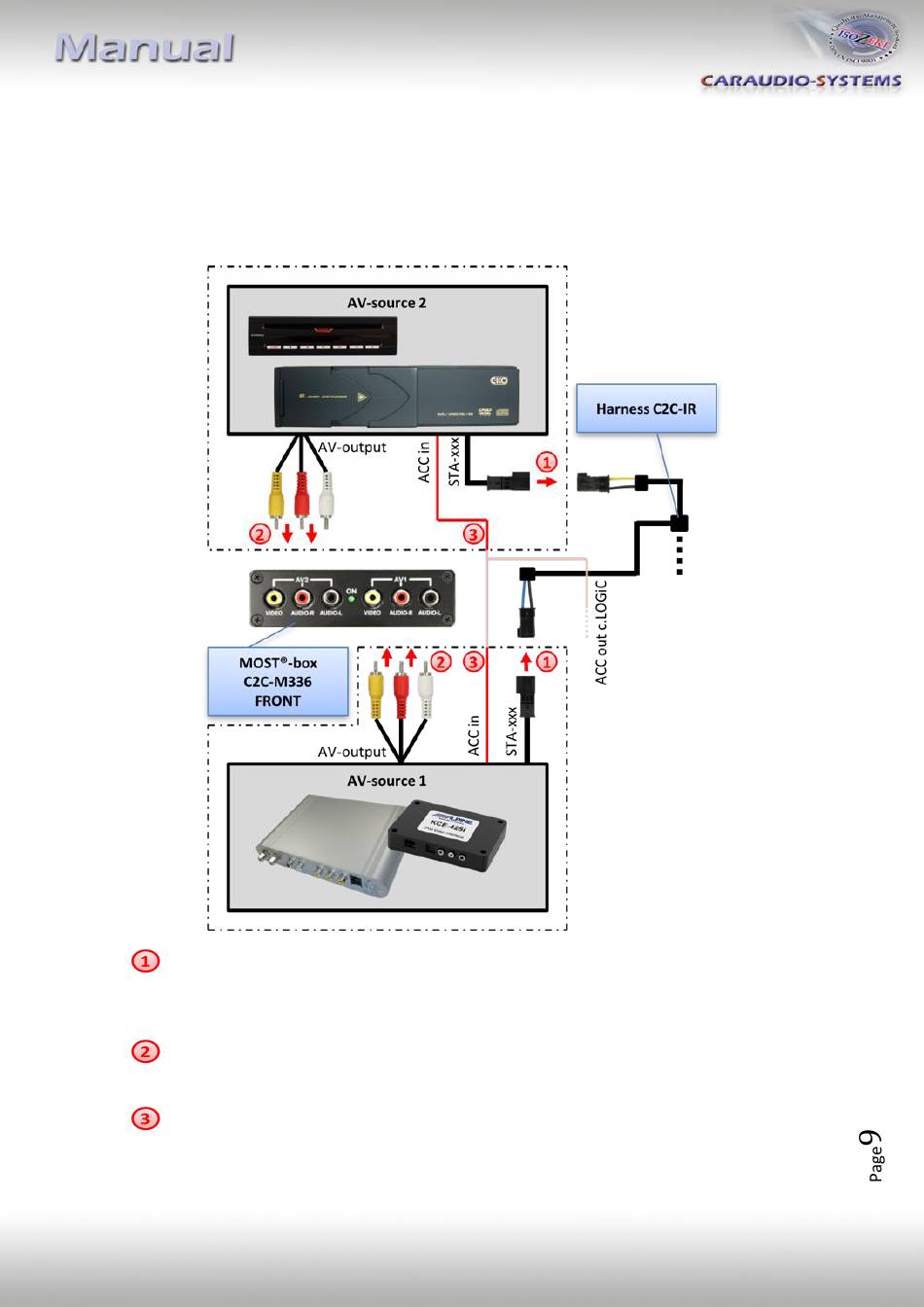

Using the respective STA-xxx IR-control cable(s), interconnect the blue (yellow)
female 3pin AMP connector of harness C2C-IR and the IR-port of AV-source 1 (AV-
source 2).
Using RCA cable(s), interconnect the female RCA port AV1(AV2) of the MOST®-box
C2C-M336 with the AV-output of the AV-source 1 (AV-source 2).
The pink ACC-output wire (+12V max 1A) of harness C3C-BMW0x can be connected
to the ACC-input wires of the connected device to switch it on. It carries +12V when
the navigation computer is running.
