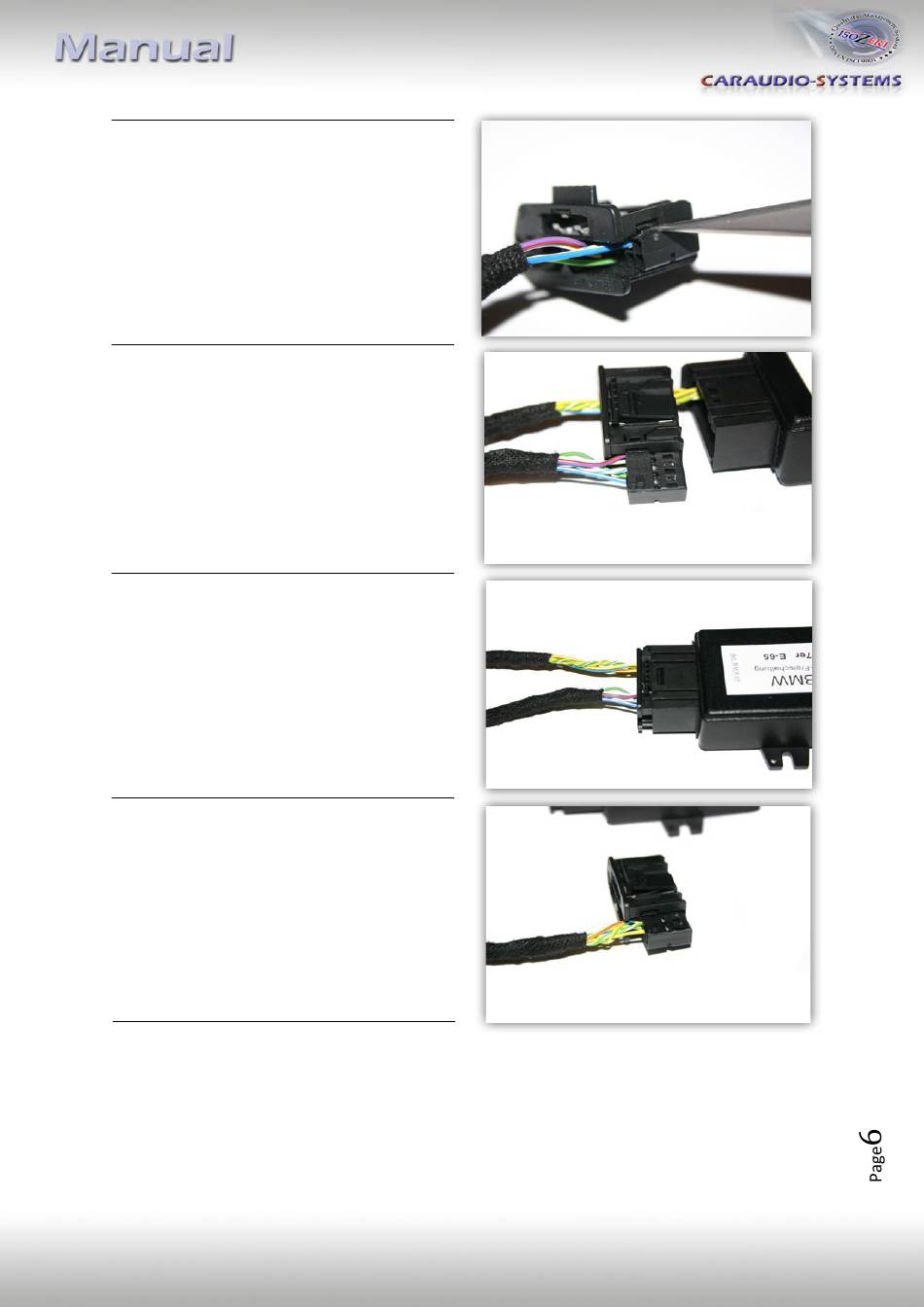

Remove 12-pin insert from black vehicle
harness connector.
Insert 12-pin insert into black connector
of the CAN interface harness TV-BM65.
Insert the completed black connector into
CAN interface harness TV-BM65.
Connect 12-pin insert from CAN interface
harness TV-BM65 into black connector from
vehicle harness.
Insert completed connector into the plug on the backside of the navigation monitor.
Connect 8pin Molex connector of TV-BM65 to CAN-box TV-436.
NOTE: Pictures do NOT show the fibre optics connected in car!
Version 20.09.2017
C2-E65-TV
