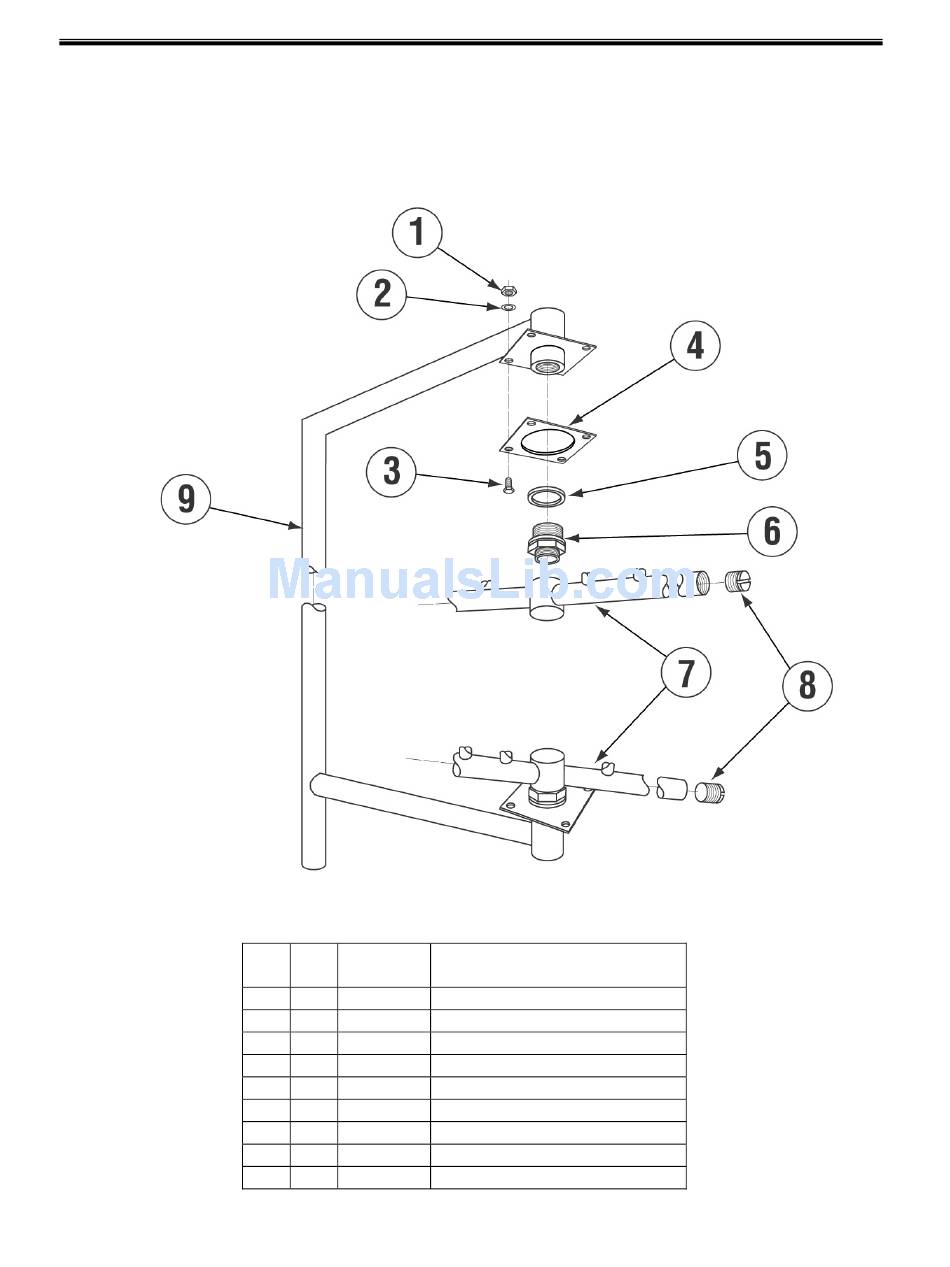

1.3.3. Spray System Assembly
MODEL GL-X PARTS MANUAL Rev. 1.01 –02/12/08
ITEM
NO.
P/N
NO.
REQ'D
1
8
00912.00
2
16
00924.00
3
8
00929.00
4
2
04306.00
5
2
04305.10
6
2
04303.00
7
2
00304.03
8
4
00308.50
9
1
04304.00
DESCRIPTION
1/4"-20 Nylon Lock Nut
1/4" SS Washer
1/4"-20 x 3/4" Truss Head Bolt
Square Manifold Gasket
Red Silicon Gasket
Spray Arm Bearing
Spray Arm "B" Series
Spray Arm End Plug
GL-X Spray Manifold
Parts Manual
Page
7
