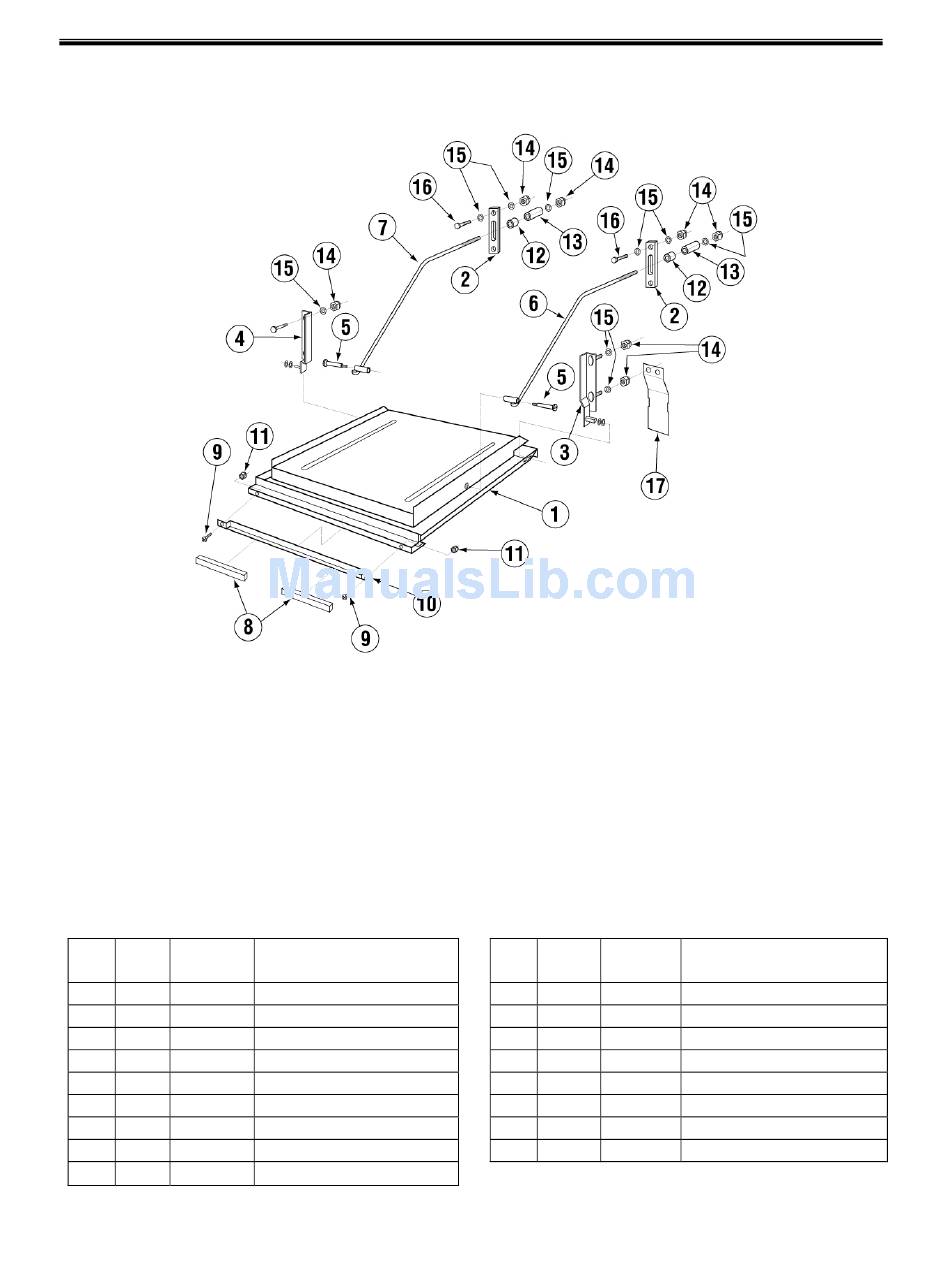

1.3.2. GLX Door Assembly

P/N 15905.10 DOOR ASSEMBLY INCLUDES ITEMS: 1,5,7,9,10,11,13,14 & 15.
ITEM NO.
P/N
NO. REQ'D
1 1 15906.60
2 2 04517.60
3 1 14570.00
4 1 14570.50
5 2 04919.00
6 1 04918.60
7 1 04919.50
8 2 00557.80
9 2 00970.60
MODEL GL-X PARTS MANUAL Rev. 1.01 –02/12/08
DESCRIPTION
GL-X Door
Door Support Rod Block
Door Hinge
Door Hinge (LH)
Door Rod Screw
Door Support Rod Right
Door Support Rod Left
Door Magnet
6 32 x 1/2" Flathead Screw
Parts Manual
ITEM NO.
P/N
NO. REQ'D
10 1 14558.61
11 2 00965.00
12 2 00605.20
13 2 04517.15
14 10 00912.00
15 14 00924.00
16 4 00914.10
17 2 14518.00
DESCRIPTION
Door Magnet Holder
6-32 Lock Nut
Door Rod Spacer
Door Stop (Parallel)
1/4"-20 Nylon Lock Nut
1/4" SS Washer
1/4"-20 x 5/8" Hex Head Bolt
Splash Guard
