Keep with machine for reference

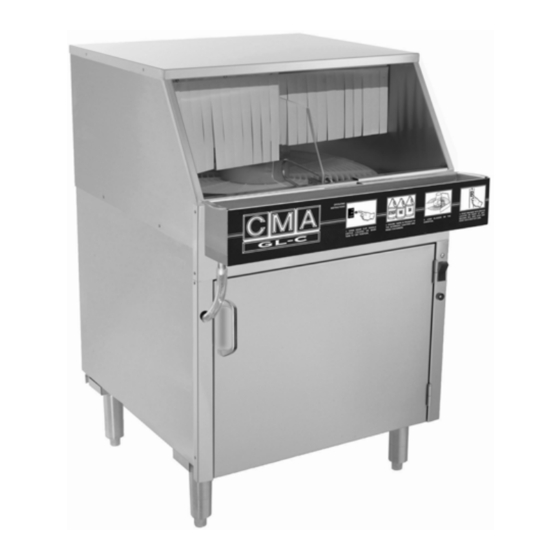

MODEL GLC
PARTS MANUAL
REV.1.02A
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
1
Page
MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-GL-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CMA Dishmachines CMA-GL-C

Summary of Contents for CMA Dishmachines CMA-GL-C

  • Page 1 Owner’s Manual Keep with machine for reference MODEL GLC PARTS MANUAL REV.1.02A C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 1 4 - 8 9 5 - 2 1 4 1...

  • Page 2: Table Of Contents

    PARTS MANUAL ...4 1.1. 1100.47... 4 NITIAL ARTS IT P 1.2. XPLODED RAWINGS 6.2.1. Main Assembly... 5 6.2.2. Conveyor Wheel / Curtain ... 6 6.2.3. Conveyor Shut-Off Rod Assembly... 7 6.2.4. Control Box Assembly ... 8 6.2.5. Soap Tank Assembly ... 9 6.2.6.

  • Page 3: Model Gl-C

    ... 16 Page MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007...

  • Page 4: Parts Manual

    GL-C Curtain – Half Size 41015.70 Solenoid Valve 3/8" 220V NOTE: Important! CMA recommends that the initial parts kit be purchased immediately and kept on hand as a back up supply of critical parts in the event your machine should require emergency service.

  • Page 5: Exploded View Drawings

    1.2. Exploded View Drawings 6.2.1. Main Assembly ITEM DESCRIPTION REQ’D 05004.00 Upper Spray Base Inlet Tube 14754.10 Grommet 03101.47 Clamp #6 03106.47 Braided Hose 3/8” 14755.00 Wash Arm 14752.00 Upper Spray Base 00924.00 Washer,1/4” 00910.00 Bolt, 1/4-20 x 1 1/2" 00940.60 Screw, 10-32 x 3/8”...

  • Page 6: Conveyor Wheel / Curtain

    6.2.2. Conveyor Wheel / Curtain ITEM DESCRIPTION REQ’D 16505.00 Curtain Support 16505.30 Curtain Support-Small 13703.47 GL-C Curtain 13703.57 GL-C Half Curtain 16505.10 Curtain Clamp 16505.40 Curtain Clamp-Small 00927.00 Nut, 8-32 00911.50 Screw, 8-32 x 3/8” 16550.00 Tray- Right MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 Parts Manual ITEM DESCRIPTION...

  • Page 7: Conveyor Shut-Off Rod Assembly

    6.2.3. Conveyor Shut-Off Rod Assembly MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 00940.50 Truss Head Screw 10-32 x 3/8” 16520.00 Conveyor Shut-off Rod 16521.00 Activator 00935.00 Socket Set Screw, 1/4-20 x 1/4” 16514.30 Nut Plate 00472.47 Conveyor Shut Off Switch 00438.00 Snap Bushing Universal 875-11 04806.00 #10 Brass Washer...

  • Page 8: Control Box Assembly

    6.2.4. Control Box Assembly ITEM DESCRIPTION REQ’D 16503.00 GL-C Control Box 00470.10 Toggle Switch Rubber Boot 13417.89 Heater Thermostat (EGO) 13418.47 Auto- Fill Timer 15520.00 Power Block 12 Position 03475.00 Primer Switch - Push Button 00820.00 GL-C Peri Pump Circuit Board 16504.00 GL-C Control Box Lid 00631.47...

  • Page 9: Soap Tank Assembly

    6.2.5. Soap Tank Assembly ITEM DESCRIPTION REQ’D 03101.49 Hose Clamp #24 03106.40 Ribbed Drain Hose 1 1/2" ID 03101.00 Hose Clamp # 16 1" 03108.60 Transfer Hose 1" Reinforced 03106.45 Braided Hose 1/2" 03101.47 Hose Clamp #6 05012.00 1/2 Cu Ref Tubing (Per Foot) 16541.00 Soap tank 16544.00...

  • Page 10: Water Inlet Plumbing

    6.2.6. Water Inlet Plumbing ITEM DESCRIPTION REQ’D 41015.70 Solenoid Valve 3/8” 220V 41015.77 Flow Washer 3/8" Solenoid Valve Repair Kit 3/8" Solenoid Valve Cover 41015.75 3/8" Solenoid Valve Coil 40010.00 GL-C 3/8” MPT Tee 40017.00 GL-C 1/2 x 3/8” FPT Reducer 00715.47 GL-C 3/8"...

  • Page 11: Sanitizer Plumbing Component Hardware

    6.2.7. Sanitizer Plumbing Component Hardware ITEM DESCRIPTION REQ’D 00120.00 Thermometer 40011.00 3/8" FPT Cross Connector 40012.00 3/8" MPT x 1/2" 90° Hose Barb 00826.00 Dual Inlet Chemical Injector 00425.51 Chemical Tubing Blue 00425.54 Chemical Tubing White 16526.00 Gauge Bracket 00924.00 Lock Washer, 1/4 00912.00 Nut, 1/4-20...

  • Page 12: Vacuum Breaker And Hardware

    6.2.8. Vacuum Breaker and Hardware ITEM DESCRIPTION REQ’D 03624.00 1/2" Vacuum Breaker 00421.51 6-32 x 1/4” SS Panhead Screw 00739.50 Vacuum Breaker Cap 03624.25 1/2” Vacuum Breaker Bonnet 03623.00 1/2” Vacuum Breaker Repair Kit MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 Parts Manual ITEM DESCRIPTION...

  • Page 13: Gl-C Wash Pump Assembly

    6.2.9. GL-C Wash Pump Assembly ITEM DESCRIPTION REQ’D 03106.45 1/2" Braided Hose 03101.47 Hose Clamp #6 00434.47 Pump Hose Adapter 03101.00 Hose Clamp #16 03108.60 Transfer Hose 1" Reinforced 00914.10 1/4-20 X 5/8 Hexhead Bolt MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 Parts Manual ITEM DESCRIPTION...

  • Page 14: Conveyor Drive Assembly

    6.2.10 Conveyor Drive Assembly 6.2.11 GL-C Waste Collector Assy. P/N 16565.00 ITEM DESCRIPTION REQ’D 14751.00 Drive Gear 00104.83 VA Drain Motor Shaft Gasket 16570.50 Drive Motor Housing 00811.47 Extension Spring MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 Parts Manual ITEM DESCRIPTION REQ’D 00438.00 Snap Bushing Universal 875-11...
  • Page 15 ITEM REQ’D MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 DESCRIPTION 16562.00 GL-C Waste Collector Screen 16560.00 GL-C Waste Collector Tray 06231.47 GL-C Label 03106.51 Clear Vinyl Tubing 1/2” ID x 3/4”OD 00899.01 Cleaning Drill not shown 00899.02 Cleaning Brush not shown Parts Manual Page...

  • Page 16: Unique Parts For Glc Tall (Effective 06/27/07)

    6.2.12 Unique Parts for GLC Tall (Effective 06/27/07) ITEM DESCRIPTION REQ’D 16431.00 Base Assy 2” taller 16430.00 Wash Tank Assy 2” taller 16402.00 Side Panel Wrap 2” taller 16406.00 Door Assy. 2” taller 13703.43 Curtain 2” longer MODEL GL-C Parts MANUAL Rev. 1.02–6/27/2007 Parts Manual ITEM DESCRIPTION...
