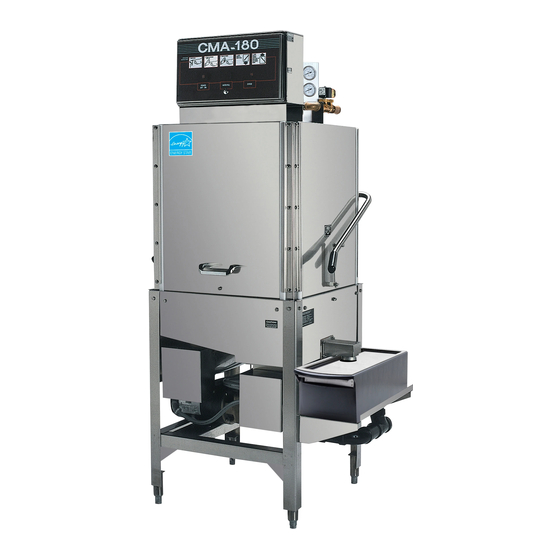

CMA Dishmachines CMA-180 TALL Owner's Manual
Hide thumbs
Also See for CMA-180 TALL:
- Parts manual (24 pages) ,
- Installation and operation manual (21 pages) ,
- Quick setup instructions (2 pages)
Table of Contents
Advertisement
Quick Links
Owner's Manual
Keep with machine for reference
MODELS CMA-180/180 TALL
Including 480V MACHINES
Installation and Operation
Rev 2.07
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com
Advertisement
Table of Contents
Related Manuals for CMA Dishmachines CMA-180 TALL
Summary of Contents for CMA Dishmachines CMA-180 TALL
- Page 1 Owner’s Manual Keep with machine for reference MODELS CMA-180/180 TALL Including 480V MACHINES Installation and Operation Rev 2.07 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E...
-
Page 2: Table Of Contents
QUICK SERVICE GUIDE .................. 14 INITIAL PARTS KIT P/N 1100.17 ..............15 AUTO-FILL SOLID STATE TIMER ..............16 WIRE DIAGRAM FOR CMA-180 WITH BOOSTER HEATER ....17 WIRE DIAGRAM FOR CMA-180 BOOSTER ONLY ........18 WIRE DIAGRAM FOR CMA-180 WITHOUT BOOSTER HEATER ..19 WIRE DIAGRAM FOR 480V 180 WITHOUT BOOSTER HEATER ... -
Page 3: Model Cma-180
DIMENSIONS DEPTH 25” (63.5cm) WIDTH 25 ½” (65cm) HEIGHT 59”-60” (150-152cm) STANDARD TABLE HEIGHT 34” (86.3cm) MAX CLEARANCE FOR DISHES 17 ½” (44cm) DRAIN CONNECTION (OFF FLOOR) 11 ½“ – 12½“ (29-32cm) Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 4: Cma-180/Cma-180T
1.1. CMA-180/CMA-180T ELECTRICAL RATING VOLTS PHASE AMPS WITHOUT BOOSTER ELECTRICAL RATING WITH BOOSTER SHIPPING WEIGHT 332# WITHOUT BOOSTER 375# WITH BOOSTER Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 5: Getting Started
Operation of the CMA-180 is automatic. When the door is opened and then closed, the wash cycle begins automatically. To initially fill the machine daily, open the hand operated fill valve (optional auto fill available) on the top of the machine. -
Page 6: Receiving And Installation
Electrical and pluming connections must be made by qualified person who comply with all available Federal, State, and Local Health, Electrical, Plumbing and Safety codes Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... - Page 7 The individual conductors need to be connected as shown on the wire diagram below. Probe wires are to be striped, crimped on barrel male and female connectors provided, and connected to the pre-wired violet wires in the control box. Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07...
- Page 8 The reference manual supplied with the dispenser shows you how to program it. Keep in mind while reading the reference manual that the CMA-180 operates in “probe” mode. (This mode is selected by setting a value of “1” in screen 21).
-
Page 9: Exhaust Fan Control Kit P/N 17528.00 Instructions
7. Connect power source of 220 Vac or 110 Vac to L1 and L2 (N) on fan control contactor. 8. Connect exhaust fan motor to T1 and T2 on other side of fan control contactor. Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 10: Water Tempering Kit (Optional)
2.2.5. Water Tempering Kit (Optional) Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 11: Installation Checklist
After the machine has warmed up for five to ten minutes (5 – 10 min.), observe the wash and rinse temperatures. The wash temperature must be 155°F minimum. The rinse temperature must be 180°F minimum. If necessary, adjust Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... - Page 12 When water is observed entering the wash tank this indicates the booster tank is full and removed wire can be connected. Failure to follow these important instructions will destroy the heating element because of dry -firing. Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07...
-
Page 13: Electrical Requirements
Refer to Figure 1-B, for proper wiring instruction for both triangular booster and wash heaters conversion. SINGLE PHASE POWER NOTE: 80amp service is required when CMA-180 is wired for single-phase with the booster heater. See “Wiring options” section for DUAL 1-phase power supply. -
Page 14: Wiring Options
Install power supply wires, L1, L2 and L3 (3-Phase) to the appropriate terminals marked L1, L2, and L3 on the power block. (If applicable, the high or “wild” leg must be connected to the L2 Terminal.) Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 15: Quick Service Guide
Machine does not operate when the door is closed Check cam timer motor Replace timer if needed, P/N 00409.17 Check ice cube relay Replace if faulty, P/N 00631.05 Replace contactor, P/N 00404.85 Faulty wash pump contactor Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 16: Initial Parts Kit P/N 1100.17
Immersion Heater 6 Kw 3hp/1ph, 240V 17523.51 Hi Limit Switch 250 deg NOTE: CMA recommend that this Model CMA-180 initial parts kit be kept on hand, as a back up supply, in the event your machine should require emergency service. -
Page 17: Auto-Fill Solid State Timer
Pre-selected delay period can be adjusted by turning dip switches on for proper time setting. Removal of input power will reset the control. AUTO-FILL SWITCH violet violet WATER SOLENOID VALVE orange blue blue Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 18: Wire Diagram For Cma-180 With Booster Heater
2. Wire Diagram for CMA-180 With Booster Heater Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 19: Wire Diagram For Cma-180 Booster Only
3. Wire Diagram for CMA-180 Booster Only GROUND RINSE SIGNAL DETERGENT HI LIMIT SWITCH WASH TANK ADJ. 12kW PUMP THERMOSTAT HEATER MOTOR BOOSTER HEATER Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 20: Wire Diagram For Cma-180 Without Booster Heater
4. Wire Diagram for CMA-180 Without Booster Heater Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 21: Wire Diagram For 480V 180 Without Booster Heater
5. Wire Diagram for 480V 180 Without Booster Heater Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07... -
Page 22: Wire Diagram For 480V 180 With Booster Heater
6. Wire Diagram for 480V 180 With Booster Heater Page MODEL CMA-180 INSTALLATION & OPERATION Rev. 2.07...
