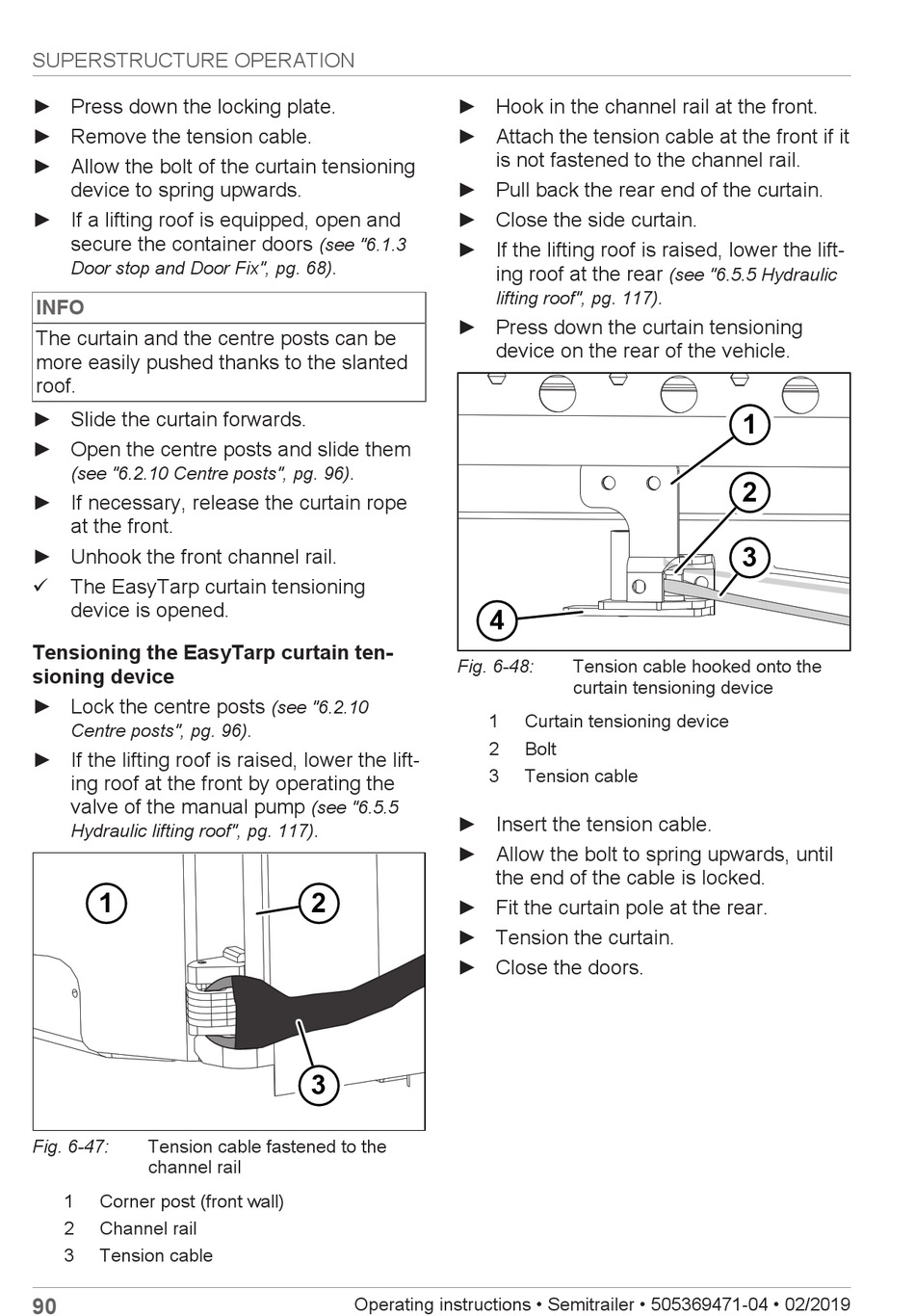

SUPERSTRUCTURE OPERATION
► Press down the locking plate.
► Remove the tension cable.
► Allow the bolt of the curtain tensioning
device to spring upwards.
► If a lifting roof is equipped, open and
secure the container doors
Door stop and Door Fix", pg. 68)
INFO
The curtain and the centre posts can be
more easily pushed thanks to the slanted
roof.
► Slide the curtain forwards.
► Open the centre posts and slide them
(see "6.2.10 Centre posts", pg. 96)
► If necessary, release the curtain rope
at the front.
► Unhook the front channel rail.
ü
The EasyTarp curtain tensioning
device is opened.
Tensioning the EasyTarp curtain ten-
sioning device
► Lock the centre posts
Centre posts", pg. 96)
► If the lifting roof is raised, lower the lift-
ing roof at the front by operating the
valve of the manual pump
Hydraulic lifting roof", pg. 117)
1
Fig. 6-47: Tension cable fastened to the
channel rail
1 Corner post (front wall)
2 Channel rail
3 Tension cable
90
(see "6.1.3
.
.
(see "6.2.10
.
(see "6.5.5
.
2
3
Operating instructions • Semitrailer • 505369471-04 • 02/2019
► Hook in the channel rail at the front.
► Attach the tension cable at the front if it
is not fastened to the channel rail.
► Pull back the rear end of the curtain.
► Close the side curtain.
► If the lifting roof is raised, lower the lift-
ing roof at the rear
lifting roof", pg. 117)
► Press down the curtain tensioning
device on the rear of the vehicle.
4
Fig. 6-48: Tension cable hooked onto the
curtain tensioning device
1 Curtain tensioning device
2 Bolt
3 Tension cable
► Insert the tension cable.
► Allow the bolt to spring upwards, until
the end of the cable is locked.
► Fit the curtain pole at the rear.
► Tension the curtain.
► Close the doors.
(see "6.5.5 Hydraulic
.
1
2
3
