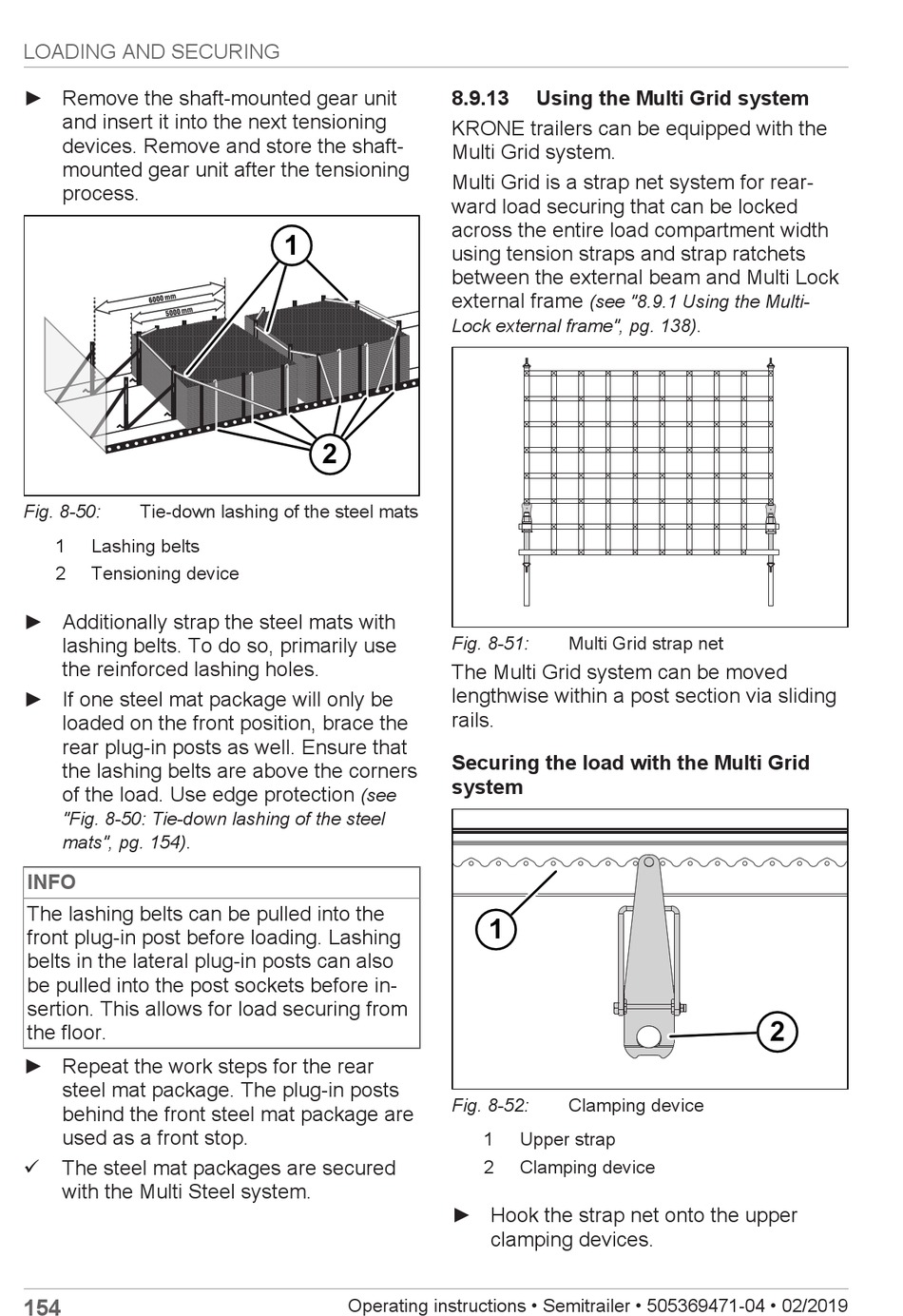

LOADING AND SECURING
► Remove the shaft-mounted gear unit
and insert it into the next tensioning
devices. Remove and store the shaft-
mounted gear unit after the tensioning
process.
Fig. 8-50: Tie-down lashing of the steel mats
1 Lashing belts
2 Tensioning device
► Additionally strap the steel mats with
lashing belts. To do so, primarily use
the reinforced lashing holes.
► If one steel mat package will only be
loaded on the front position, brace the
rear plug-in posts as well. Ensure that
the lashing belts are above the corners
of the load. Use edge protection
"Fig. 8-50: Tie-down lashing of the steel
.
mats", pg. 154)
INFO
The lashing belts can be pulled into the
front plug-in post before loading. Lashing
belts in the lateral plug-in posts can also
be pulled into the post sockets before in-
sertion. This allows for load securing from
the floor.
► Repeat the work steps for the rear
steel mat package. The plug-in posts
behind the front steel mat package are
used as a front stop.
ü
The steel mat packages are secured
with the Multi Steel system.
154
8.9.13 Using the Multi Grid system
KRONE trailers can be equipped with the
Multi Grid system.
Multi Grid is a strap net system for rear-
ward load securing that can be locked
across the entire load compartment width
1
using tension straps and strap ratchets
between the external beam and Multi Lock
external frame
Lock external frame", pg. 138)
2
Fig. 8-51:
The Multi Grid system can be moved
lengthwise within a post section via sliding
rails.
Securing the load with the Multi Grid
system
(see
Fig. 8-52:
► Hook the strap net onto the upper
Operating instructions • Semitrailer • 505369471-04 • 02/2019
(see "8.9.1 Using the Multi-
Multi Grid strap net
1
Clamping device
1 Upper strap
2 Clamping device
clamping devices.
.
